Levelflex FMP56, FMP57 FOUNDATION Fieldbus
Accessory Description
Mounting bracket for the
electronics housing
 32
A
B

Endress+Hauser

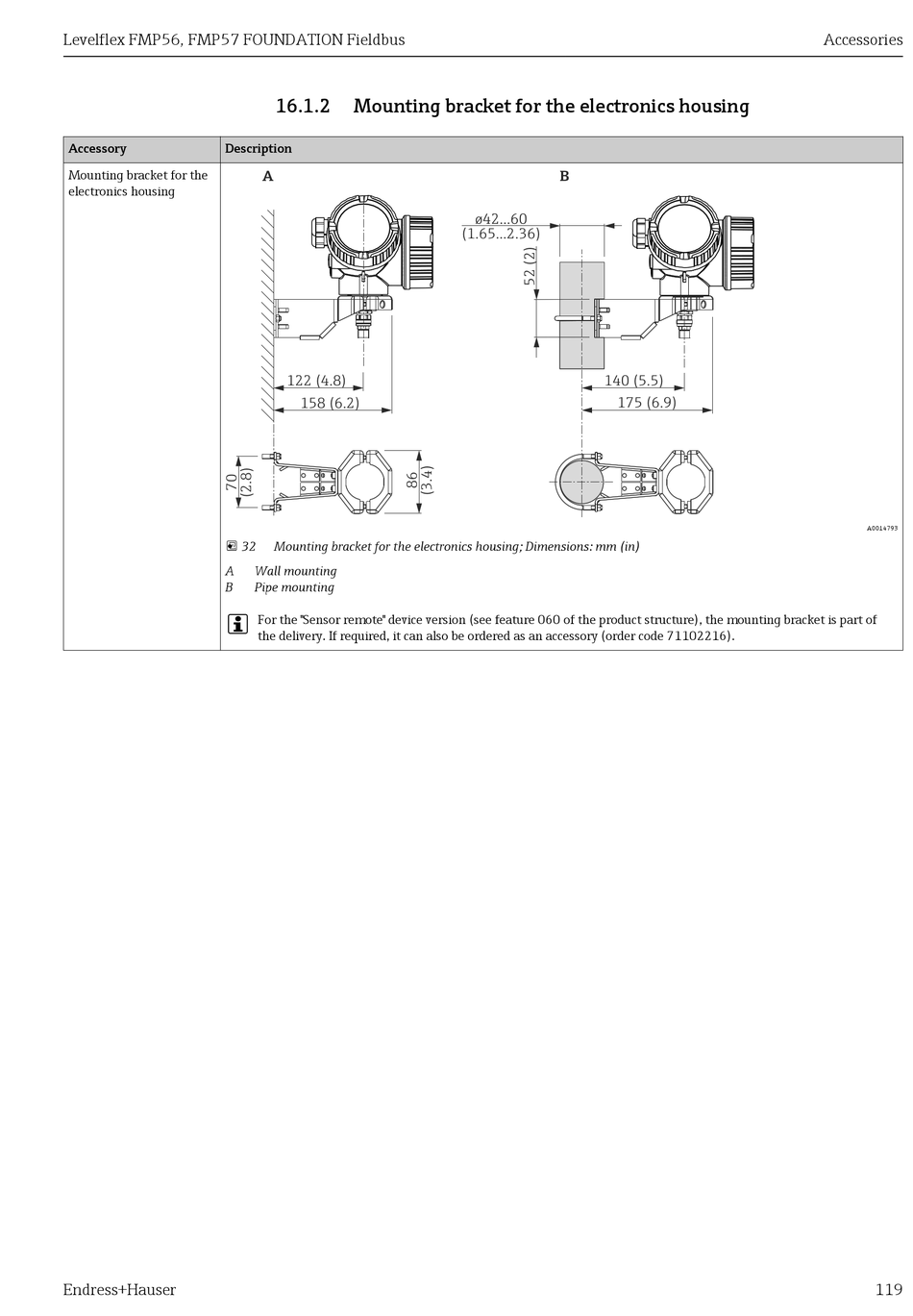

16.1.2 Mounting bracket for the electronics housing
A
122 (4.8)
158 (6.2)
Mounting bracket for the electronics housing; Dimensions: mm (in)
Wall mounting
Pipe mounting
For the "Sensor remote" device version (see feature 060 of the product structure), the mounting bracket is part of
the delivery. If required, it can also be ordered as an accessory (order code 71102216).
B
ø42...60
(1.65...2.36)
140 (5.5)
175 (6.9)
Accessories
A0014793
119
