Accessories
Accessory Description
Mounting bracket for the
electronics housing
 25
A
B

110

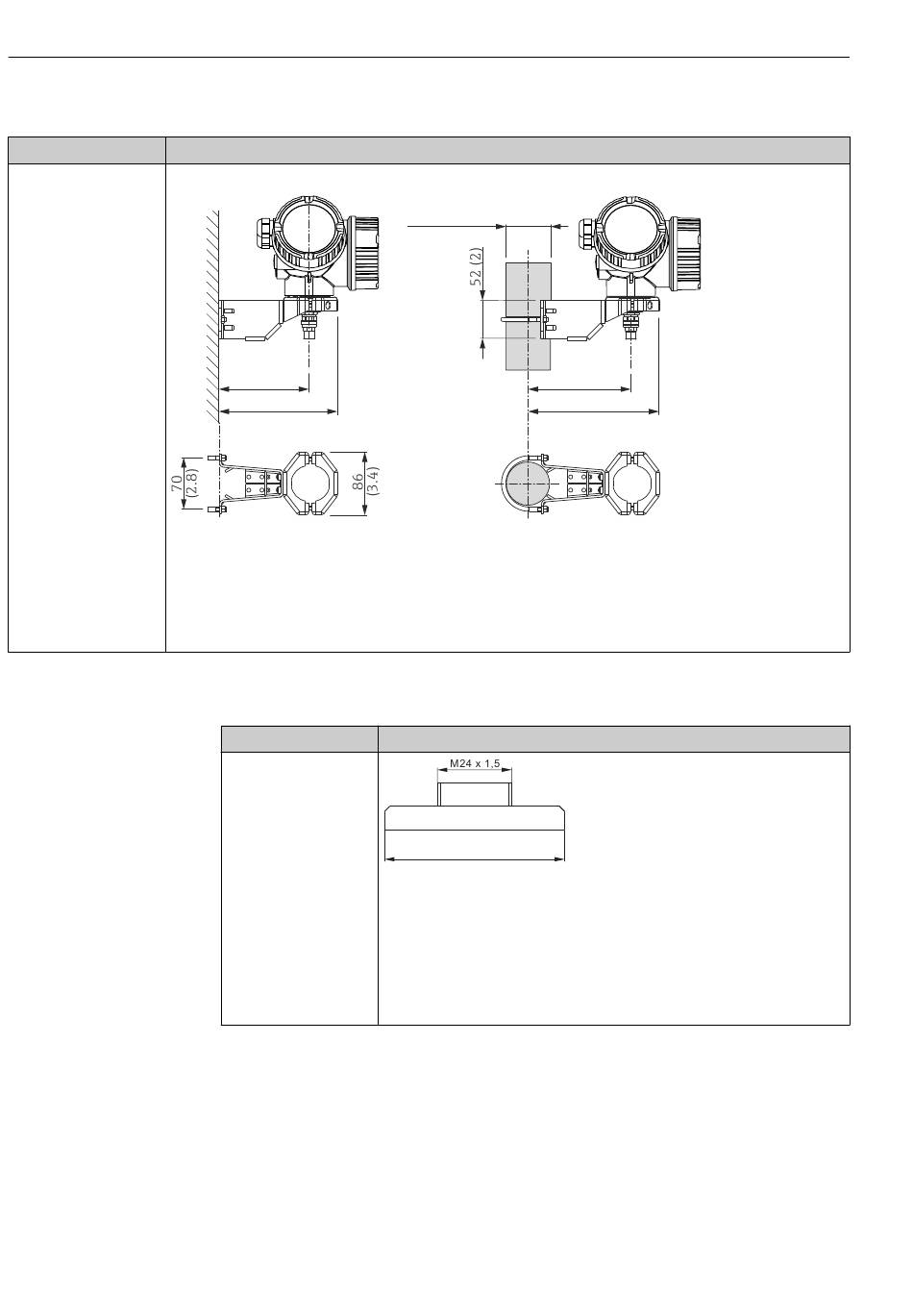

16.1.2 Mounting bracket for the electronics housing
A
122 (4.8)
158 (6.2)
Mounting bracket for the electronics housing; Dimensions: mm (in)
Wall mounting
Pipe mounting
For the "Sensor remote" device version (see feature 060 of the product structure), the mounting bracket is part of
the delivery. If required, it can also be ordered as an accessory (order code 71102216).
16.1.3

Weld-in adpater

Accessory
Weld-in adpater
M24 D65
B
ø42...60
(1.65...2.36)
140 (5.5)
Description
Ø 65 (2.56)
With M24x1.5 thread for flush-mounted sensors.
Material: 1.4435 (AISI 316L)
Weight: 0.22 kg (0.48 lbs)
Order No.
• Standard version: 71041381
• with 3.1 material certificate: 71041383
For details see Operating Instructions BA361F.
Levelflex FMP53 FOUNDATION Fieldbus
175 (6.9)
mm (inch)
A0014793
A0013588
