Levelflex FMP55 FOUNDATION Fieldbus
Endress+Hauser

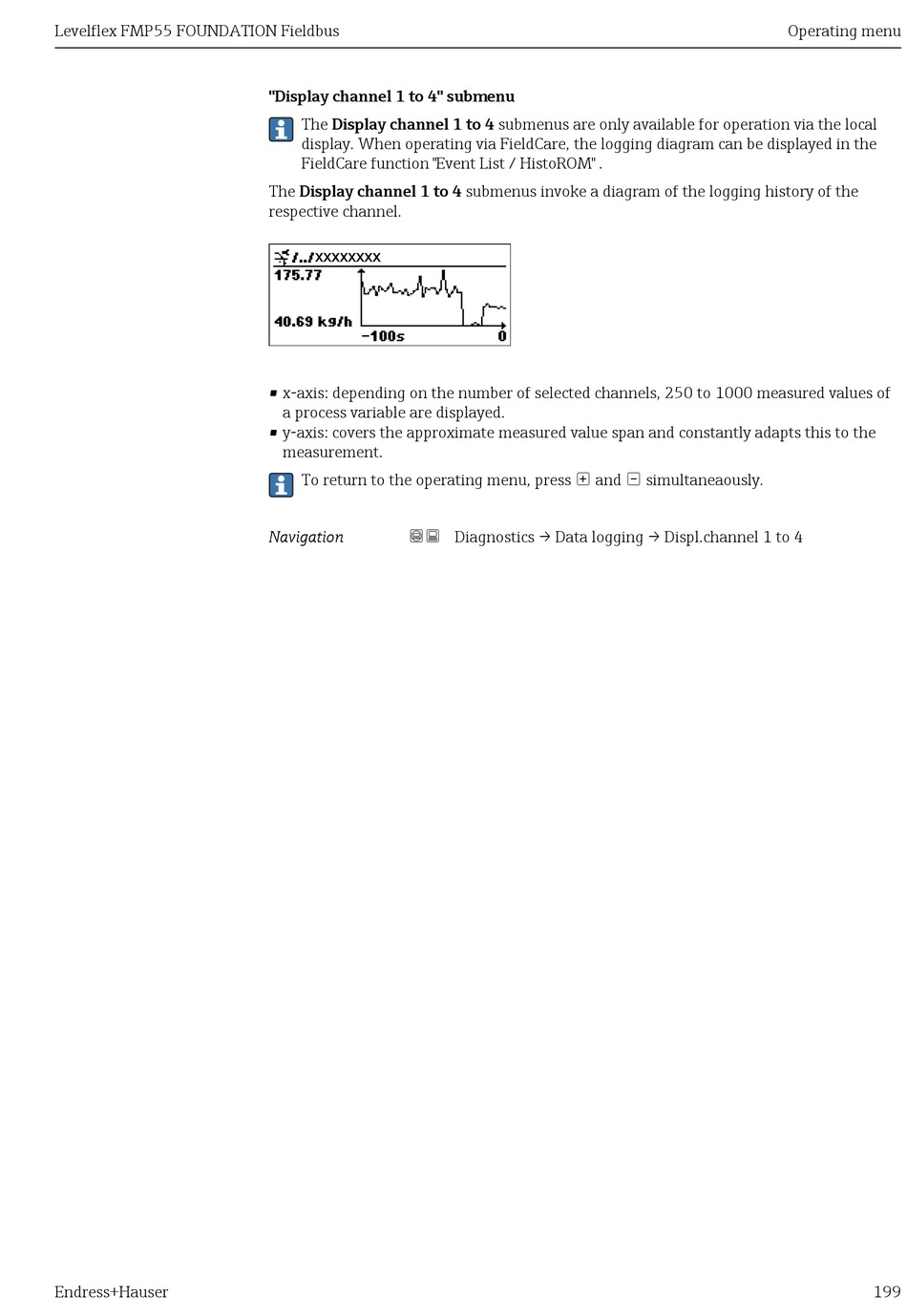

"Display channel 1 to 4" submenu
The Display channel 1 to 4 submenus are only available for operation via the local
display. When operating via FieldCare, the logging diagram can be displayed in the
FieldCare function "Event List / HistoROM" .
The Display channel 1 to 4 submenus invoke a diagram of the logging history of the
respective channel.
• x-axis: depending on the number of selected channels, 250 to 1000 measured values of
a process variable are displayed.
• y-axis: covers the approximate measured value span and constantly adapts this to the
measurement.
To return to the operating menu, press  and  simultaneaously.
Navigation  Diagnostics → Data logging → Displ.channel 1 to 4
Operating menu
199
