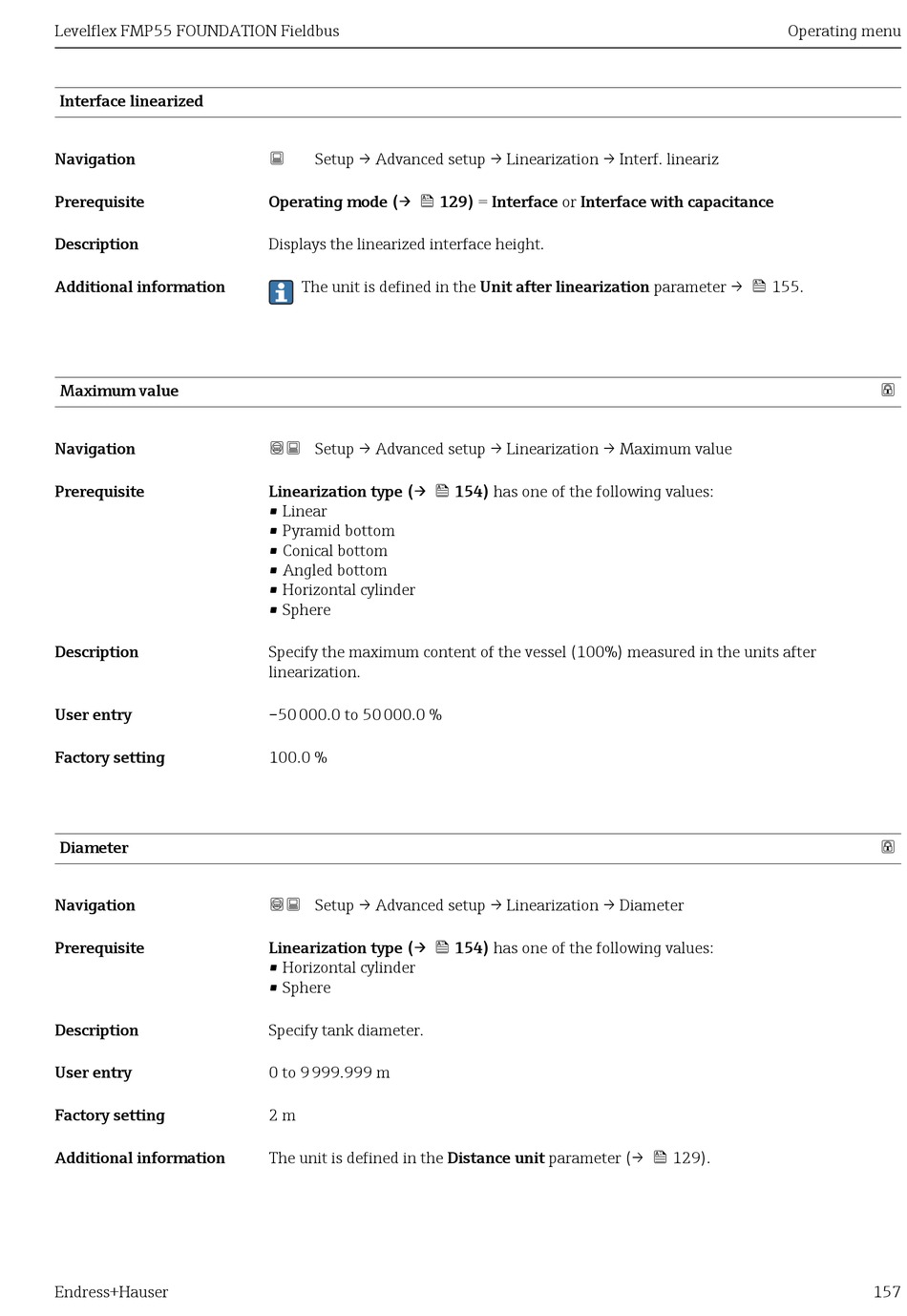

Levelflex FMP55 FOUNDATION Fieldbus
Interface linearized
Navigation
Prerequisite
Description
Additional information
Maximum value
Navigation
Prerequisite
Description
User entry
Factory setting
Diameter
Navigation
Prerequisite
Description
User entry
Factory setting
Additional information
Endress+Hauser
 Setup → Advanced setup → Linearization → Interf. lineariz
Operating mode (→  129) = Interface or Interface with capacitance
Displays the linearized interface height.
The unit is defined in the Unit after linearization parameter →  155.
 Setup → Advanced setup → Linearization → Maximum value
Linearization type (→  154) has one of the following values:
• Linear
• Pyramid bottom
• Conical bottom
• Angled bottom
• Horizontal cylinder
• Sphere
Specify the maximum content of the vessel (100%) measured in the units after
linearization.
–50 000.0 to 50 000.0 %
100.0 %
 Setup → Advanced setup → Linearization → Diameter
Linearization type (→  154) has one of the following values:
• Horizontal cylinder
• Sphere
Specify tank diameter.
0 to 9 999.999 m
2 m
The unit is defined in the Distance unit parameter (→  129).
Operating menu


157
