Levelflex FMP55 FOUNDATION Fieldbus
Endress+Hauser
A
C
r = 100 (4)
min

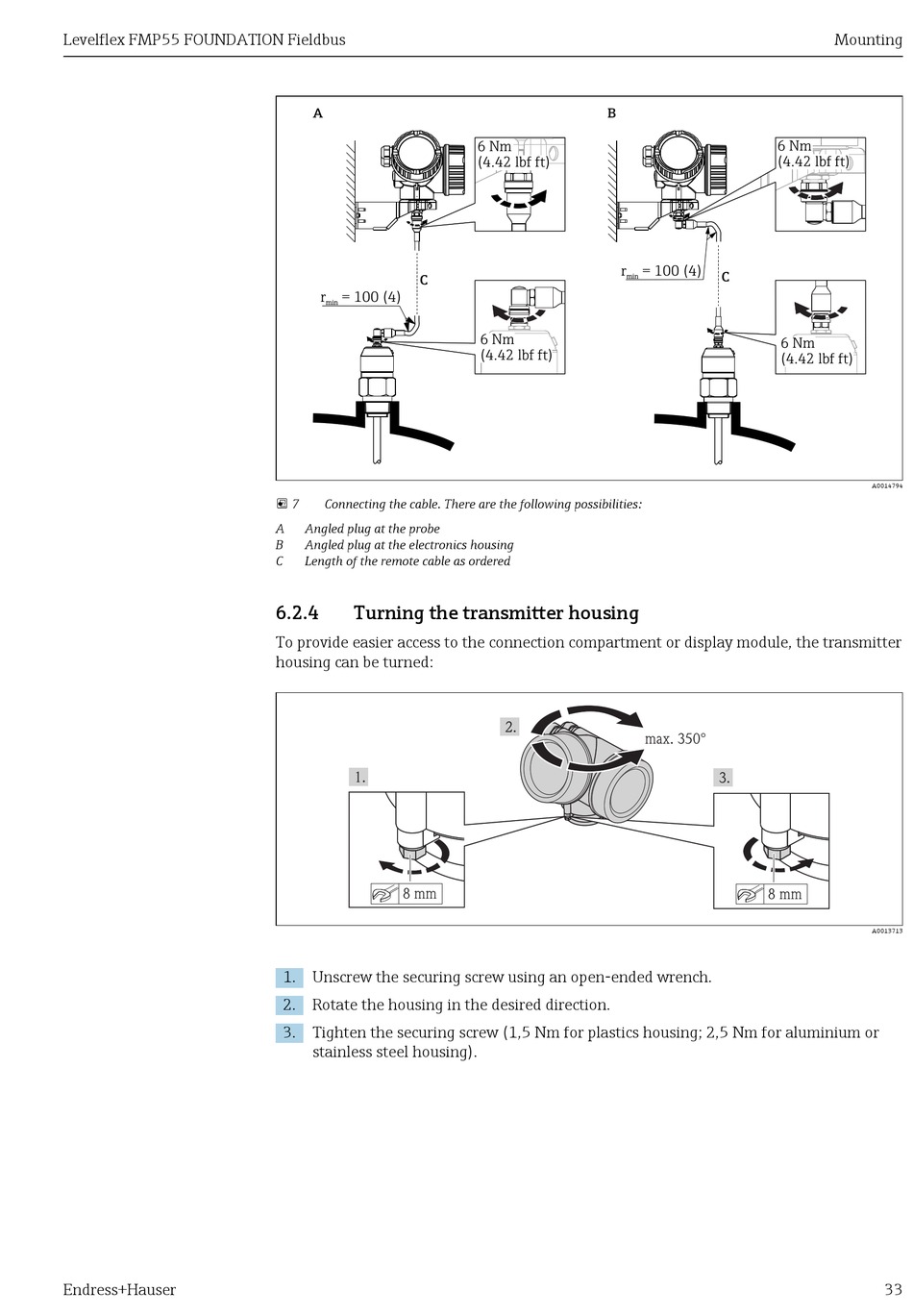

 7 Connecting the cable. There are the following possibilities:
A Angled plug at the probe
B Angled plug at the electronics housing
C Length of the remote cable as ordered
6.2.4

Turning the transmitter housing

To provide easier access to the connection compartment or display module, the transmitter
housing can be turned:
8 mm
1. Unscrew the securing screw using an open-ended wrench.
2. Rotate the housing in the desired direction.
3. Tighten the securing screw (1,5 Nm for plastics housing; 2,5 Nm for aluminium or
stainless steel housing).
B
6 Nm
(4.42 lbf ft)
r = 100 (4)
min
6 Nm
(4.42 lbf ft)
max. 350°
Mounting
6 Nm
(4.42 lbf ft)
C
6 Nm
(4.42 lbf ft)
A0014794
8 mm
A0013713
33
