"Linearization" submenu
L
1
I

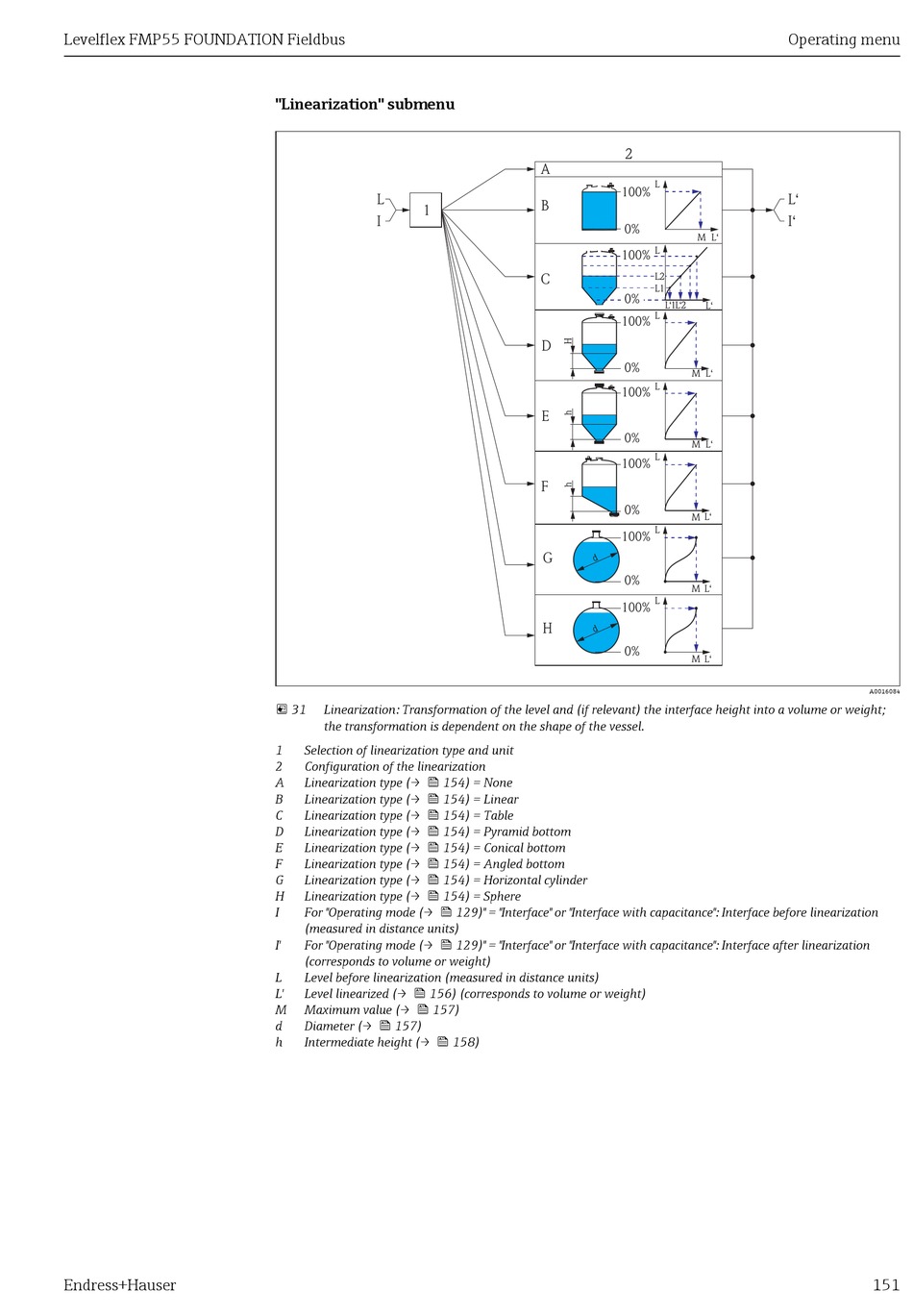

 31 Linearization: Transformation of the level and (if relevant) the interface height into a volume or weight;
the transformation is dependent on the shape of the vessel.
1 Selection of linearization type and unit
2 Configuration of the linearization
A Linearization type (→  154) = None
B Linearization type (→  154) = Linear
C Linearization type (→  154) = Table
D Linearization type (→  154) = Pyramid bottom
E Linearization type (→  154) = Conical bottom
F Linearization type (→  154) = Angled bottom
G Linearization type (→  154) = Horizontal cylinder
H Linearization type (→  154) = Sphere
I For "Operating mode (→  129)" = "Interface" or "Interface with capacitance": Interface before linearization
(measured in distance units)
I' For "Operating mode (→  129)" = "Interface" or "Interface with capacitance": Interface after linearization
(corresponds to volume or weight)
L Level before linearization (measured in distance units)
L' Level linearized (→  156) (corresponds to volume or weight)
M Maximum value (→  157)
d Diameter (→  157)
h Intermediate height (→  158)
2
A
L
100%
B
0%
M
L'
L
100%
L2
C
L1
0%
L'1L'2 L'
L
100%
D
0%
M L'
L
100%
E
0%
M L'
L
100%
F
0%
M L'
L
100%
G
0%
M L'
L
100%
H
0%
M L'
