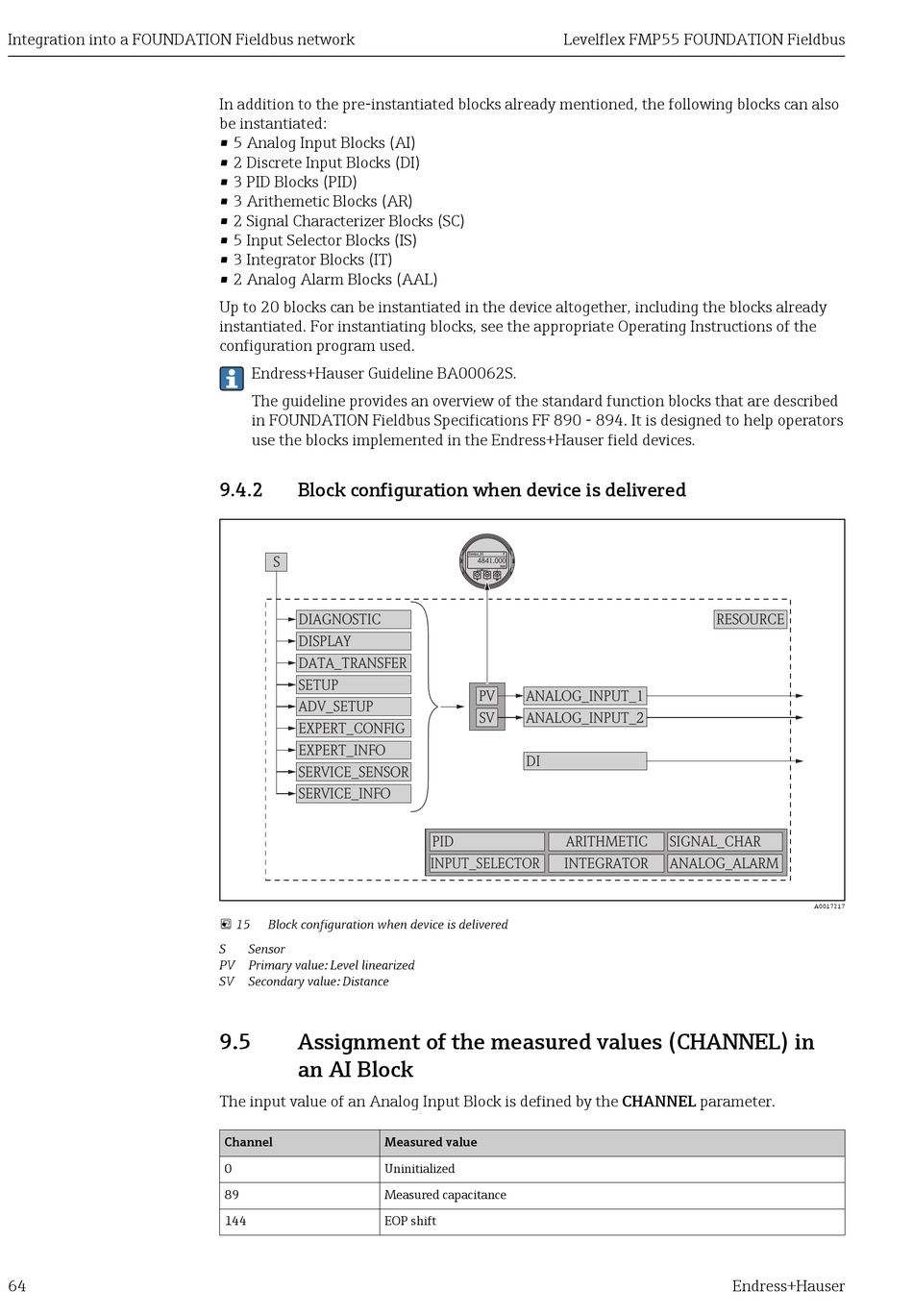

Integration into a FOUNDATION Fieldbus network
64
In addition to the pre-instantiated blocks already mentioned, the following blocks can also
be instantiated:
• 5 Analog Input Blocks (AI)
• 2 Discrete Input Blocks (DI)
• 3 PID Blocks (PID)
• 3 Arithemetic Blocks (AR)
• 2 Signal Characterizer Blocks (SC)
• 5 Input Selector Blocks (IS)
• 3 Integrator Blocks (IT)
• 2 Analog Alarm Blocks (AAL)
Up to 20 blocks can be instantiated in the device altogether, including the blocks already
instantiated. For instantiating blocks, see the appropriate Operating Instructions of the
configuration program used.
Endress+Hauser Guideline BA00062S.
The guideline provides an overview of the standard function blocks that are described
in FOUNDATION Fieldbus Specifications FF 890 - 894. It is designed to help operators
use the blocks implemented in the Endress+Hauser field devices.
9.4.2

Block configuration when device is delivered

S
DIAGNOSTIC
DISPLAY
DATA_TRANSFER
SETUP
ADV_SETUP
EXPERT_CONFIG
EXPERT_INFO
SERVICE_SENSOR
SERVICE_INFO
 15 Block configuration when device is delivered
S Sensor
PV Primary value: Level linearized
SV Secondary value: Distance
9.5 Assignment of the measured values (CHANNEL) in
an AI Block
The input value of an Analog Input Block is defined by the CHANNEL parameter.
Channel Measured value
0 Uninitialized
89 Measured capacitance
144 EOP shift
Levelflex FMP55 FOUNDATION Fieldbus
Device_01 F
4841.000
mm
ESC
E
PV ANALOG_INPUT_1
SV ANALOG_INPUT_2
DI
PID ARITHMETIC
INPUT_SELECTOR INTEGRATOR
RESOURCE
SIGNAL_CHAR
ANALOG_ALARM
A0017217
