Commissioning (block-based operation)
86
R
D
L
D
I
UP
LN
L
L
L
I

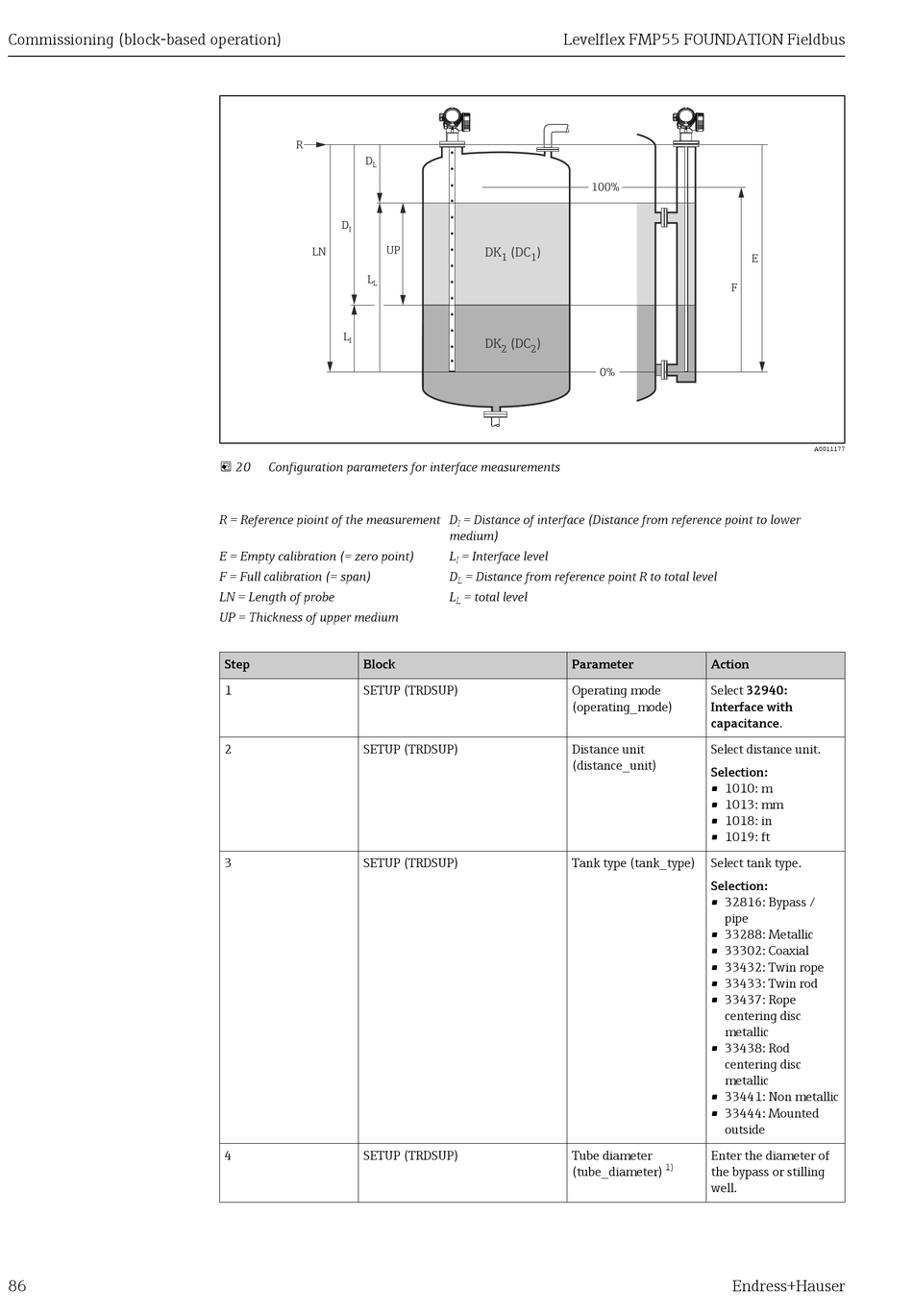

 20 Configuration parameters for interface measurements
R = Reference pioint of the measurement D
E = Empty calibration (= zero point)
F = Full calibration (= span)
LN = Length of probe
UP = Thickness of upper medium
Step Block
1 SETUP (TRDSUP)
2 SETUP (TRDSUP)
3 SETUP (TRDSUP)
4 SETUP (TRDSUP)
Levelflex FMP55 FOUNDATION Fieldbus
100%
DK ( DC )
1 1
DK (DC )
2 2
0%
= Distance of interface (Distance from reference point to lower
I
medium)
L = Interface level
I
D = Distance from reference point R to total level
L
L = total level
L
Parameter
Operating mode
(operating_mode)
Distance unit
(distance_unit)
Tank type (tank_type)
Tube diameter
(tube_diameter)
E
F
A0011177
Action
Select 32940:
Interface with
capacitance.
Select distance unit.
Selection:
• 1010: m
• 1013: mm
• 1018: in
• 1019: ft
Select tank type.
Selection:
• 32816: Bypass /
pipe
• 33288: Metallic
• 33302: Coaxial
• 33432: Twin rope
• 33433: Twin rod
• 33437: Rope
centering disc
metallic
• 33438: Rod
centering disc
metallic
• 33441: Non metallic
• 33444: Mounted
outside
Enter the diameter of
1)
the bypass or stilling
well.
