1 Installation

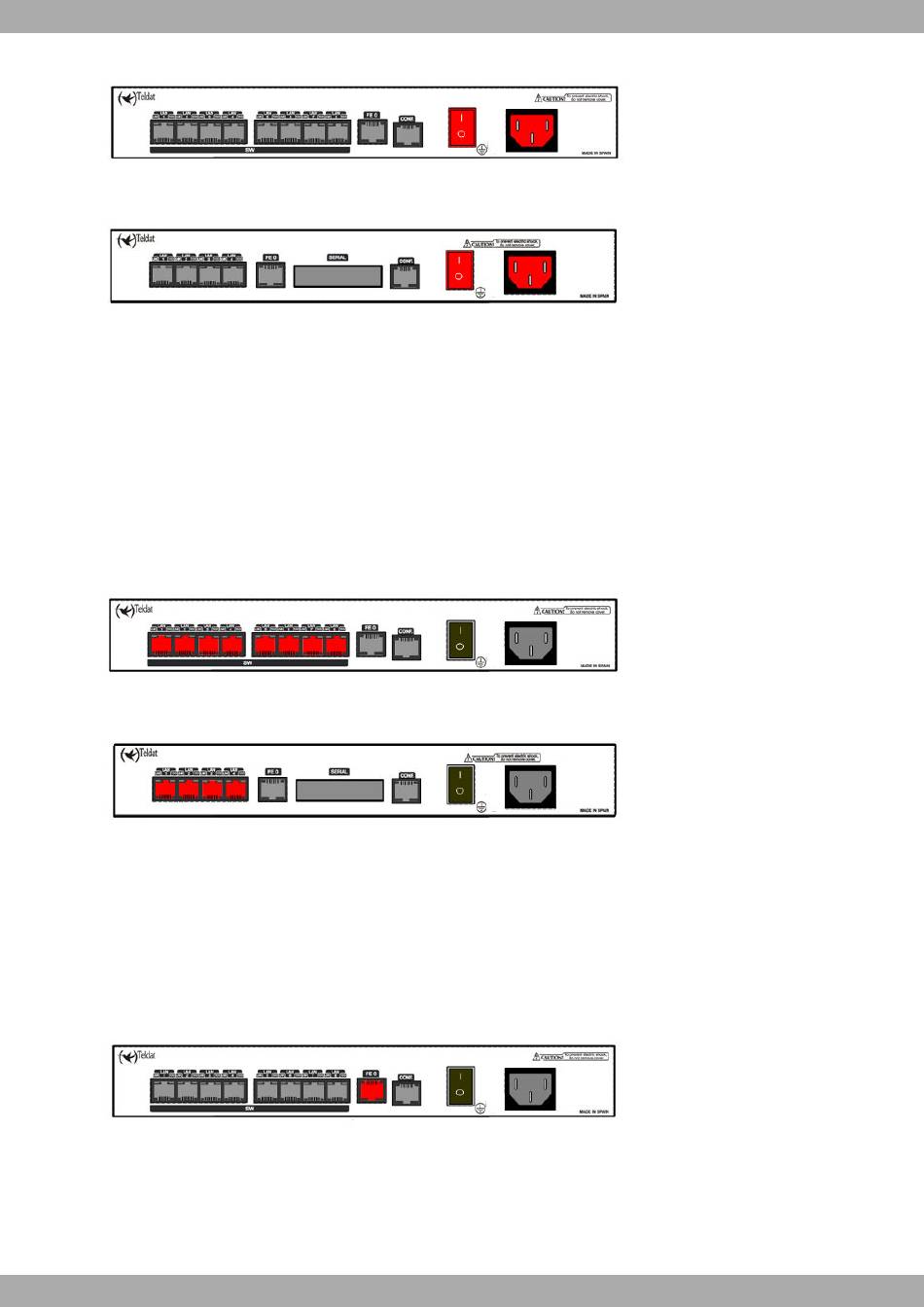

Fig. 3: T200G Power connection and switch
Fig. 4: T200 Power connection and switch

1.2.2 Data Connections

The Teldat T200 is equipped with the following connectors (although some of these may not be available depending
on the model):
SWITCH:
The Teldat T200 incorporates a 4 or 8 port Switch 10/100BaseT with automatic MDI/MDIX for LAN (local area net-
work) connection. It also has a LED indicating connectivity.
Please pay close attention to the labelling to avoid confusing the switch with other port types.
Fig. 5: T200G 8 port Switch (LAN)
Fig. 6: T200 4 port Switch (LAN)
FE 0:
The Teldat T200 has one female RJ45 connector in order to connect to the Ethernet 10BaseT / 100BaseT networks
through shielded twisted pairs (STP) or unshielded (UTP) cables.
Depending on the design of the network, the connection is carried out through a HUB or directly to another terminal
device Ethernet interface through a crossover cable (please consult your supplier for information on crossover Ether-
net cables).
Fig. 7: T200G Fast Ethernet Port (FE 0)
