Polycom 3150-16966-002 User Manual page 135

Chapter 14 – RMX Utilities

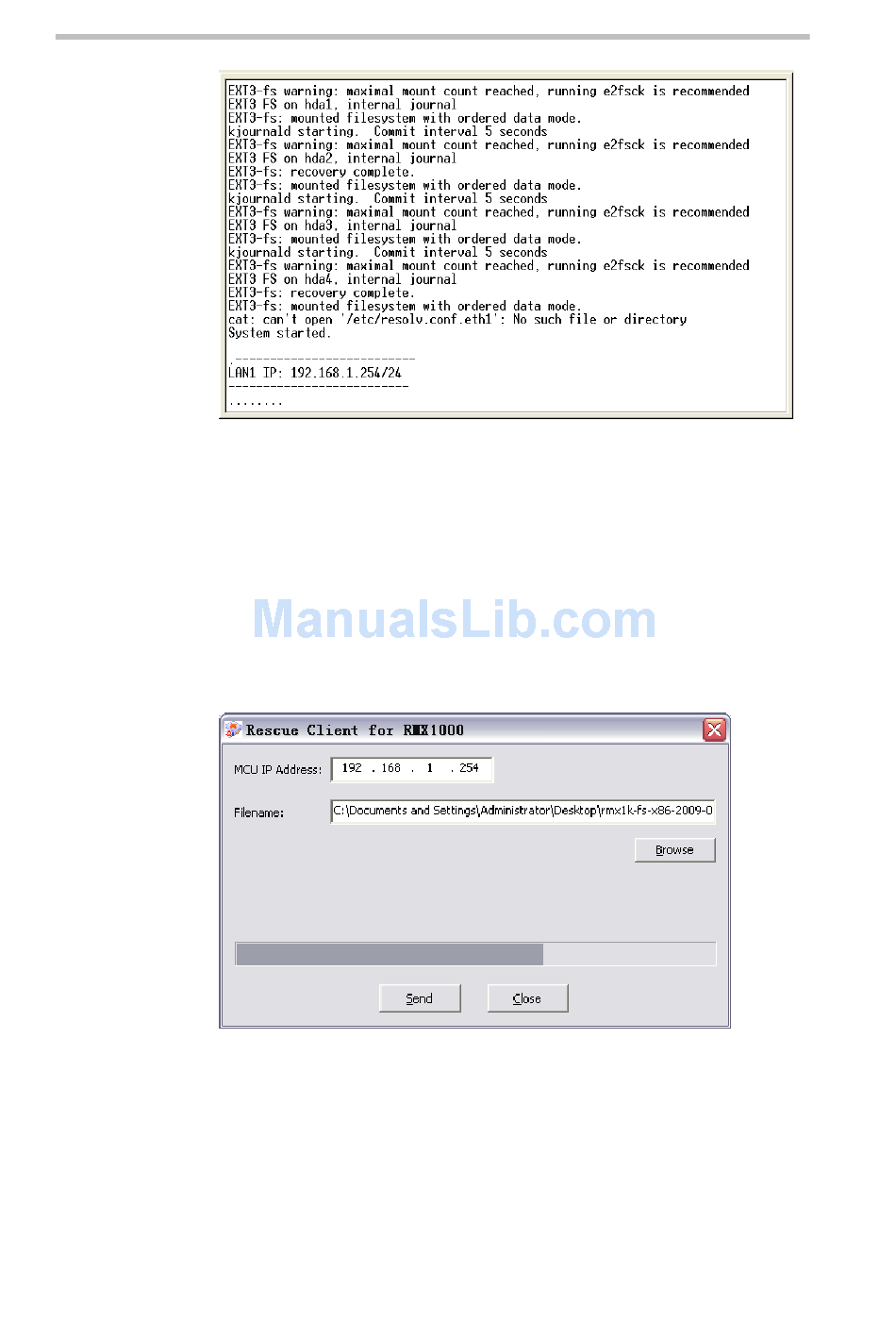

Figure 14-20
To use the RMX 1000 Rescue tool to reload software packages:
1
2
3
Figure 14-21
4
5
6
14-18
Console Interface –Booting into the Rescue Mode
In the PC used for uploading the software packages, run the RMX 1000
Rescue utility in the CD provided with the product. Please make sure the
PC can communicate with RMX 1000.
In the Rescue Client for RMX 1000 interface, input the MCU IP address
and then click Browse button to select Kernel System package (.ppm) in
the folder where Version 2.1 files are saved.
Click Send, the progress bar will appear indicating the uploading
progress if the PC is establishing a connection with the MCU.
Uploading Package
When prompted whether to restart the system, click NO to upload the
other package.
Continue to upload the File System package as described in Step 2 and
Step 3.
When prompted whether to restart the system, click Yes to complete the
upgrade.
