GE MEDICAL SYSTEMS
REV 3
3–5 OPTIONAL PERIPHERALS
3–5–1 Peripherals/Accessories Connector Panel
LOGIQ α200 peripherals and accessories can be properly connected using the rear connector panel.
Located on the panel are video input and output connectors, camera expose connector, foot switch connector,
power connector and service tools.
This section indicates the pin assignment for each connector (1 – 4 in ILLUSTRATION 3–2) at pages 3–6 through 3–7.
The optional ECG connector is available only for the console with the system software version
2.00 or later.
1
Note

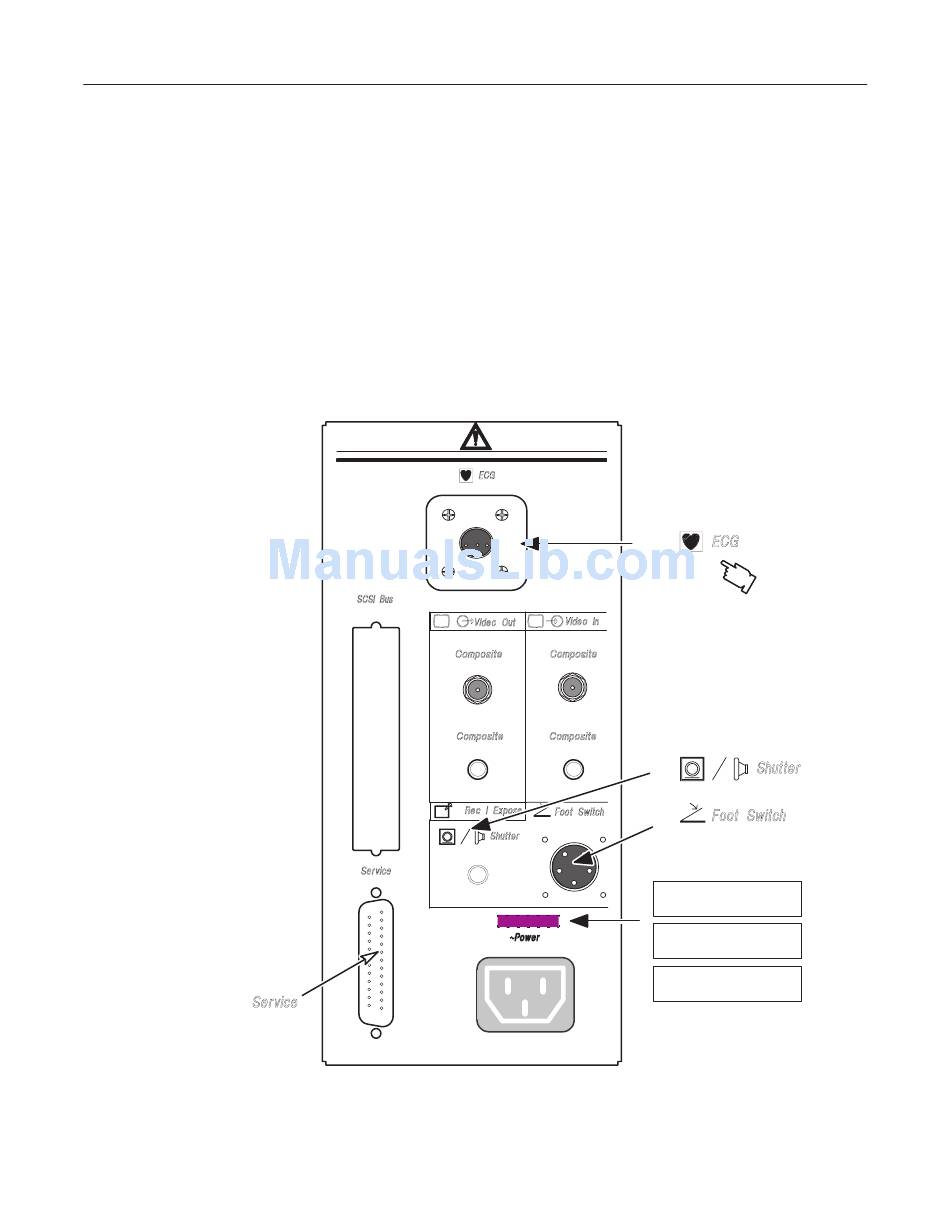

REAR CONNECTOR PANEL
ILLUSTRATION 3–2
3–5
LOGIQ α200 SERVICE MANUAL
2138853
4
3
2
115V 1.7A Max
including front panel
100V 2.0A Max
including front panel
220–240V 0.8A Max
including front panel
SYSTEM CONFIGURATION
