CRT Filter(FRU No. 102)

Time Required
2 Minutes
Tool Required
Not necessary
Procedure
Refer to ILLUSTRATION 6–9.
1.
Turn OFF the system.
2.
Push the two Filter Clamp Assy inward (1) as shown in ILLUSTRATION 6–9 and remove Filter Clamp Assy.
3.
Pull forward CRT Filter.
1
1
106 Clamp Set

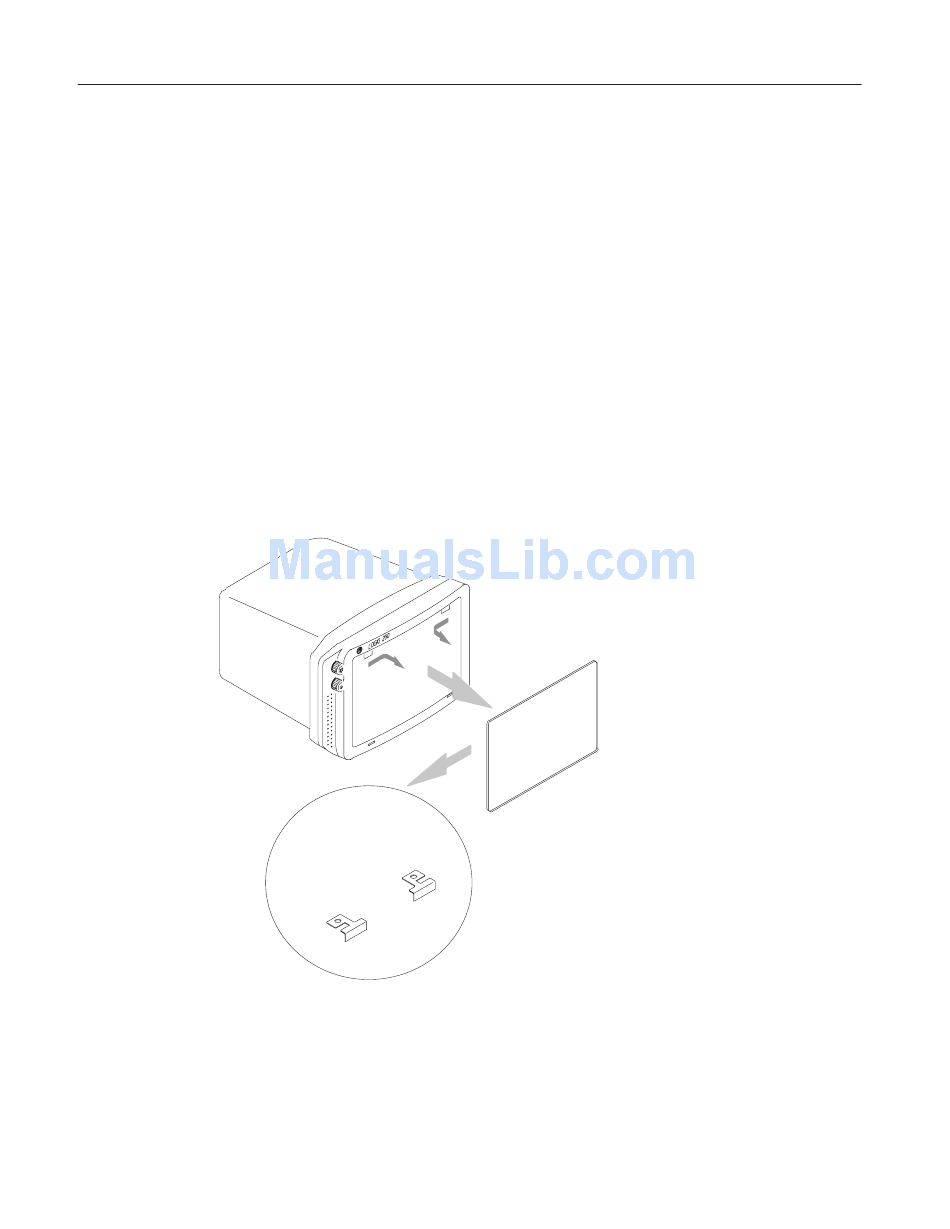

CRT FILTER DISASSEMBLY
ILLUSTRATION 6–9
6–27
LOGIQ α200 SERVICE MANUAL
102 CRT Filter
RENEWAL PARTS
2138853
