2–2–6 MTZ Probe Holder Installation (Option) (Continued)
2. After removing the Keyboard Assy (Refer to 6–2–10, 6–2 DISASSEMBLY/RE-ASSEMBLY), Assemble the
MTZ probe holder at the left side of keyboard by screwing four (1 – 4) screws as shown in
ILLUSTRATION 2–6.
2
1
4
3

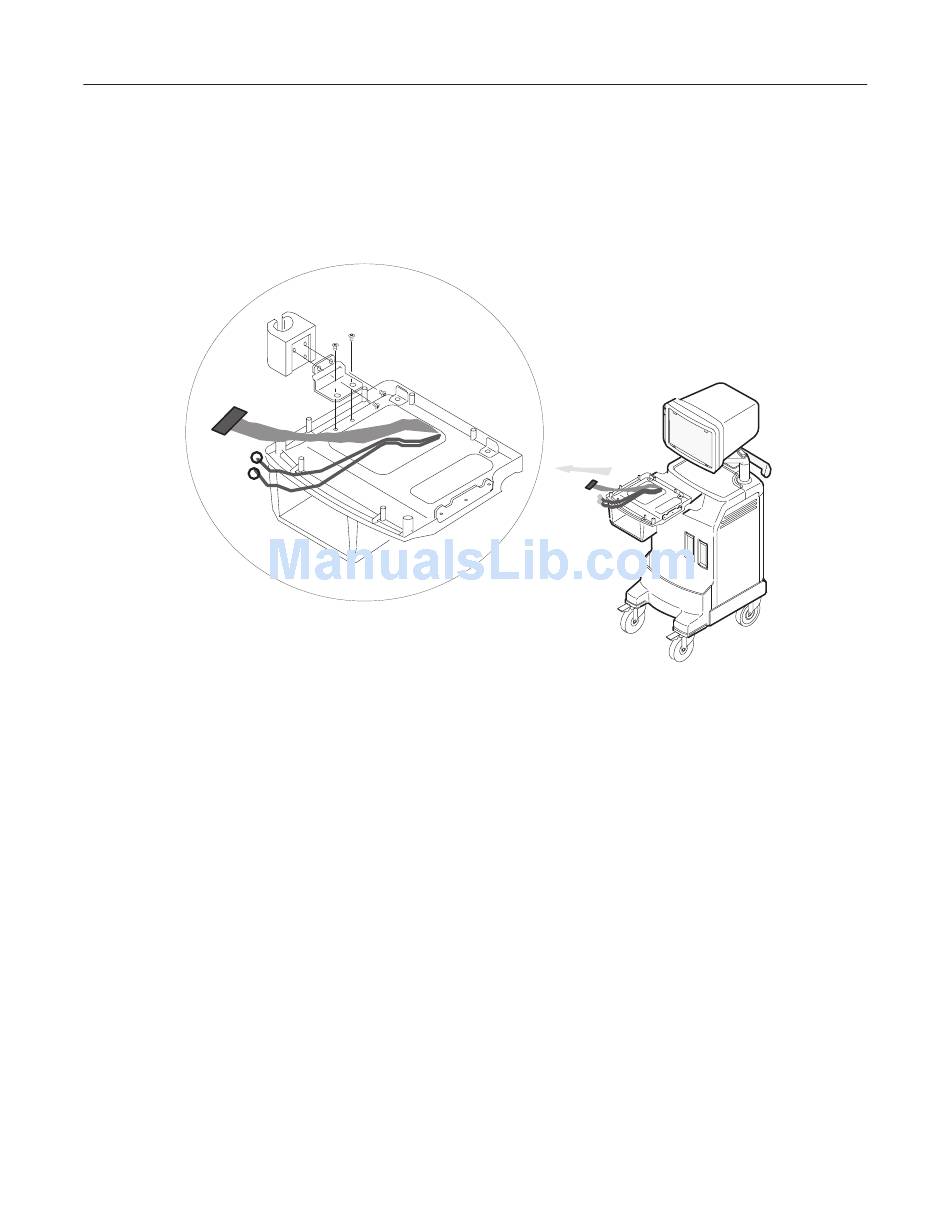

MTZ PROBE HOLDER INSTALLATION (2)
ILLUSTRATION 2–6
