6–2–27 Left Cover (FRU No. 404)
Time Required
5 Minutes
Tool Required
Screwdriver
Procedure
Refer to ILLUSTRATION 6–33.
1. Turn OFF the system.
2.
Remove four screw caps and unscrew four screws (1 – 4).
3.
Remove the Left Cover (FRU 404).
404 Left Cover
1
2
3
4

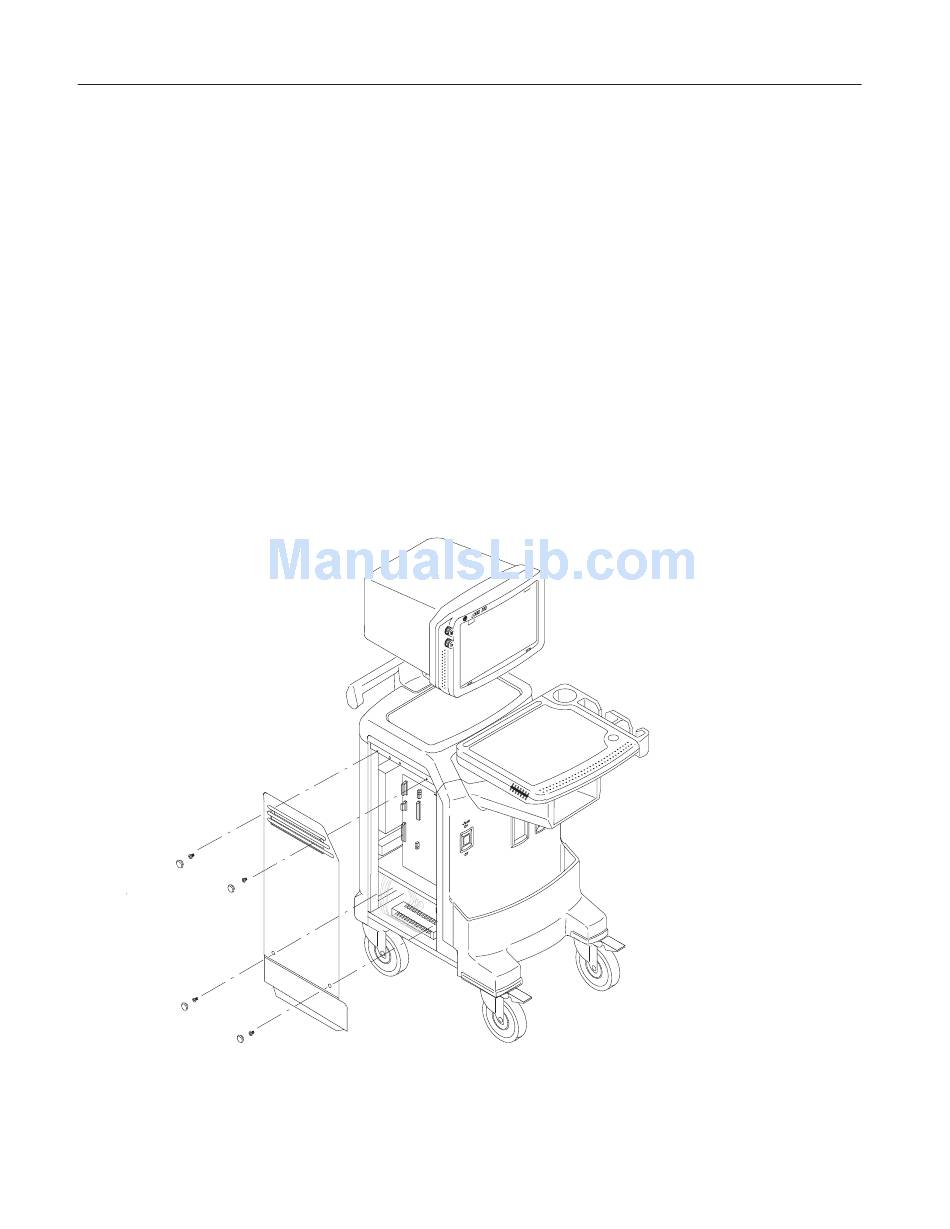

LEFT COVER DISASSEMBLY
ILLUSTRATION 6–33
