Pcb Guide Assy (Fru No. 422) - GE Medical Systems LOGIQ ?200 Service Manual

GE MEDICAL SYSTEMS
REV 5
6–2–44 PCB Guide Assy (FRU No. 422)
Time Required
5 Minutes
Tool Required
Screwdriver
Procedure
Refer to ILLUSTRATION 6–34.
1. Turn OFF the system.
2.
Remove the Right Cover(FRU 405). Refer to 6–2–28.
3.
Unscrew four screws (1 – 4).
4.
Remove the PCB Guide Assy (FRU 422).
422 PCB Guide Assy
1
4
PCB GUIDE DISASSEMBLY

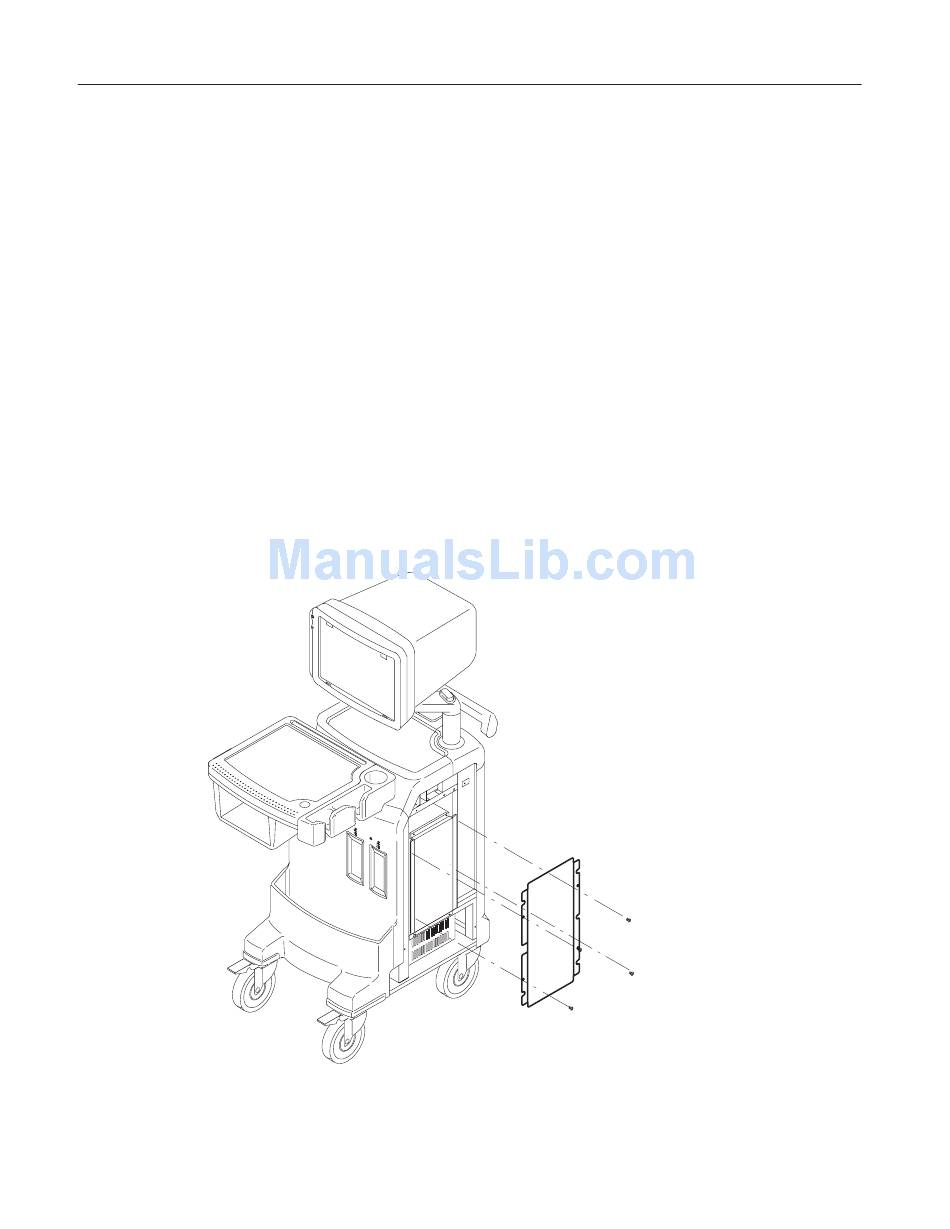

ILLUSTRATION 6–50
6–92
LOGIQ α200 SERVICE MANUAL
2138853
2
3
RENEWAL PARTS
