2–2–6 MTZ Probe Holder Installation (Option) (Continued)
1. Assemble the MTZ probe holder at the bottom of standard probe holder by screwing four (1 – 4) screws as
shown in ILLUSTRATION 2–5.

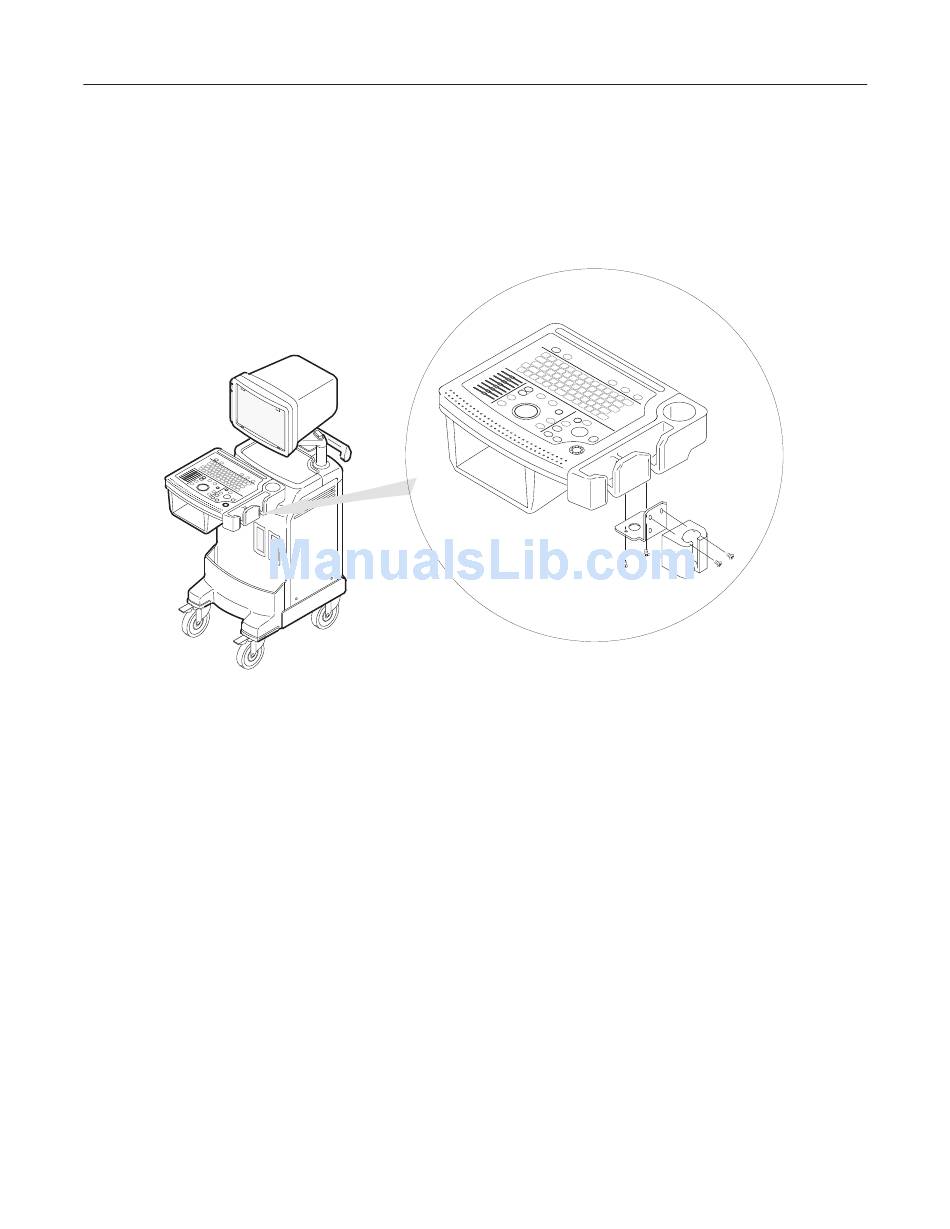

MTZ PROBE HOLDER INSTALLATION (1)
ILLUSTRATION 2–5
2–12
LOGIQ α200 SERVICE MANUAL
2
4
3
1
INSTALLATION
2138853
