GE MEDICAL SYSTEMS
REV 4
6–2–2

Pot Set Assy (FRU No. 101)

Time Required
6 Minute
Tool Required
Screwdriver
Soldering Iron
Procedure
Refer to ILLUSTRATION 6–8.
1.
Turn OFF the system.
2.
Remove the Monitor Cover Set. Refer to 6–2–4.
3.
Remove two Potientiometer Knob and unscrew two hexagonal nuts on each Pot.
4.
Remove the wire from PCB with Soldering Iron.
5.
Remove the Pot Set Assy.

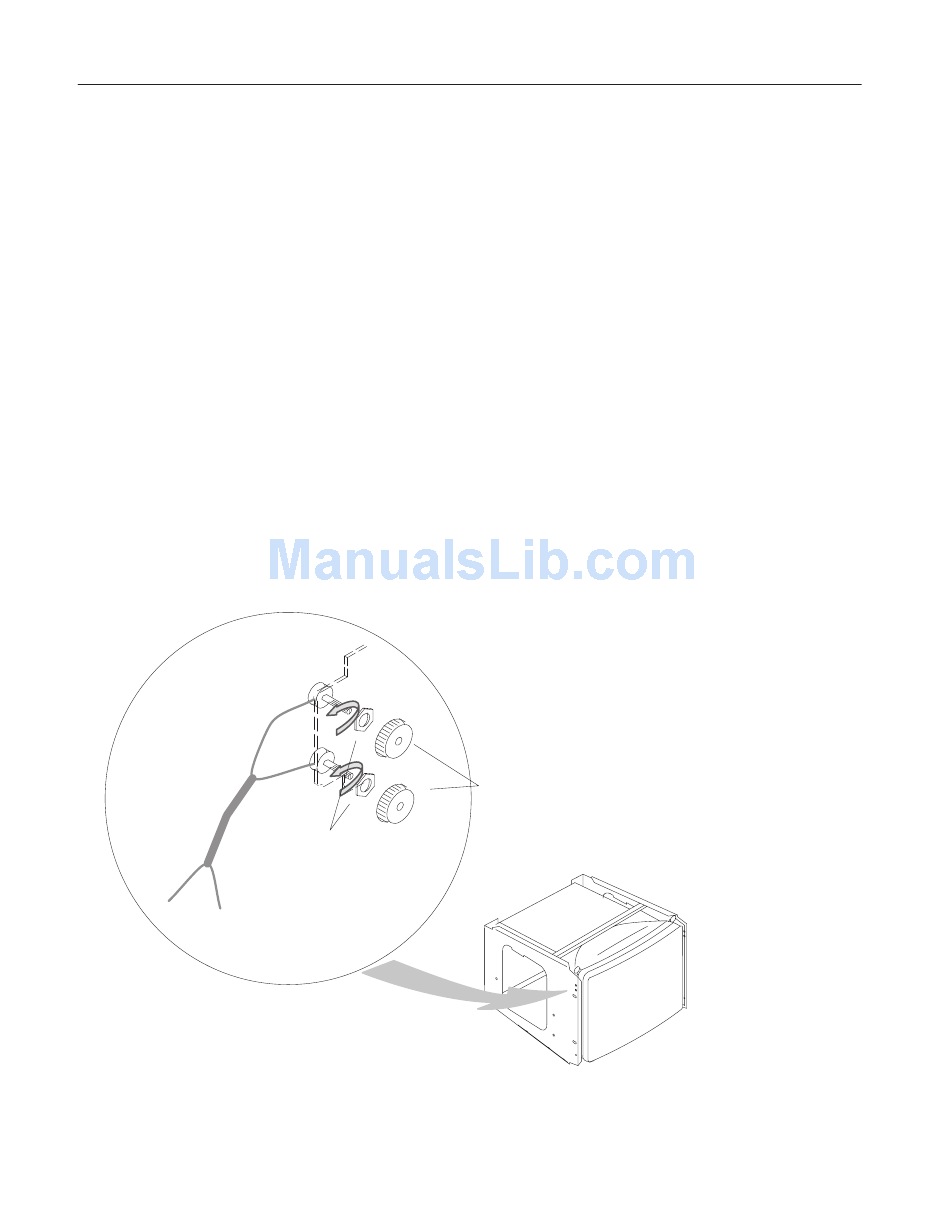

Hexagonal Nut
POT SET DISASSEMBLY
ILLUSTRATION 6–8
6–26
LOGIQ α200 SERVICE MANUAL
101 Pot Set Assy
Potientiometer Knob
2138853
RENEWAL PARTS
