6–2–12 TGC Assy (FRU No. 206)
Time Required
8 Minutes
Tool Required
Screwdriver
Procedure
Refer to ILLUSTRATION 6–18.
1.
Turn OFF the system.
2.
Pull the Keyboard Assy out with KB Cover Top Assy. Refer to 6–2–10.
3.
Pull out the TGC Knobs (5 – 12) on Keyboard Assy.
4.
Unscrew four screws (1 – 4) and disconnect one connect (CN2).
5.
Remove TGC Assy.
1 2
3
4
CN1
CN2
CN6
TGC Knob
11
9 12
7
10
5
8
6

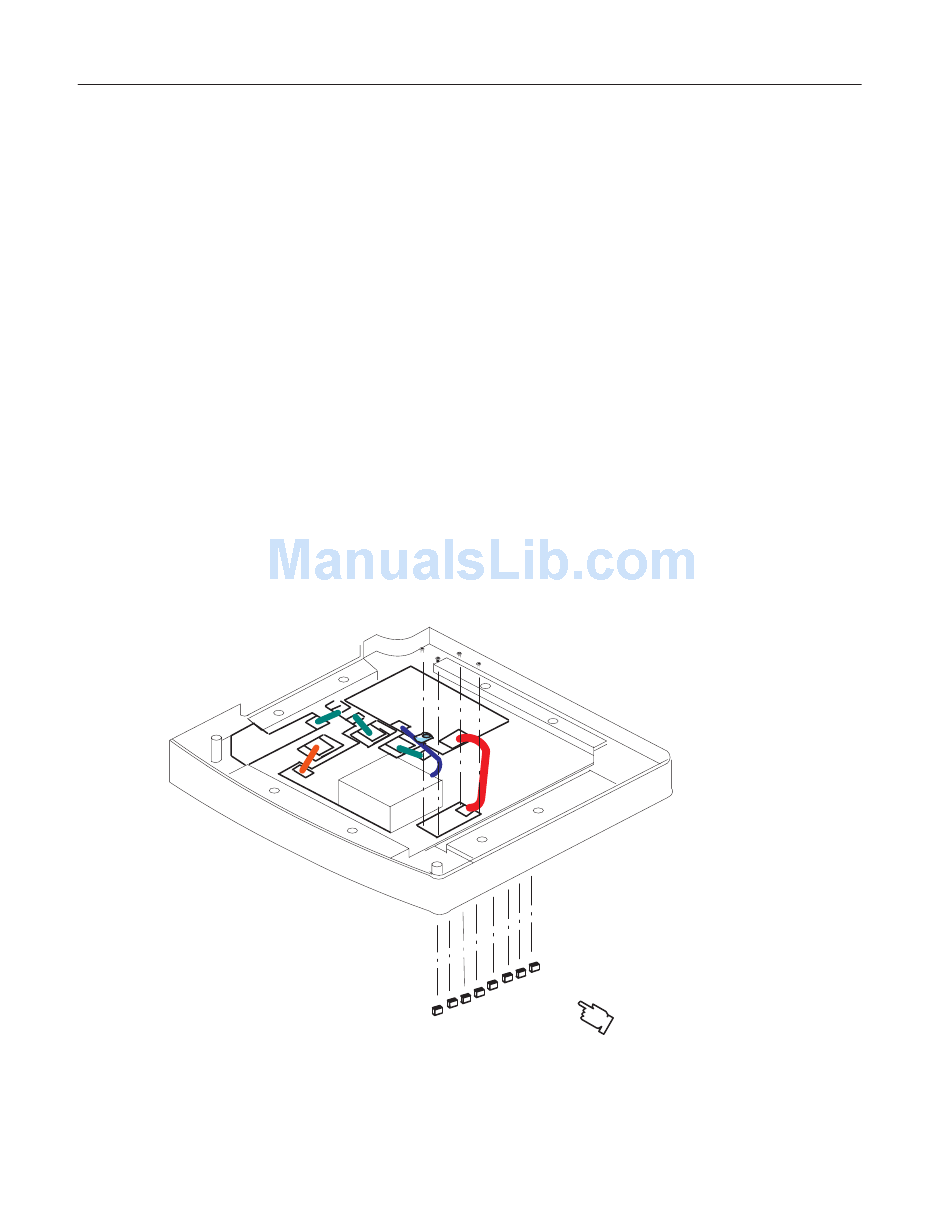

KEYBOARD ASSY DISASSEMBLY
ILLUSTRATION 6–18
6–39
LOGIQ α200 SERVICE MANUAL
2138853
RENEWAL PARTS
