Holder Bracket Assy (Fru No. 202) - GE Medical Systems LOGIQ ?200 Service Manual

GE MEDICAL SYSTEMS
REV 4
6–2–8

Holder Bracket Assy (FRU No. 202)

Time Required
3 Minutes
Tool Required
Screwdriver
Procedure
Refer to ILLUSTRATION 6–14.
1.
Turn OFF the system.
2.
Remove the Probe Holder (FRU No. 201). Refer to 6–2–7.
3.
Unscrew three screws (1 – 3).
4.
Remove the Holder Bracket Assy.

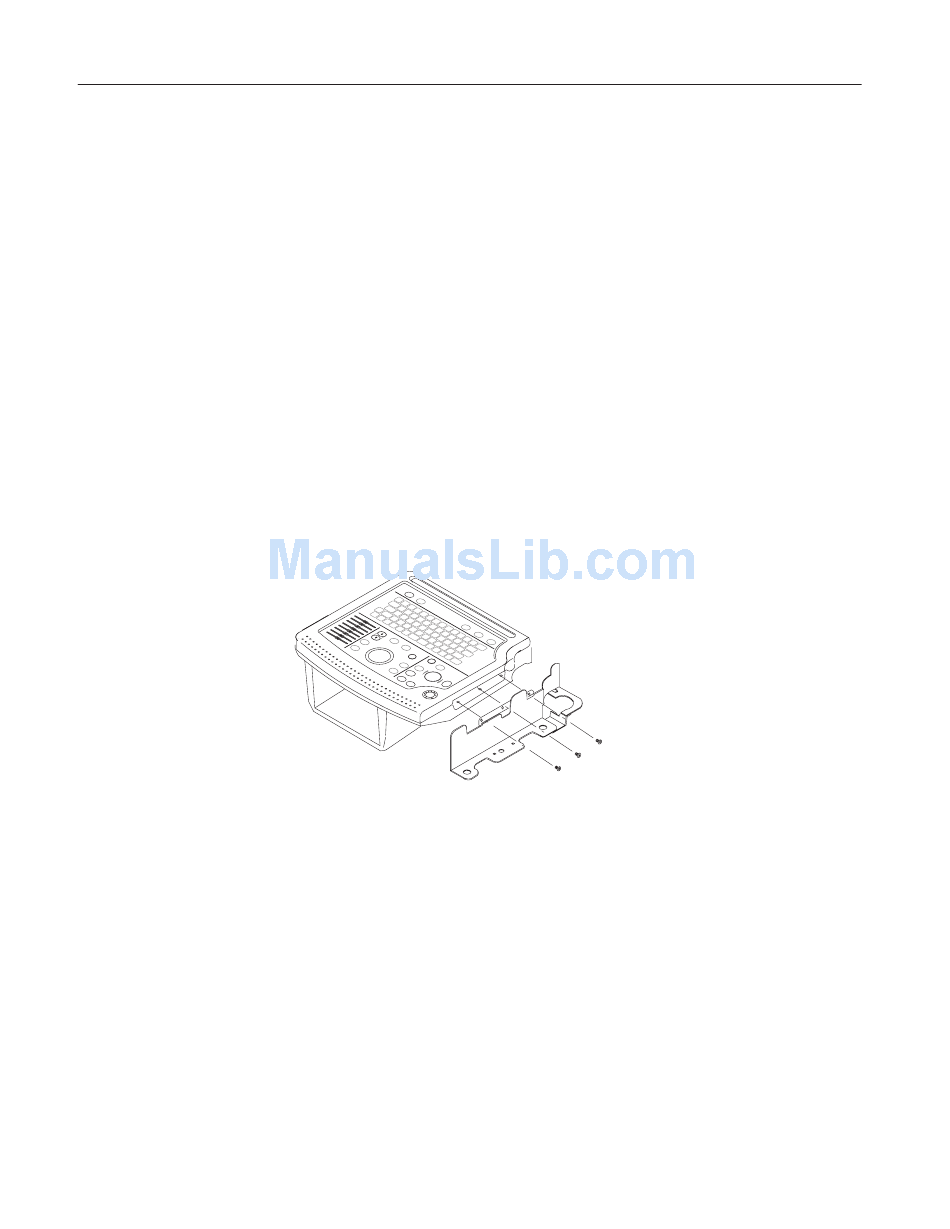

HOLDER BRACKET ASSY DISASSEMBLY
ILLUSTRATION 6–14
6–32
LOGIQ α200 SERVICE MANUAL
202 Holder Bracket Assy
3
2
1
RENEWAL PARTS
2138853
