6–2–49 Circuit Breaker Set (FRU No. 505)
Time Required
30 Minutes
Tool Required
Screwdriver
Procedure
Do NOT unplug the power cord before OFF the power switch.
Refer to ILLUSTRATION 6–54.
1. Turn OFF the system & unplug the power cord from the outlet.
2.
Remove the Power Trans Assy (FRU 504). Refer to 6–2–48.
3.
Unscrew four screws (1 – 4)on the front of Power Trans Assy. Refer to ILLUSTRATION 6–54.
4.
Remove the defective Circuit Breaker.
1
CAUTION
2
3
4

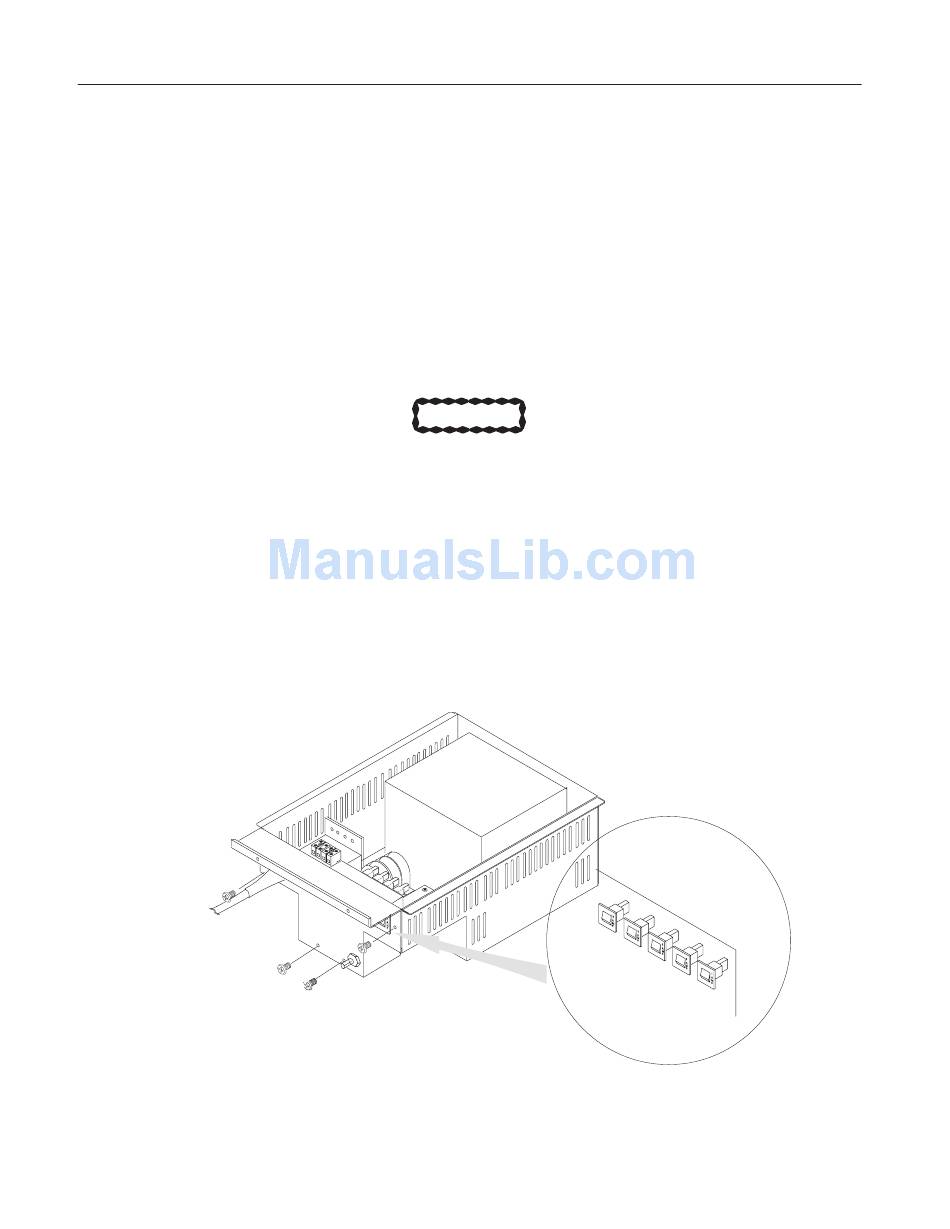

CIRCUIT BREAKER DISASSEMBLY
ILLUSTRATION 6–54
