6–4–2 Replacement Procedure (Continued)
(B) Disconnecting Cables
1. Disconnect seven cables listed below. Cut the tie wraps off if necessary. For each cable, refer to
ILLUSTRATION 6–57.
a. Disconnect six connectors (J10 – J13, J28, and J29) from the Mother Assy.
b. Unscrew and Disconnect two ring terminals (TB3–3 and TB3–5) from the Terminal Block 6 Assy.
c. Unscrew two screws ( 1 and 2).
TB3–3
TB3–5
É É É
É É É
É É É
É É É
2
1
J29
J28

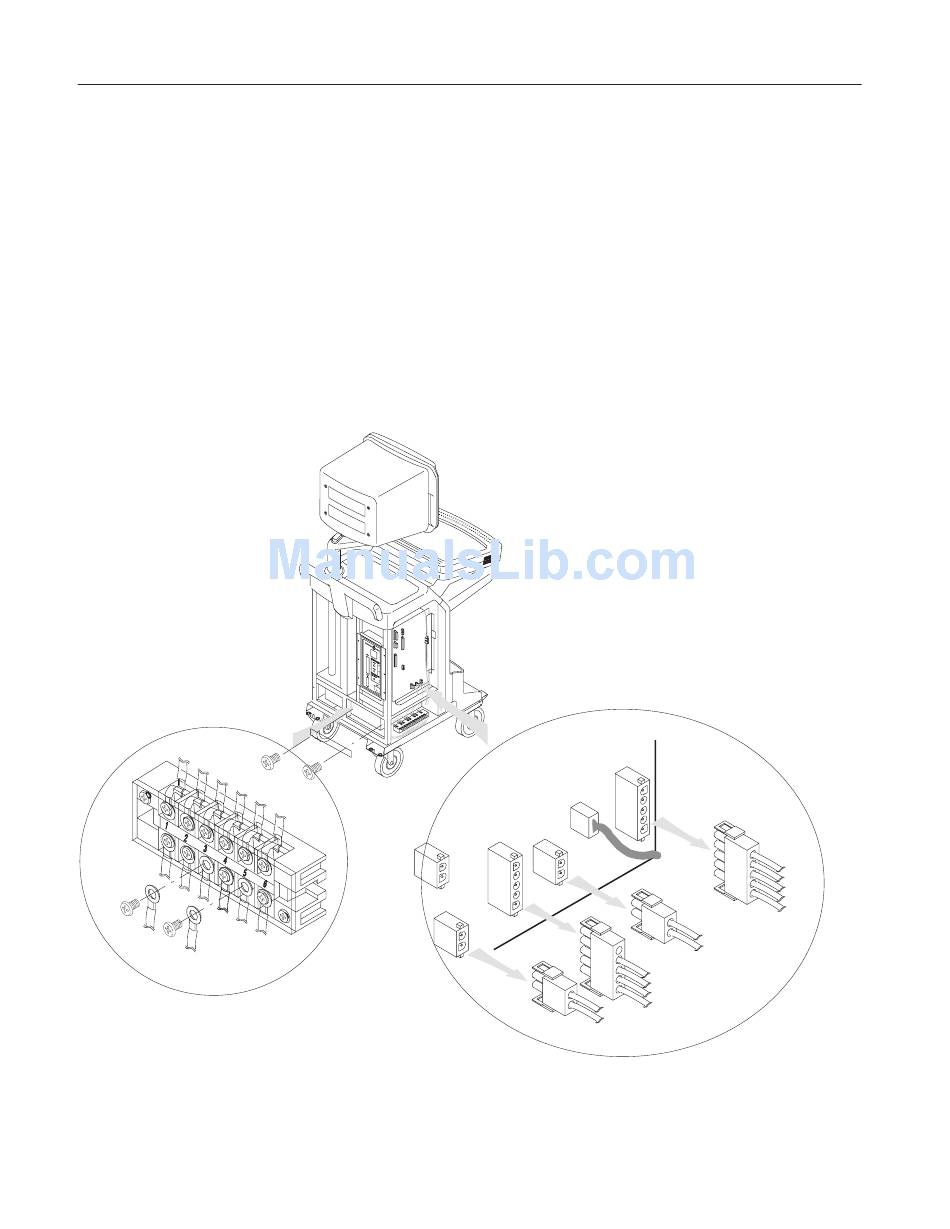

LEFT SIDE VIEW
ILLUSTRATION 6–57
