Monitor Cover Set (Fru No. 103) - GE Medical Systems LOGIQ ?200 Service Manual

GE MEDICAL SYSTEMS
REV 4
6–2–4

Monitor Cover Set (FRU No. 103)

Time Required
4 Minutes
Tool Required
Screwdriver
Procedure
Refer to ILLUSTRATION 6–10.
1.
Turn OFF the system.
2.
Lift and set the Monitor to the highest position by pushing down the Up/down Release Button located on the
Swing Arm Assy.
3.
Unscrew one screws (1) and remove the Monitor Bottom Cover.
4.
Unscrew four screws (2 – 5) and remove the Monitor Rear Cover.
5.
Unscrew four screws (6 – 9) and remove the Monitor Front Cover.
8
9
Monitor Front Cover
Monitor Rear Cover
6
1
7

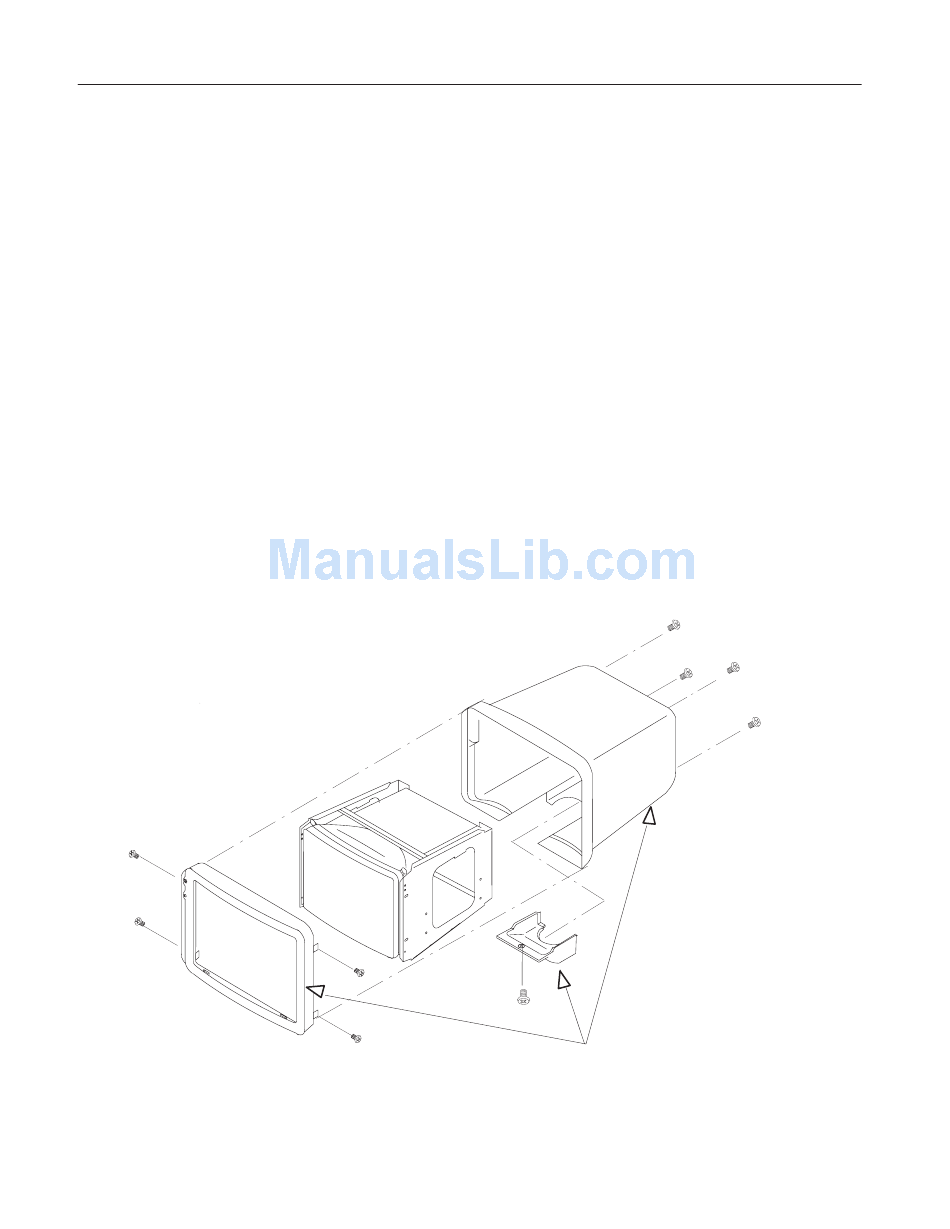

MONITOR COVER ASSY DISASSEMBLY
ILLUSTRATION 6–10
6–28
LOGIQ α200 SERVICE MANUAL
2
3
4
Monitor Bottom Cover
103 Monitor Cover Set
RENEWAL PARTS
2138853
5
