Connection Overview For Type E And F - Siemens simovert masterdrives Operating Instructions Manual

08.2008
NOTE
Siemens AG 6SE7087-2JK50
SIMOVERT MASTERDRIVES
PE1 / GND
Mains connection
DC link connection
Aux. contactor,
external DC24 V-
supply X9
PMU
X300
X108
X101
Mount.pos. 1 (CUMC)
S1
X103
Encoder card in slot C
S2
Mounting position 3
Mounting position 2
Shield connection
for control cables
Terminals for setting
the fan voltage

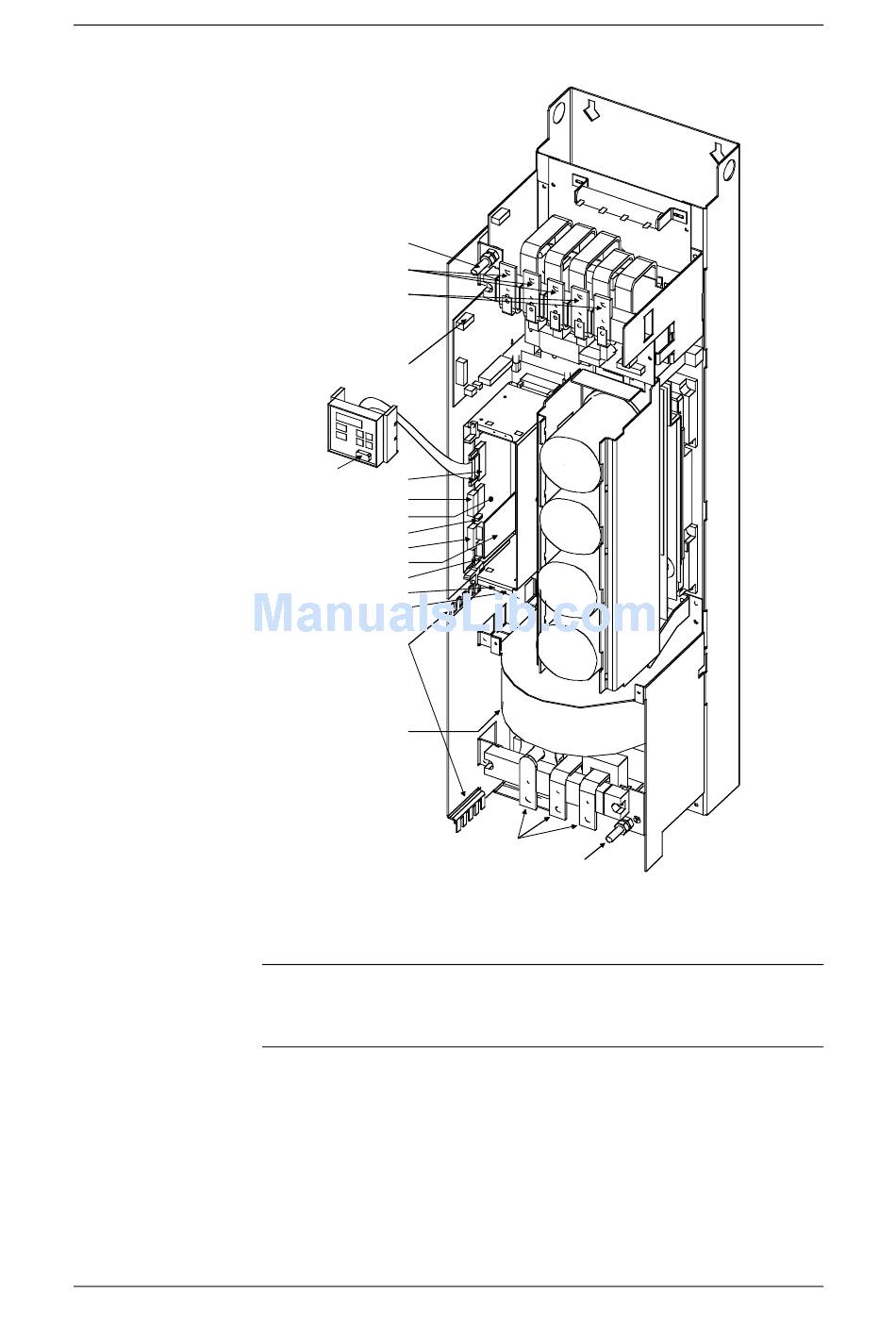

Fig. 7-1

Connection overview for type E and F

Due to the 230 V fan a transformer is integrated into the converters.
The terminals on the primary side of the transformer may have to be
reconnected corresponding to the line voltage.
Operating Instructions
Motor connection
PE2 / GND
Connecting-up
7-3
