V65MAGNA
MAINTENANCE

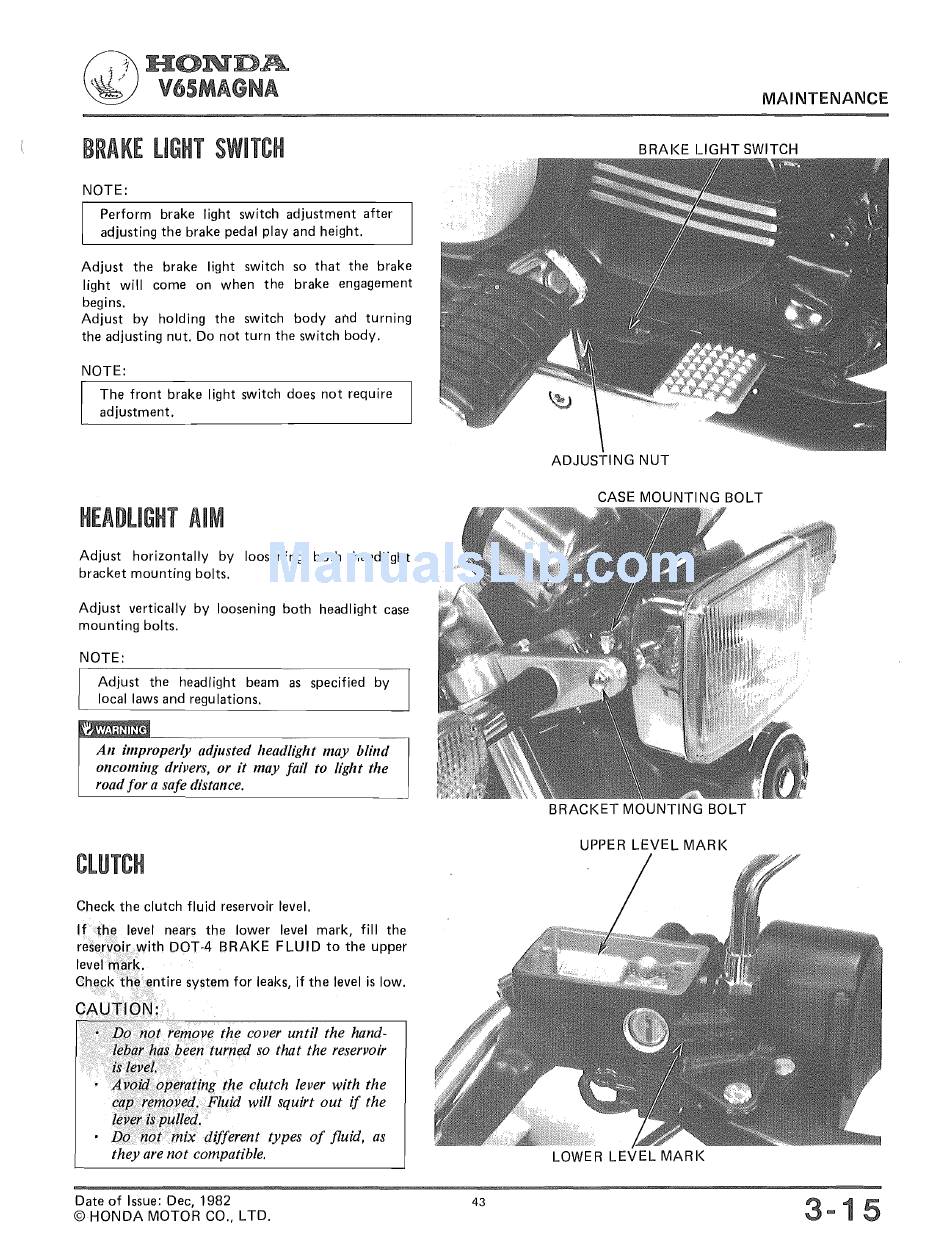

BRAKE LIGHT SWITCH
NOTE:
Perform brake light switch adjustment after
adjusting the brake pedal play and height.
Adjust the brake light switch so that the brake
light will come on when the brake engagement
begins.
Adjust by holding the switch body and turning
the adjusting nut. Do not turn the switch body.
NOTE:
The front brake light switch does not require
adjustment.
HEADLIGHT AIM
Adjust horizontally by loosening both headl ight
bracket mounting bolts.
Adjust vertically by loosening both headlight case
mounting bolts.
NOTE:
Adjust the headlight beam as specified by
local laws and regulations.
Anj"zproperly adjusted headlight may blind
ofzcpming drivers, or it may fail to light the
rggd for a safe distance.
CLUTCH
rA.~!rVl1,jr level.
level mark, fill the
nn"'''.r:
FLUID to the upper
BRAKE LIGHT SWITCH
ADJUSTI NG NUT
CASE MOUNTING BOLT
BRACKET MOUNTING BOLT
UPPER LEVEL MARK
LOWER LEVEL MARK
Date oflsslJe:Dec, 1982
©HONDA MOTOR CO., LTD.
43 3-15
