CODESOFT PL-330 User's Manual

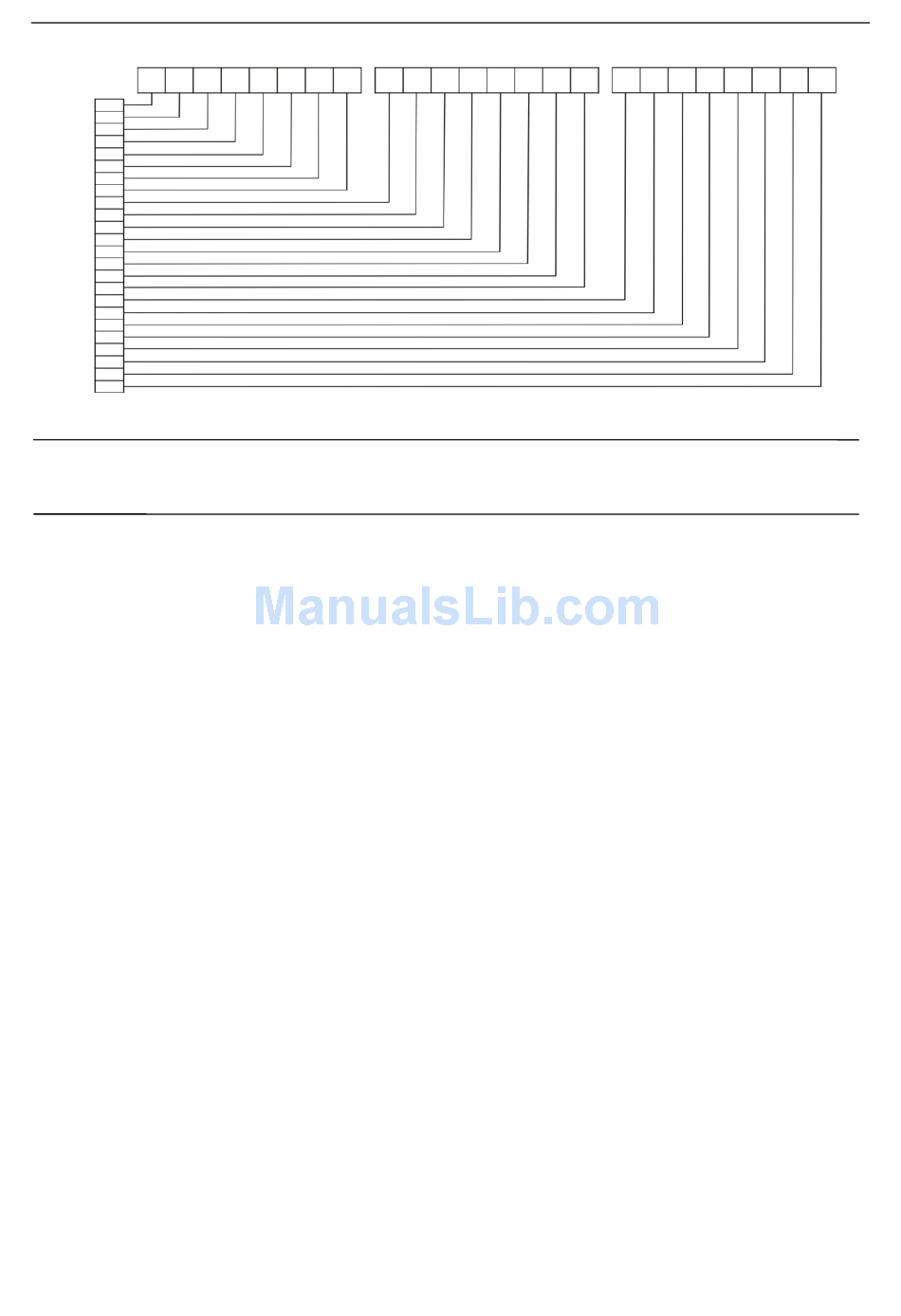

b7 b6 b5 b4 b3 b2 b1 b0 b7 b6 b5 b4 b3 b2 b1 b0 b7 b6 b5 b4 b3 b2 b1 b0
ESC FS q n [x11 x12 y11 y12 d1...dk]1...[xn1 xn2 yn1 yn2 d1...dk]n Register logo
Format: ASCII: ESC FS q n [x11 x12 y11 y12 d1 ... dk]1 ... [xn1 xn2 yn1 yn2 d1 ... dk]n
Decimal: 27 28 113 n [x11 x12 y11 y12 d1 ... dk]1 ... [xn1 xn2 yn1 yn2 d1 ... dk]n
Hex: 1B 1C 71 n [x11 x12 y11 y12 d1 ... dk]1 ... [xn1 xn2 yn1 yn2 d1 ... dk]n
Description:
1≤n≤255
0≤xn1≤255, 0≤xn2≤3
1≤(xn1+xn2x256)≤1023
0≤yn1≤255, 0≤yn2≤1
1≤(yn1+yn2x256)≤288
0≤d≤255
k={(xn1+xn2x256)x(yn1+yn2x256)x8}
Parameter details
* n: Specifies registered logo count
* xn1, xn2: Horizontal size of registered logo {(xn1+xn2x256)x8} dots
* yn1, yn2: Vertical size of registered logo {(yn1+yn2x256)x8} dots
* d: Registered logo data
* k: Logo data count
- 81 -
