1. Newly-install printer network driver
1) Click "Start" → "Settings" → "Select Printers".
2) Click "Add printer", then a window of "Add Printer Wizard" pops up, click "Next".
3) A window of "Add Printer Wizard" pops up, select "Local printer" in the "Local or Network Printer"
window, and then click "Next".

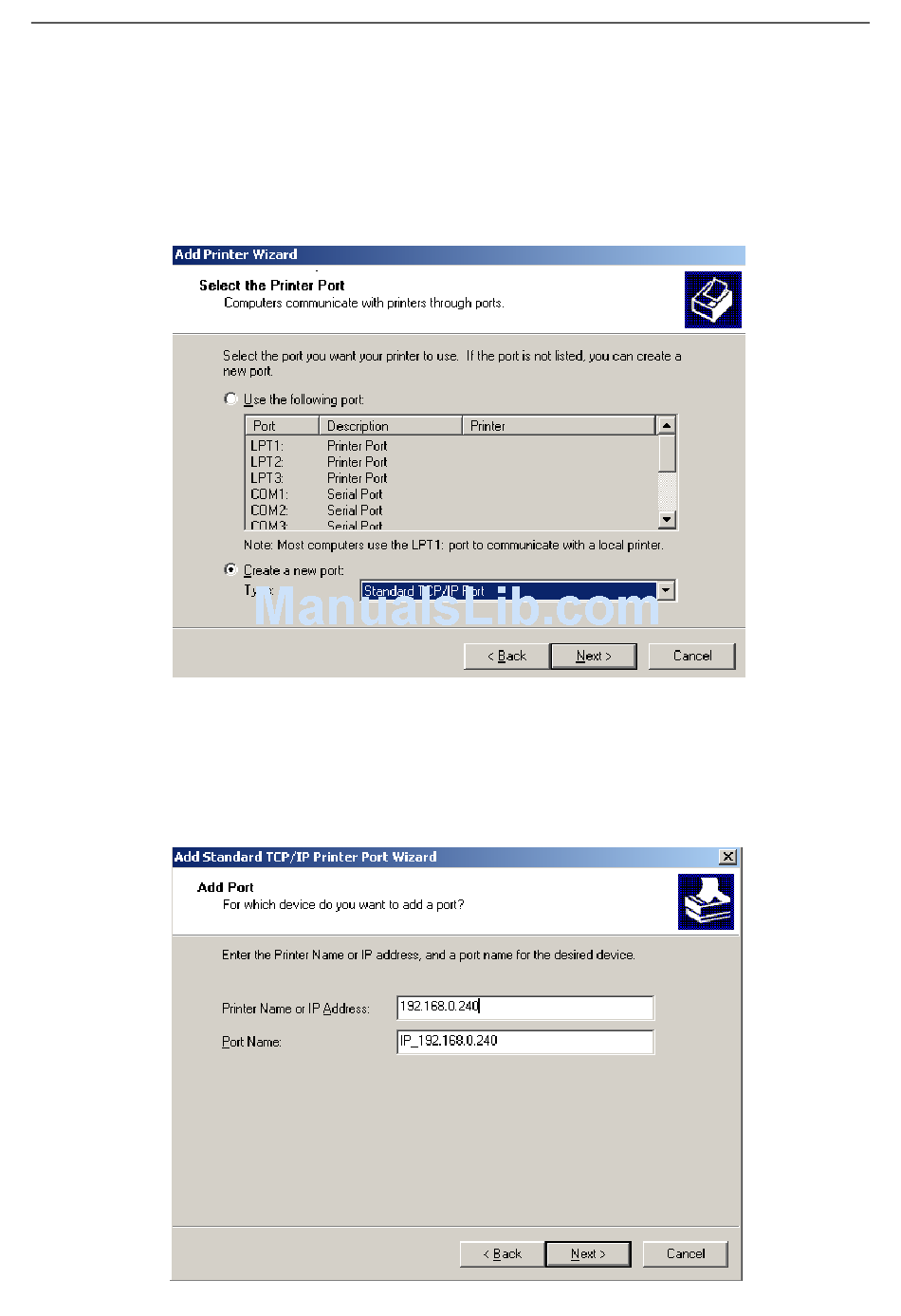

4) A window of "Select the Printer port" pops up, select "Create a new port", and then select "Standard
TCP/IP Port" in the port and click "Next".
5) A window of "Add standard TCP/IP Printer Port Wizard" pops up, click "Next".
6) A window of "Add Port" pops up, enter the IP address reported by the "Setting printer's IP address" in
the "Printer Name or IP Address" column. Take IP address "192.168.0.240" for example as the figure
shown below. "Port Name" is created automatically after finishing filling in IP address. Click "Next".
CODESOFT PL-330 User's Manual
- 36 -
