5.2.5 Ethernet Interface

Ethernet interface of 10/100 Base-T can be connected to 10/100M Ethernet.

5.2.6 Power Supply Inlet

The CODESOFT PL-330 connects with a 24V±10% and 2.5A AC adapter. The power supply inlet is
shown as Figure 5-9.
CODESOFT PL-330 User's Manual
4
DTR
8
CTS
5
GND
3
TXD
2
RXD
Printer 9PIN connector

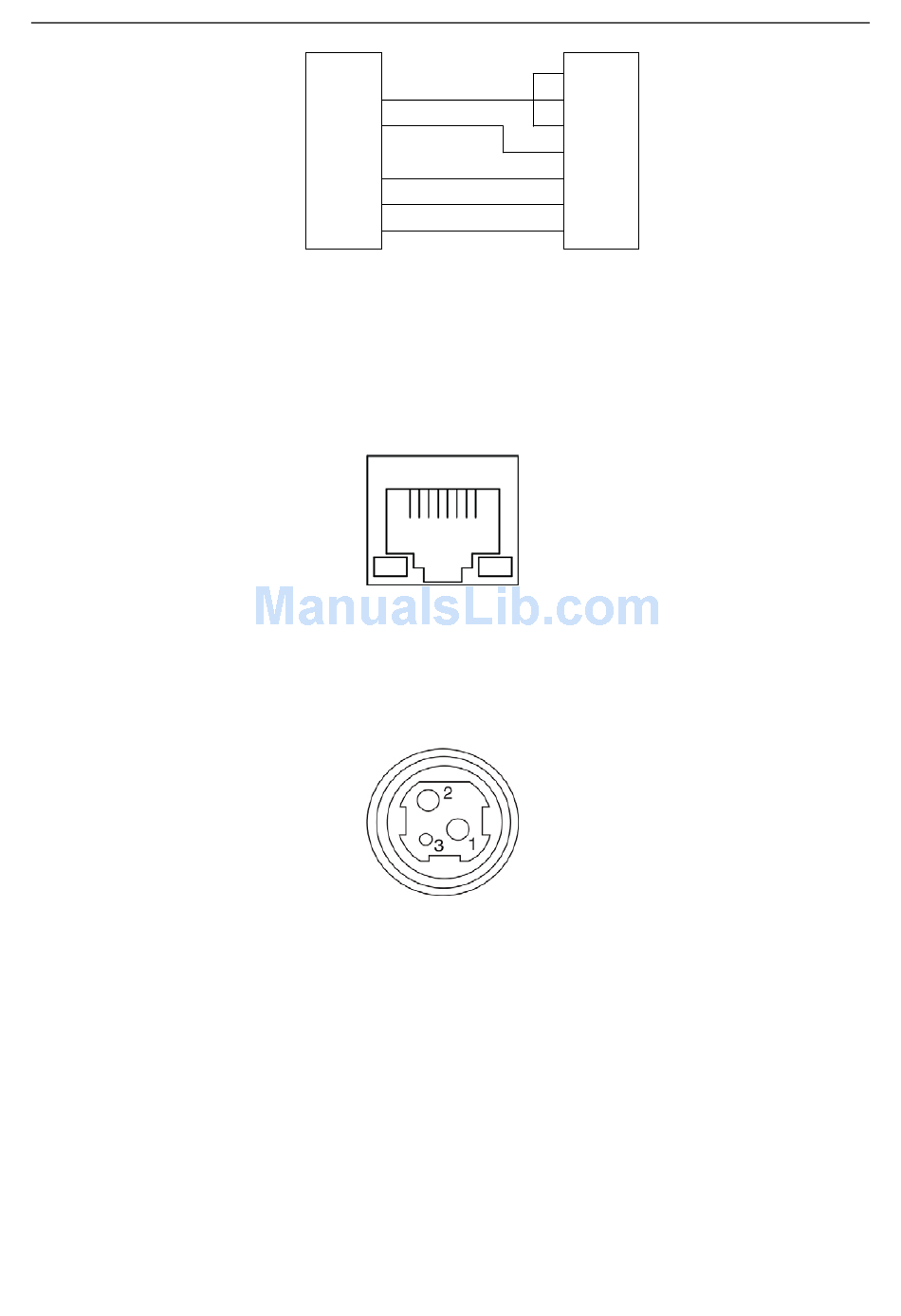

Figure 5-7 The connection figure of host 25 PIN and printer
Figure 5-8 Ethernet interface
Figure 5-9 Power supply inlet
- 54 -
6
DSR
8
DCD
5
CTS
4
RTS
7
GND
3
RXD
2
TXD
Host 25PIN connector
