8. When the setting is finished, click "Set" to exit the window of "Properties".
9. Restart the printer and the new settings take effect.

3.5.2 Set the Printer Parameter by the Browser Webpage

This printer supports the function of checking the printer state and setting parameters in the host through
Ethernet.
PL-330 is taken as an example in the following.
The concrete setting steps are shown as follows:
1. Make sure that the computer (or LAN) and the printer are connected with the Ethernet cable and both the
computer and the printer are turned on, the printer should be in normal working condition as well.

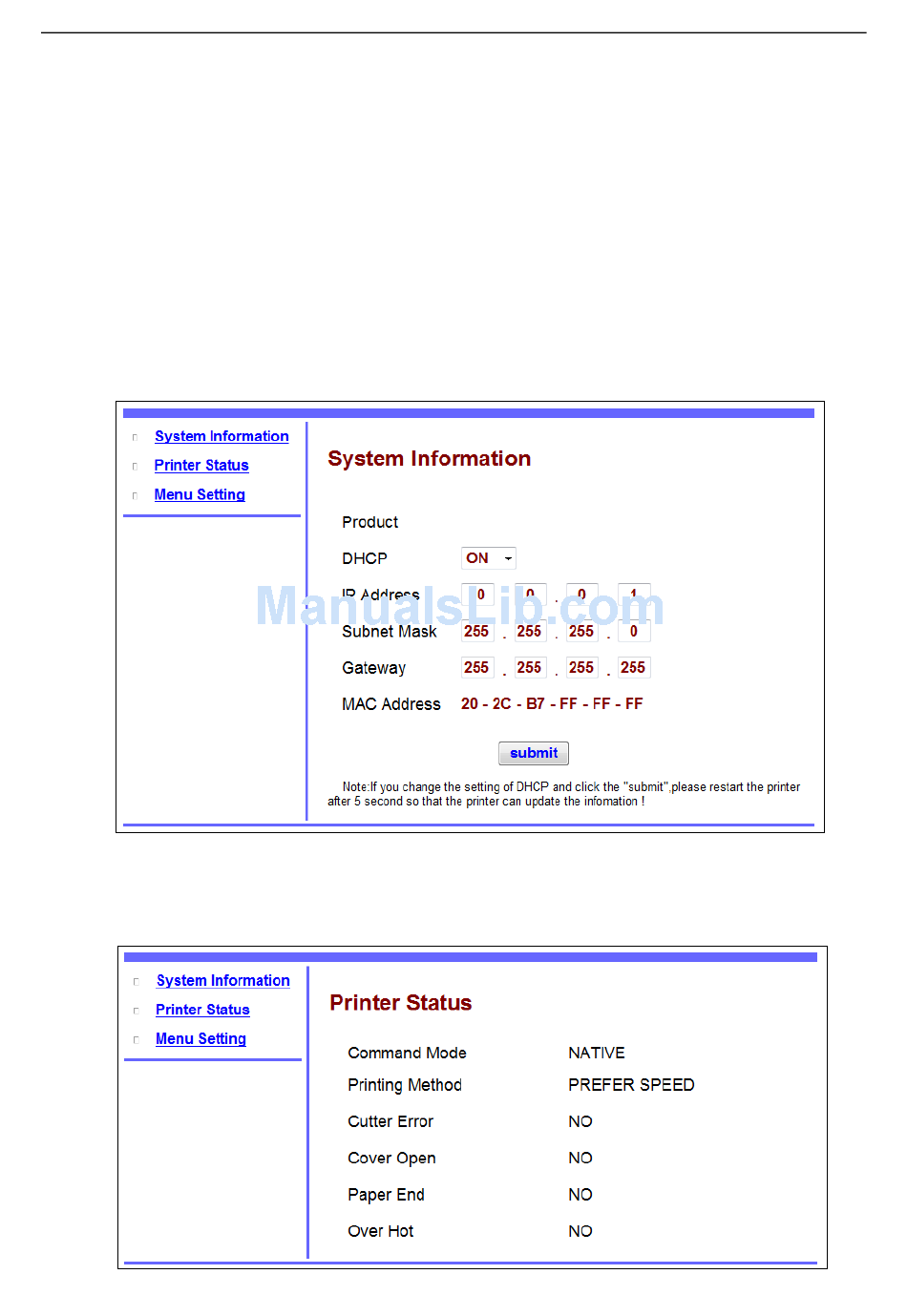

2. Under the operating system of WIN 2000/WIN XP/VISTA/WIN 7, open the browser, input the printer's IP
address in the address column and enter into the interface as shown below. If you can not open the
webpage, please check whether the IP address is correct and whether the current network is normal.
3. Click the different option of the left -side column to enter into the corresponding webpage, the webpage
will show the relevant information and state of the printer, if the printer state has changed, please refresh
the webpage to get the latest printer information.
CODESOFT PL-330 User's Manual
PL-330
- 45 -
