It is suggested that printer's IP is set to static in actual usage, which can cut down the time when
initializing the Ethernet interface as the printer is turned on and prevent IP conflicts (The dynamic
address used in printer may conflict with another one). The network segment part of the IP address
and Subnet Mask must be the same as those of PC connecting with a printer. For example, the
address of working PC is 192.168.0.1/255.255.255.0 (IP/Subnet Mask), then which of printer
should be set to 192.168.0.x/255.255.255.0 (x=2~254 and should avoid the occupied IP). It is not
restricted for NetFinder to search printers in the same network but different segment parts (can not
stride gateway). Relative glossary of IP address may refer to corresponding information.
2) Setting printer's IP address

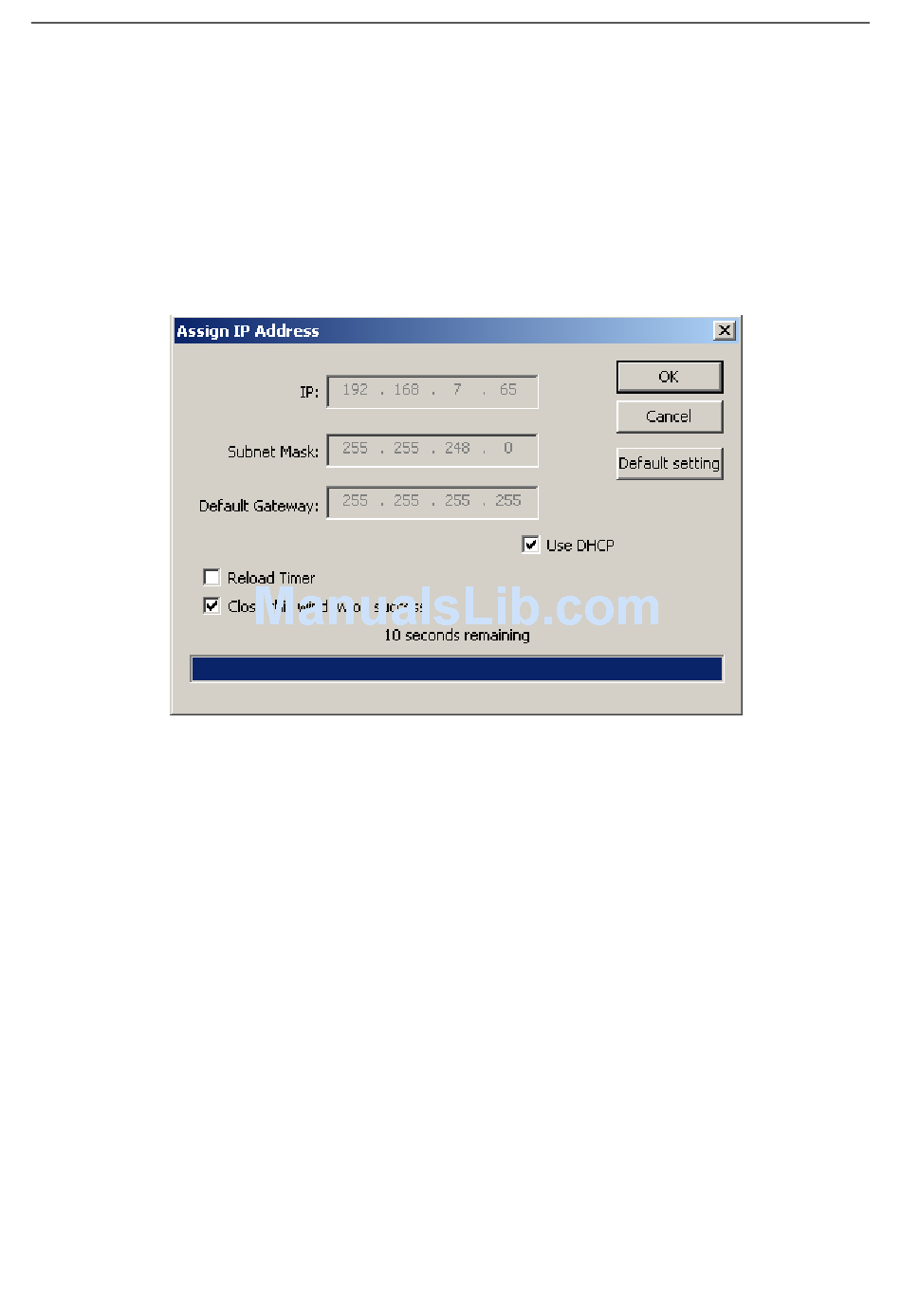

Select the printer information to be modified (black frame appears), click "Assign IP" button. Set the
IP in the dialog box appearing.
Check the "Use DHCP" if needed to assign dynamic address, the settings above will be disabled
automatically. Please make sure there is a DHCP server in the network, or the printer can not
receive an effective IP address.
When to specify static address, uncheck "Use DHCP" and fill in "IP address", "Subnet Mask" and
"Default Gateway". If there is no gateway in the network, fill 255.255.255.255 in the "Default
gateway". "IP address" and "Subnet Mask" should obey the assigning rules of local LAN (Ethernet),
please enquire the administrator of networks which the printer connects to for more details.
Click "OK" to send address setting information to the specified printer. Click "Cancel" if you abandon
the modification.
Click "Search" in the main interface again to update printer information after modifying the printer's
IP address and restarting the printer.
3) Record printer's IP address
Record the printer's IP address, which will be used in the section "Newly-install printer network
driver" or "Upgrade-install printer network driver (setting driver's network port)".

2.9 Wi-Fi Setting

2.9.1 Connecting the Printer

Wireless Printer is taken as an example to respectively describe the connection of Windows,
Android and iOS operation systems. Please make the connection according to the operating guide
of the current system, and skip to the next chapter "Wi-Fi Parameters Description" when the
connection is successfully.
