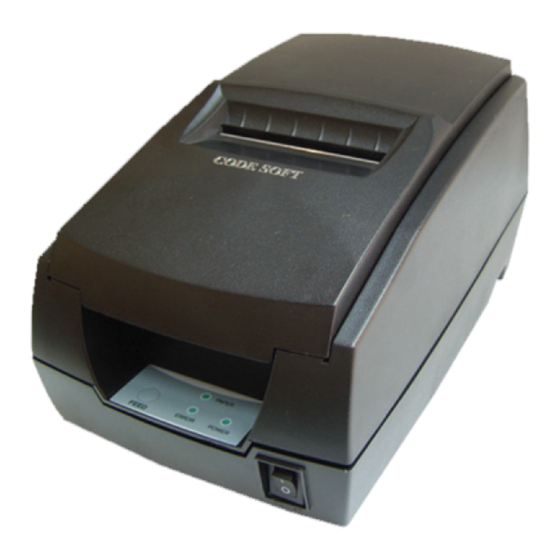

Impact dot-matrix printer

Advertisement

CODE SOFT
User's Manual
DP7645III
IMPACT DOT-MATRIX PRINTER
Proficient in Commercial POS Receipt printers

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP7645III and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Code Soft DP7645III

  • Page 1 CODE SOFT User’s Manual DP7645III IMPACT DOT-MATRIX PRINTER Proficient in Commercial POS Receipt printers...
  • Page 2: Safety Notice

    1.Safety Notice: * Don't touch the printer head with anything. * Don't touch the cutter blade. * Don't bend the power cord excessively or place any heavy objects onto it. * Don't use the printer when it is out of order. This can cause a fire or and electrocution. * When connecting or disconnecting the plug, always hold the plug but not the cord.
  • Page 3: Main Features

    Main Features: * Command protocal is based on ESC/POS standard * Low-noise thermal printing. * Various Layouts are possible by using page mode. * Repeated operation and copy printing are possible. * Character font size optional. * Easy paper-roll installation. * Easy paper jam clearance.
  • Page 4: Printer Connection

    6. Printer Connection a. Plug the DC cord connector into the printer's power connector. b. Plug the data cable connector into the printer's interface connector. c. Plug the drawer cable into the drawer kick-out connector on the back of the printer next to the interface connector.
  • Page 5 8. Setting the Printing Mode (DIP switches) The DIP switches are used to set the printer to perform various functions, such as cutter mode, character set, speed, beeper, print density and etc. DIP SWITCH SETTINGS ---------------------------IMPACT DOT-MATRIX PRINTER---------------------------...
  • Page 6 WARNING: All rights reserved. No part of this publication may be reproduced, stored in a retrieval, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission. The company reverses the rights of modifications of manufacture technology, assembly, software and hardware without notice.
