2.3.4 Connecting the Serial Cable

1. Make sure the computer and the printer are both turned off, plug the serial cable to the serial
interface of the printer. Tighten the screws on both sides and make the cable fixed (as shown in
Figure 2-5).
2. Plug the other end of the cable to the computer's serial interface. Tighten the screws on both sides
and make the cable fixed

2.3.5 Connecting the Ethernet Cable

Plug the crystal end of the Ethernet cable (RJ-45) into the printer's Ethernet interface and the other
end to the LAN (as shown in Figure 2-6).
CODESOFT PL-330 User's Manual
USB cable

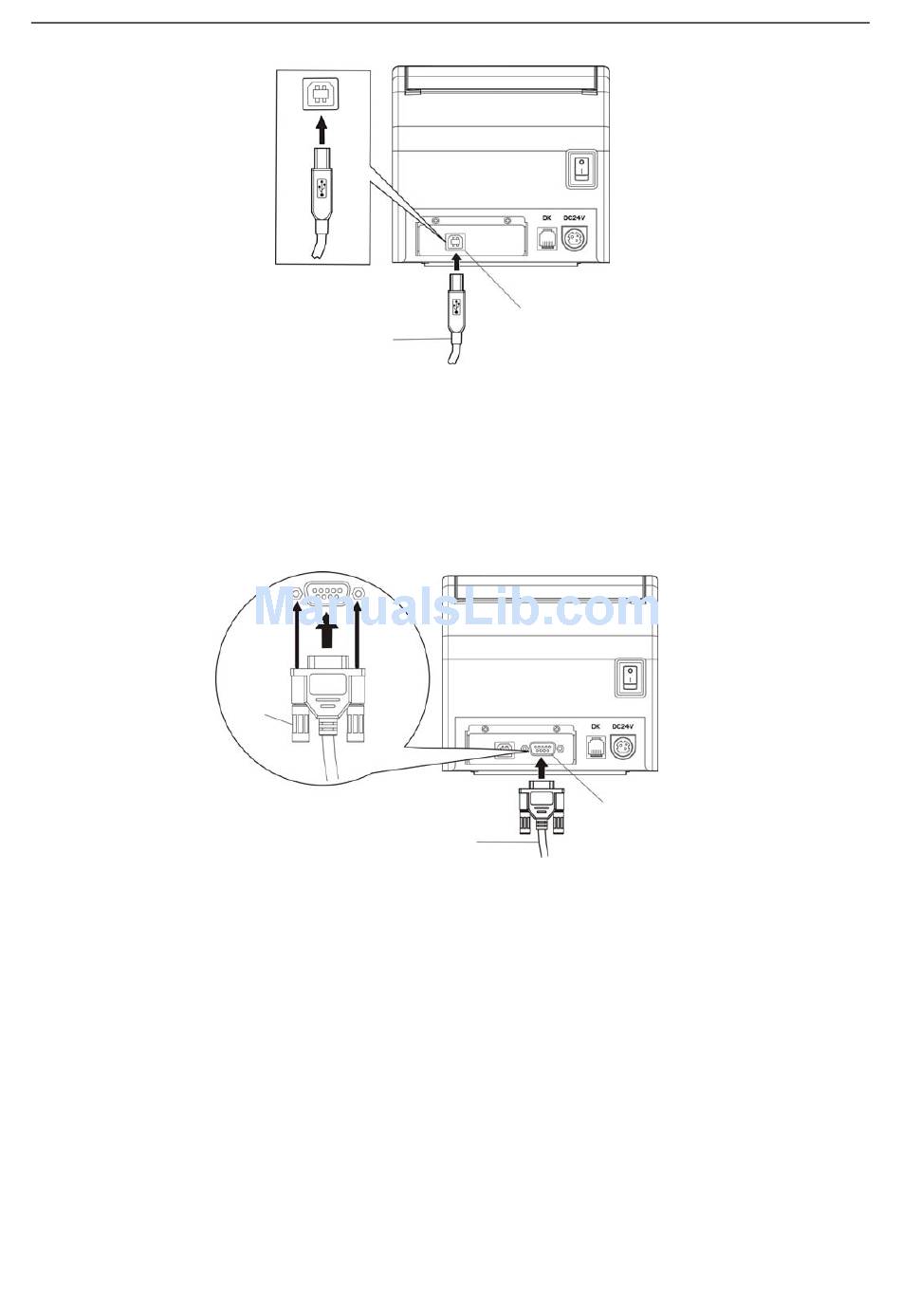

Figure 2-4 Connecting the USB cable
Screw
Serial cable
Figure 2-5 Connecting the serial cable
USB interface
Serial interface
- 5 -
