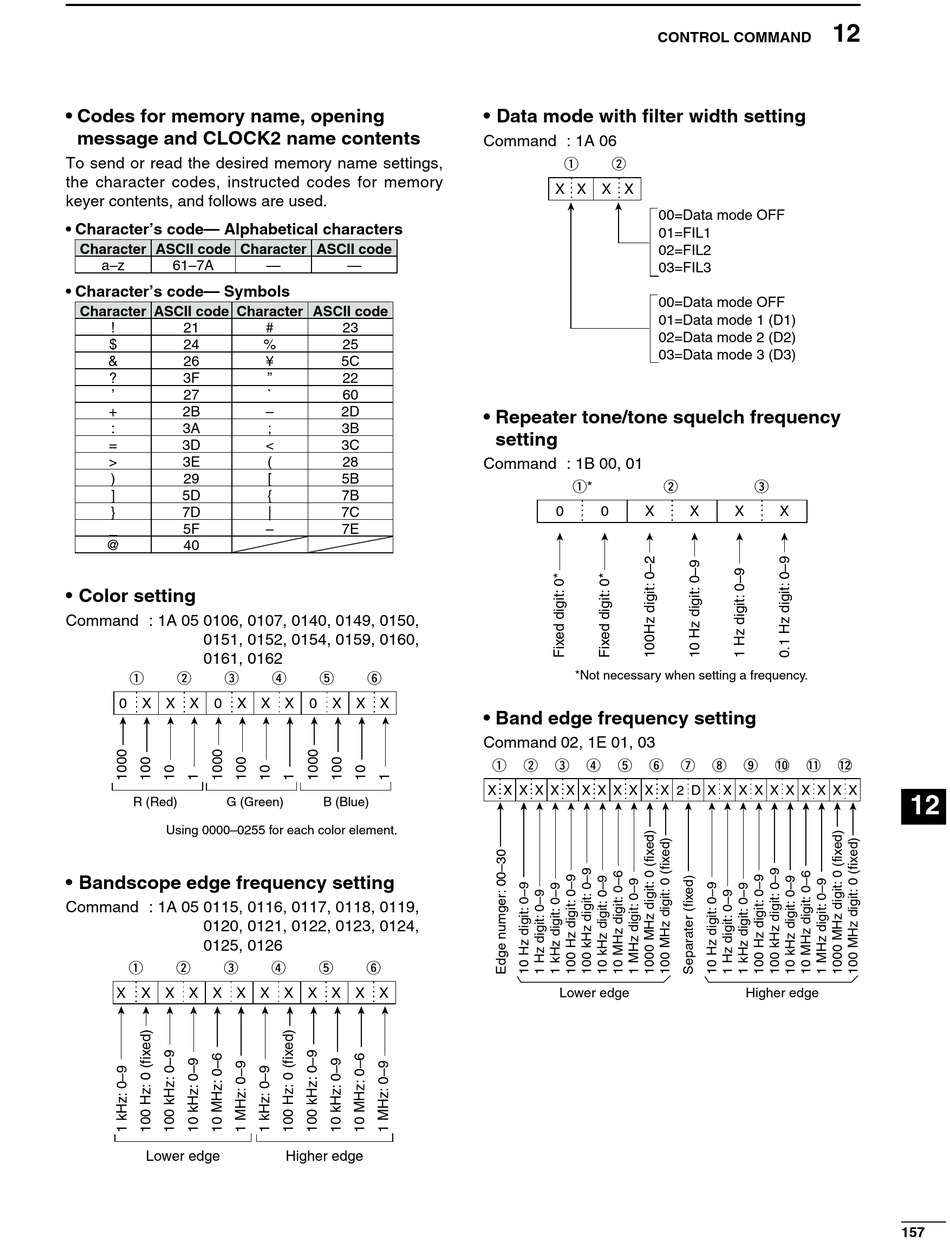

• Codes for memory name, opening
message and CLOCK2 name contents
To send or read the desired memory name settings,
the character codes, instructed codes for memory
keyer contents, and follows are used.
• Character's code— Alphabetical characters
Character ASCII code Character ASCII code
a–z 61–7A
• Character's code— Symbols
Character ASCII code Character ASCII code
! 21
$ 24
& 26
? 3F
' 27
+ 2B
: 3A
= 3D
> 3E
) 29
] 5D
} 7D
_ 5F
@ 40
• Color setting
Command : 1A 05 0106, 0107, 0140, 0149, 0150,
0151, 0152, 0154, 0159, 0160,
0161, 0162
q w e
0 X X X 0 X X X
R (Red) G (Green)
Using 0000–0255 for each color element.
• Bandscope edge frequency setting
Command : 1A 05 0115, 0116, 0117, 0118, 0119,
0120, 0121, 0122, 0123, 0124,
0125, 0126
q w e
X X X X X X X X X X X X
Lower edge
— —
# 23
% 25
¥ 5C
" 22
` 60
– 2D
; 3B
< 3C
( 28
[ 5B
{ 7B
| 7C
– 7E
r t y
0 X X X
B (Blue)
r t y
Higher edge
CONTROL COMMAND
• Data mode with filter width setting
Command : 1A 06
q w
X X X X
00=Data mode OFF
01=FIL1
02=FIL2
03=FIL3
00=Data mode OFF
01=Data mode 1 (D1)
02=Data mode 2 (D2)
03=Data mode 3 (D3)
• Repeater tone/tone squelch frequency
setting
Command : 1B 00, 01
q*
0 0 X
*Not necessary when setting a frequency.
• Band edge frequency setting
Command 02, 1E 01, 03
q w e r t y
X X X X X X X X X X X X 2 D X X X X X X X X X X
Lower edge
12
w e
X X X
u i o !0 !1 !2
Higher edge
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
