Voice Recorder Functions - Icom IC-718 Instruction Manual

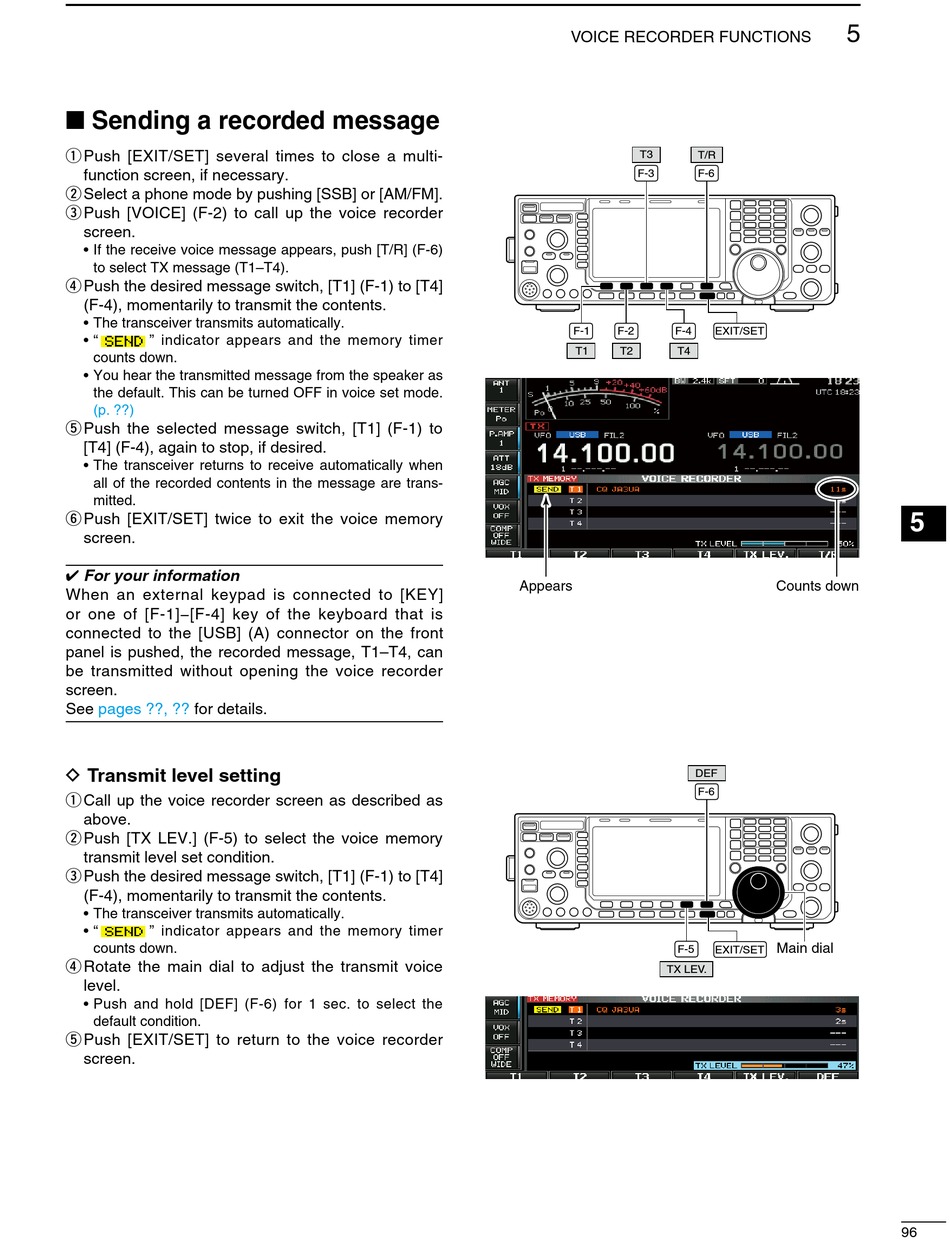

Sending a recorded message
q Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
w Select a phone mode by pushing [SSB] or [AM/FM].
e Push [VOICE] (F-2) to call up the voice recorder
screen.
• If the receive voice message appears, push [T/R] (F-6)
to select TX message (T1–T4).
r Push the desired message switch, [T1] (F-1) to [T4]
(F-4), momentarily to transmit the contents.
• The transceiver transmits automatically.
• " " indicator appears and the memory timer
counts down.
• You hear the transmitted message from the speaker as
the default. This can be turned OFF in voice set mode.
(p. ??)
t Push the selected message switch, [T1] (F-1) to
[T4] (F-4), again to stop, if desired.
• The transceiver returns to receive automatically when
all of the recorded contents in the message are trans-
mitted.
y Push [EXIT/SET] twice to exit the voice memory
screen.
For your information
When an external keypad is connected to [KEY]
or one of [F-1]−[F-4] key of the keyboard that is
connected to the [USB] (A) connector on the front
panel is pushed, the recorded message, T1–T4, can
be transmitted without opening the voice recorder
screen.
See pages ??, ?? for details.
D Transmit level setting
q Call up the voice recorder screen as described as
above.
w Push [TX LEV.] (F-5) to select the voice memory
transmit level set condition.
e Push the desired message switch, [T1] (F-1) to [T4]
(F-4), momentarily to transmit the contents.
• The transceiver transmits automatically.
• " " indicator appears and the memory timer
counts down.
r Rotate the main dial to adjust the transmit voice
level.
• Push and hold [DEF] (F-6) for 1 sec. to select the
default condition.
t Push [EXIT/SET] to return to the voice recorder
screen.

VOICE RECORDER FUNCTIONS

T3
T/R
F-3 F-6
F-1 F-2 F-4
T1 T2 T4
Appears
DEF
F-6
F-5
TX LEV.
5
EXIT/SET
Counts down
Main dial
EXIT/SET
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
96
