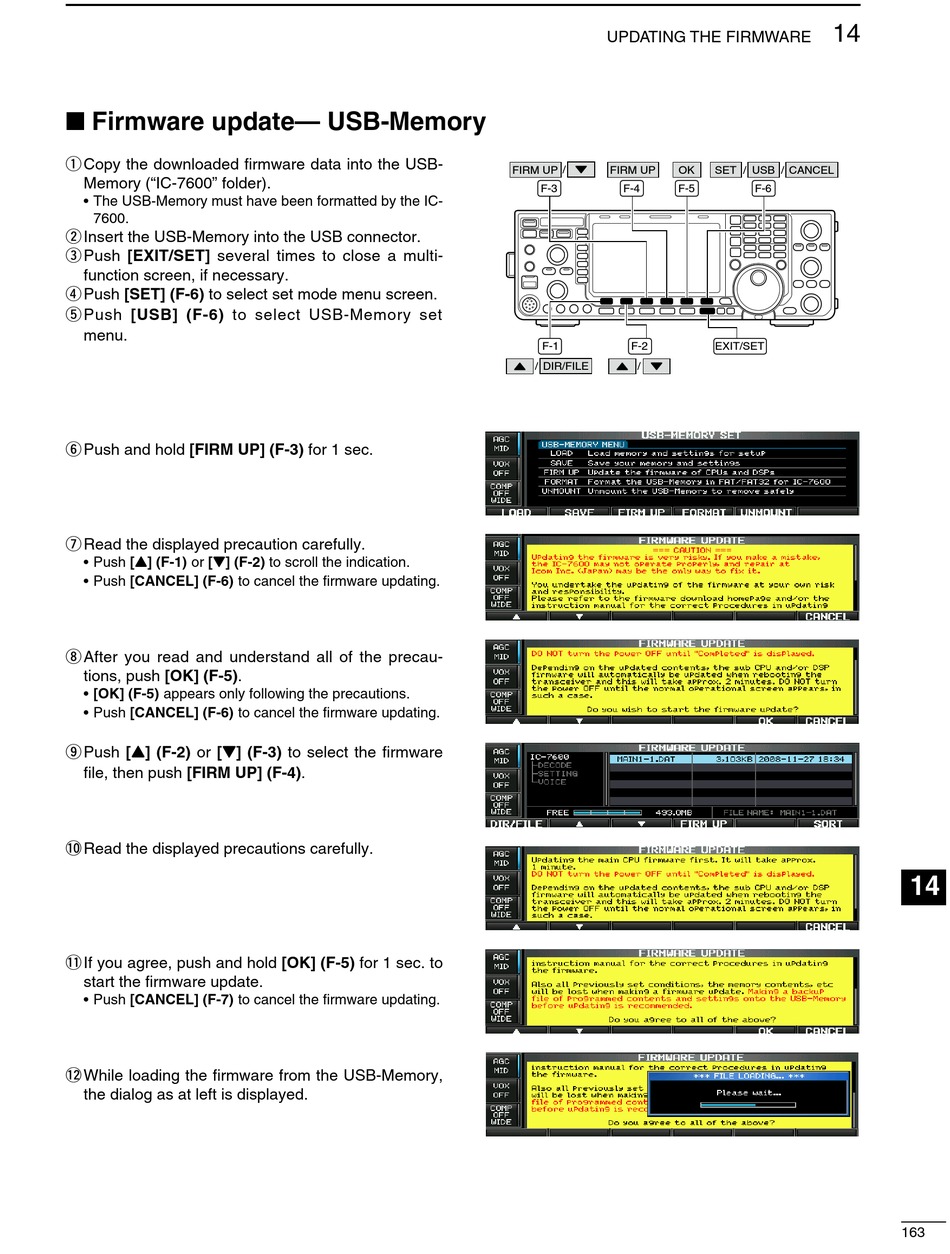

Firmware update— USB-Memory
q Copy the downloaded firmware data into the USB-
Memory ("IC-7600" folder).
• The USB-Memory must have been formatted by the IC-
7600.
w Insert the USB-Memory into the USB connector.
e Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
r Push [SET] (F-6) to select set mode menu screen.
t Push [USB] (F-6) to select USB-Memory set
menu.
y Push and hold [FIRM UP] (F-3) for 1 sec.
u Read the displayed precaution carefully.
• Push [Y] (F-1) or [Z] (F-2) to scroll the indication.
• Push [CANCEL] (F-6) to cancel the firmware updating.
i After you read and understand all of the precau-
tions, push [OK] (F-5).
• [OK] (F-5) appears only following the precautions.
• Push [CANCEL] (F-6) to cancel the firmware updating.
o Push [Y] (F-2) or [Z] (F-3) to select the firmware
file, then push [FIRM UP] (F-4).
!0 Read the displayed precautions carefully.
!1 If you agree, push and hold [OK] (F-5) for 1 sec. to
start the firmware update.
• Push [CANCEL] (F-7) to cancel the firmware updating.
!2 While loading the firmware from the USB-Memory,
the dialog as at left is displayed.
UPDATING THE FIRMWARE
/
FIRM UP FIRM UP OK
F-3 F-4 F-5
F-1 F-2
/ DIR/FILE /
14
SET / USB / CANCEL
F-6
EXIT/SET
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
163
