13

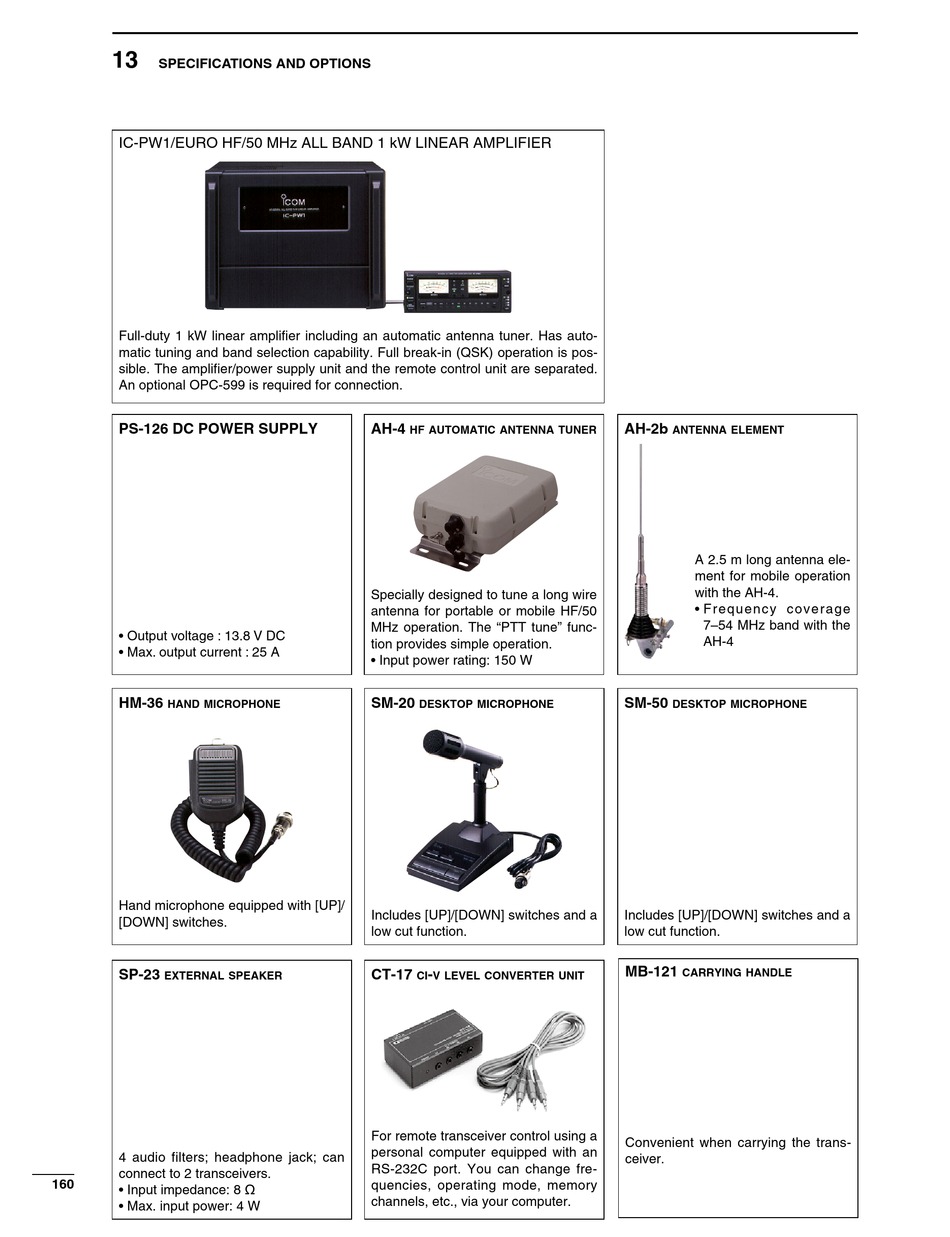

SPECIFICATIONS AND OPTIONS
IC-PW1/EURO HF/50 MHz ALL BAND 1 kW LINEAR AMPLIFIER
Full-duty 1 kW linear amplifier including an automatic antenna tuner. Has auto-
matic tuning and band selection capability. Full break-in (QSK) operation is pos-
sible. The amplifier/power supply unit and the remote control unit are separated.
An optional OPC-599 is required for connection.
PS-126 DC POWER SUPPLY
• Output voltage : 13.8 V DC
• Max. output current : 25 A
HM-36
HAND MICROPHONE
Hand microphone equipped with [UP]/
[DOWN] switches.
SP-23
EXTERNAL SPEAKER
4 audio filters; headphone jack; can
connect to 2 transceivers.
160
• Input impedance: 8 ø
• Max. input power: 4 W
AH-4
HF AUTOMATIC ANTENNA TUNER
Specially designed to tune a long wire
antenna for portable or mobile HF/50
MHz operation. The "PTT tune" func-
tion provides simple operation.
• Input power rating: 150 W
SM-20
DESKTOP MICROPHONE
Includes [UP]/[DOWN] switches and a
low cut function.
CT-17 -
CI V LEVEL CONVERTER UNIT
For remote transceiver control using a
personal computer equipped with an
RS-232C port. You can change fre-
quencies, operating mode, memory
channels, etc., via your computer.
AH-2b
ANTENNA ELEMENT
A 2.5 m long antenna ele-
ment for mobile operation
with the AH-4.
• Frequency coverage
7–54 MHz band with the
AH-4
SM-50
DESKTOP MICROPHONE
Includes [UP]/[DOWN] switches and a
low cut function.
MB-121
CARRYING HANDLE
Convenient when carrying the trans-
ceiver.
