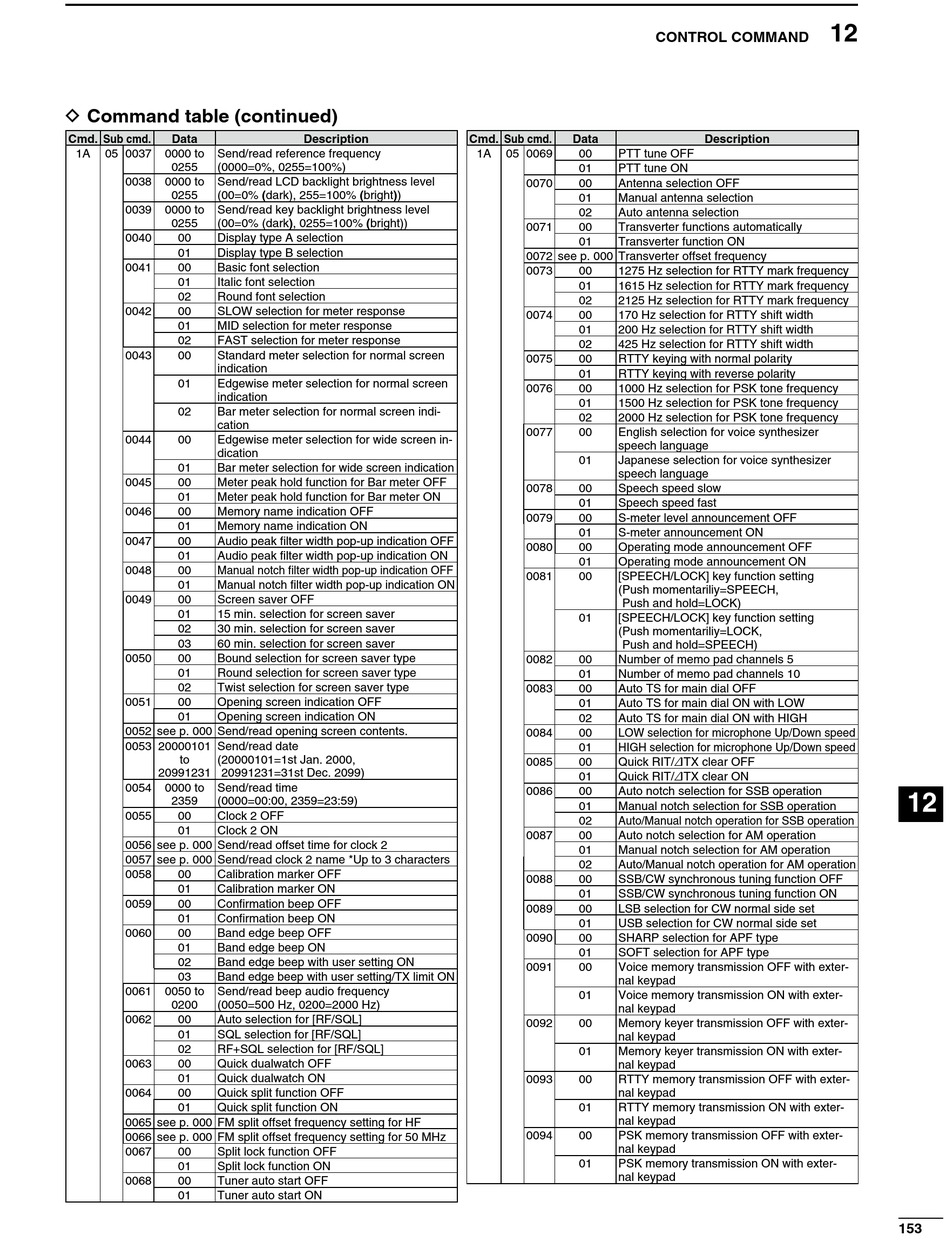

Icom IC-718 Instruction Manual page 71

D Command table (continued)
Cmd. Sub cmd. Data
1A 05 0037 0000 to Send/read reference frequency
0255 (0000=0%, 0255=100%)
0038 0000 to Send/read LCD backlight brightness level
0255 (00=0% (dark), 255=100% (bright))
0039 0000 to Send/read key backlight brightness level
0255 (00=0% (dark), 0255=100% (bright))
0040 00 Display type A selection
01 Display type B selection
0041 00 Basic font selection
01 Italic font selection
02 Round font selection
0042 00 SLOW selection for meter response
01 MID selection for meter response
02 FAST selection for meter response
0043 00 Standard meter selection for normal screen
indication
01 Edgewise meter selection for normal screen
indication
02 Bar meter selection for normal screen indi-
cation
0044 00 Edgewise meter selection for wide screen in-
dication
01 Bar meter selection for wide screen indication
0045 00 Meter peak hold function for Bar meter OFF
01 Meter peak hold function for Bar meter ON
0046 00 Memory name indication OFF
01 Memory name indication ON
0047 00 Audio peak filter width pop-up indication OFF
01 Audio peak filter width pop-up indication ON
0048 00 Manual notch filter width pop-up indication OFF
01 Manual notch filter width pop-up indication ON
0049 00 Screen saver OFF
01 15 min. selection for screen saver
02 30 min. selection for screen saver
03 60 min. selection for screen saver
0050 00 Bound selection for screen saver type
01 Round selection for screen saver type
02 Twist selection for screen saver type
0051 00 Opening screen indication OFF
01 Opening screen indication ON
0052 see p. 000 Send/read opening screen contents.
0053 20000101 Send/read date
to ( 20000101=1st Jan. 2000,
20991231 20991231=31st Dec. 2099)
0054 0000 to Send/read time
2359 (0000=00:00, 2359=23:59)
0055 00 Clock 2 OFF
01 Clock 2 ON
0056 see p. 000 Send/read offset time for clock 2
0057 see p. 000 Send/read clock 2 name *Up to 3 characters
0058 00 Calibration marker OFF
01 Calibration marker ON
0059 00 Confirmation beep OFF
01 Confirmation beep ON
0060 00 Band edge beep OFF
01 Band edge beep ON
02 Band edge beep with user setting ON
03 Band edge beep with user setting/TX limit ON
0061 0050 to Send/read beep audio frequency
0200 (0050=500 Hz, 0200=2000 Hz)
0062 00 Auto selection for [RF/SQL]
01 SQL selection for [RF/SQL]
02 RF+SQL selection for [RF/SQL]
0063 00 Quick dualwatch OFF
01 Quick dualwatch ON
0064 00 Quick split function OFF
01 Quick split function ON
0065 see p. 000 FM split offset frequency setting for HF
0066 see p. 000 FM split offset frequency setting for 50 MHz
0067 00 Split lock function OFF
01 Split lock function ON
0068 00 Tuner auto start OFF
01 Tuner auto start ON
Description Cmd. Sub cmd.
1A
CONTROL COMMAND
Data
05 0069 00 PTT tune OFF
01 PTT tune ON
0070 00 Antenna selection OFF
01 Manual antenna selection
02 Auto antenna selection
0071 00 Transverter functions automatically
01 Transverter function ON
0072 see p. 000 Transverter offset frequency
0073 00 1275 Hz selection for RTTY mark frequency
01 1615 Hz selection for RTTY mark frequency
02 2125 Hz selection for RTTY mark frequency
0074 00 170 Hz selection for RTTY shift width
01 200 Hz selection for RTTY shift width
02 425 Hz selection for RTTY shift width
0075 00 RTTY keying with normal polarity
01 RTTY keying with reverse polarity
0076 00 1000 Hz selection for PSK tone frequency
01 1500 Hz selection for PSK tone frequency
02 2000 Hz selection for PSK tone frequency
0077 00 English selection for voice synthesizer
speech language
01 Japanese selection for voice synthesizer
speech language
0078 00 Speech speed slow
01 Speech speed fast
0079 00 S-meter level announcement OFF
01 S-meter announcement ON
0080 00 Operating mode announcement OFF
01 Operating mode announcement ON
0081 00 [SPEECH/LOCK] key function setting
( Push momentariliy=SPEECH,
Push and hold=LOCK)
01 [SPEECH/LOCK] key function setting
( Push momentariliy=LOCK,
Push and hold=SPEECH)
0082 00 Number of memo pad channels 5
01 Number of memo pad channels 10
0083 00 Auto TS for main dial OFF
01 Auto TS for main dial ON with LOW
02 Auto TS for main dial ON with HIGH
0084 00 LOW selection for microphone Up/Down speed
01 HIGH selection for microphone Up/Down speed
0085 00 Quick RIT/ : TX clear OFF
01 Quick RIT/ : TX clear ON
0086 00 Auto notch selection for SSB operation
01 Manual notch selection for SSB operation
02 Auto/Manual notch operation for SSB operation
0087 00 Auto notch selection for AM operation
01 Manual notch selection for AM operation
02 Auto/Manual notch operation for AM operation
0088 00 SSB/CW synchronous tuning function OFF
01 SSB/CW synchronous tuning function ON
0089 00 LSB selection for CW normal side set
01 USB selection for CW normal side set
0090 00 SHARP selection for APF type
01 SOFT selection for APF type
0091 00 Voice memory transmission OFF with exter-
nal keypad
01 Voice memory transmission ON with exter-
nal keypad
0092 00 Memory keyer transmission OFF with exter-
nal keypad
01 Memory keyer transmission ON with exter-
nal keypad
0093 00 RTTY memory transmission OFF with exter-
nal keypad
01 RTTY memory transmission ON with exter-
nal keypad
0094 00 PSK memory transmission OFF with exter-
nal keypad
01 PSK memory transmission ON with exter-
nal keypad
