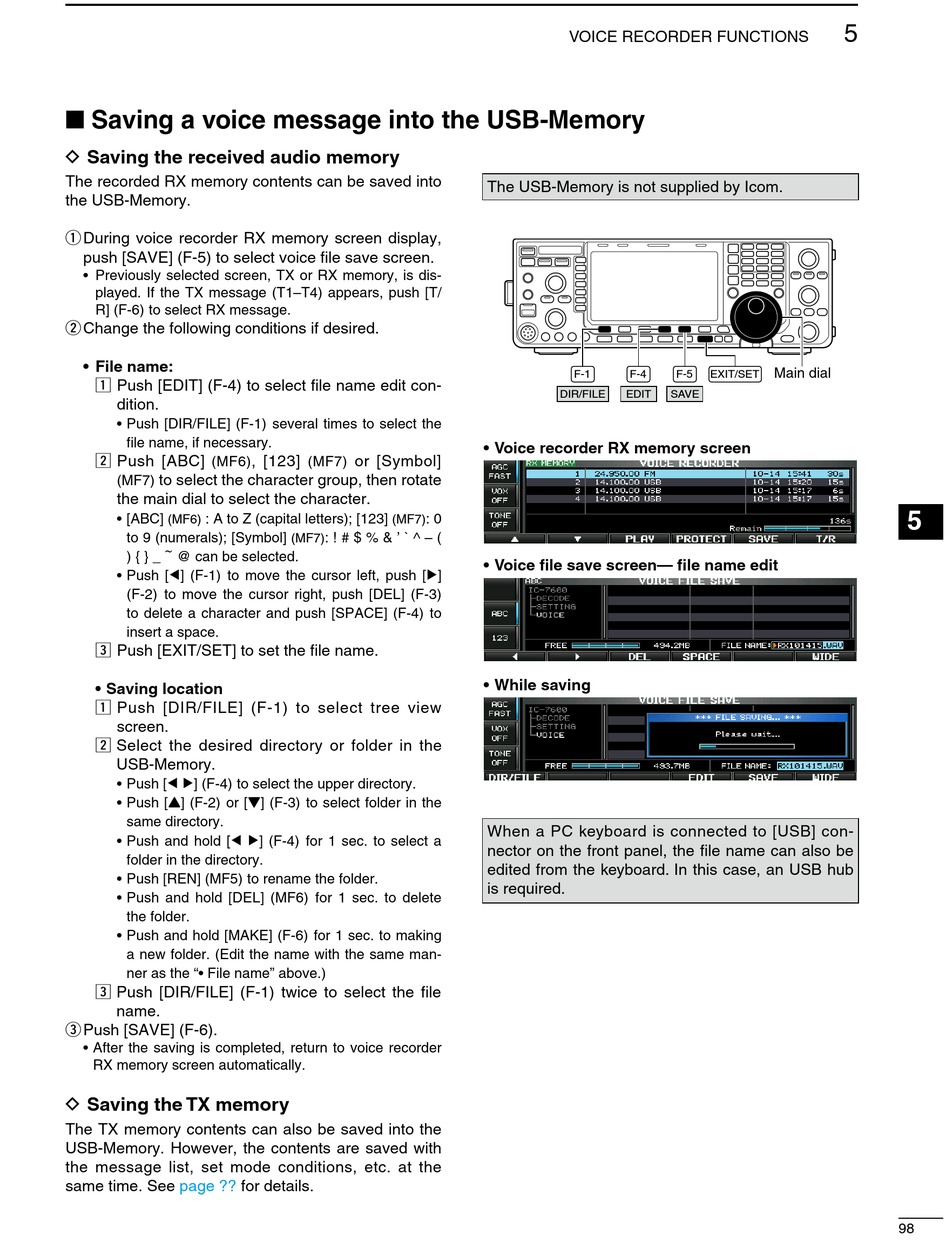

Saving a voice message into the USB-Memory
D Saving the received audio memory
The recorded RX memory contents can be saved into
the USB-Memory.
q During voice recorder RX memory screen display,
push [SAVE] (F-5) to select voice file save screen.
• Previously selected screen, TX or RX memory, is dis-
played. If the TX message (T1–T4) appears, push [T/
R] (F-6) to select RX message.
w Change the following conditions if desired.
• File name:
z Push [EDIT] (F-4) to select file name edit con-
dition.
• Push [DIR/FILE] (F-1) several times to select the
file name, if necessary.
x Push [ABC]
(MF6)
to select the character group, then rotate
(MF7)
the main dial to select the character.
• [ABC] : A to Z (capital letters); [123]
(MF6)
to 9 (numerals); [Symbol]
) { } _ ~ @ can be selected.
• Push [Ω] (F-1) to move the cursor left, push [≈]
(F-2) to move the cursor right, push [DEL] (F-3)
to delete a character and push [SPACE] (F-4) to
insert a space.
c Push [EXIT/SET] to set the file name.
• Saving location
z Push [DIR/FILE] (F-1) to select tree view

screen.

x Select the desired directory or folder in the
USB-Memory.
• Push [Ω ≈] (F-4) to select the upper directory.
• Push [Y] (F-2) or [Z] (F-3) to select folder in the
same directory.
• Push and hold [Ω ≈] (F-4) for 1 sec. to select a
folder in the directory.
• Push [REN] (MF5) to rename the folder.
• Push and hold [DEL] (MF6) for 1 sec. to delete
the folder.
• Push and hold [MAKE] (F-6) for 1 sec. to making
a new folder. (Edit the name with the same man-
ner as the "• File name" above.)
c Push [DIR/FILE] (F-1) twice to select the file
name.
e Push [SAVE] (F-6).
• After the saving is completed, return to voice recorder
RX memory screen automatically.
D Saving the TX memory
The TX memory contents can also be saved into the
USB-Memory. However, the contents are saved with
the message list, set mode conditions, etc. at the
same time. See page ?? for details.
, [123] or [Symbol]
(MF7)
: 0
(MF7)
: ! # $ % & ' ` ^ – (
(MF7)
VOICE RECORDER FUNCTIONS
The USB-Memory is not supplied by Icom.
F-1 F-4
DIR/FILE EDIT
• Voice recorder RX memory creen
• Voice file ave creen— file name edit
• While aving
When a PC keyboard is connected to [USB] con-
nector on the front panel, the file name can also be
edited from the keyboard. In this case, an USB hub
is required.
