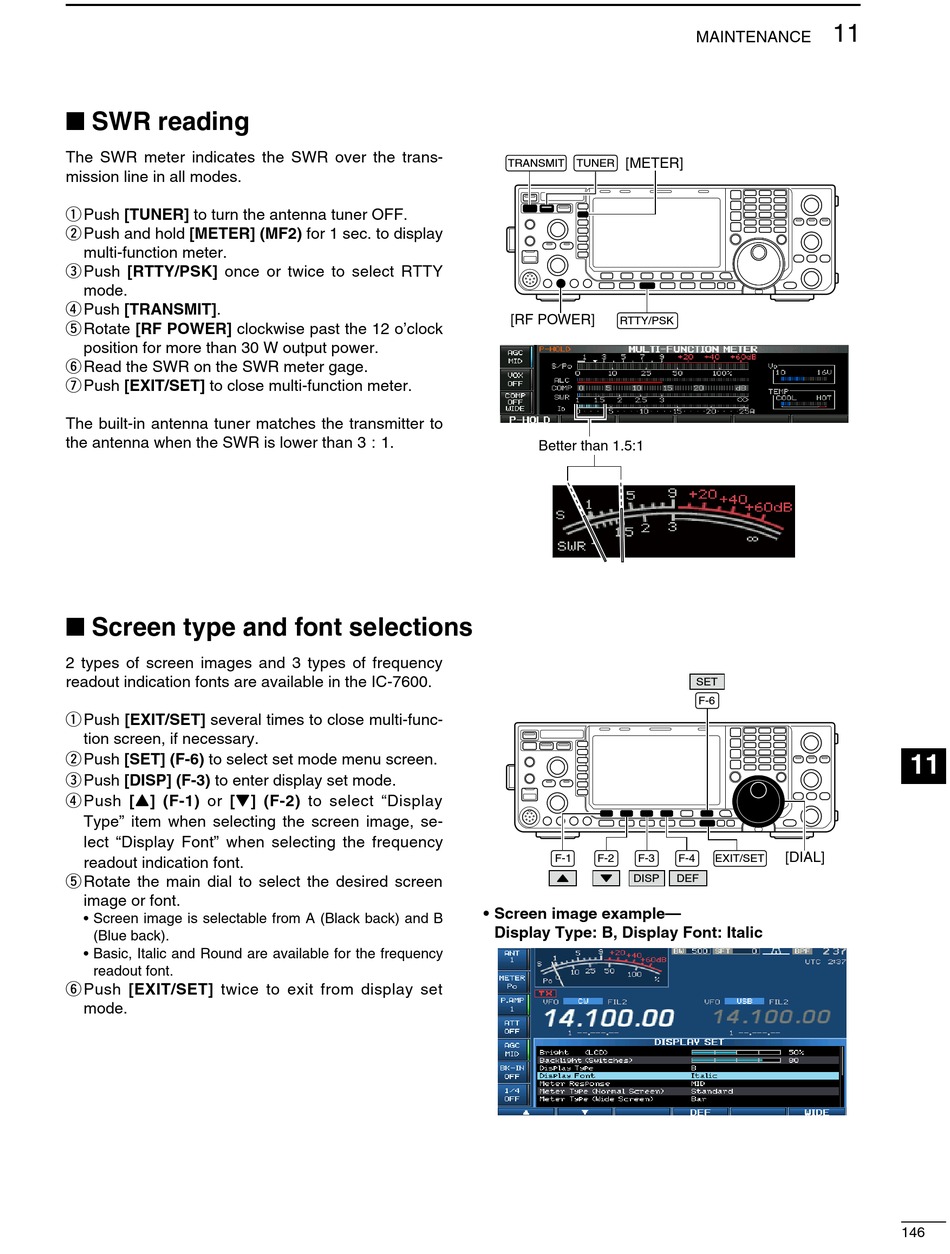

SWR reading

The SWR meter indicates the SWR over the trans-
mission line in all modes.
q Push [TUNER] to turn the antenna tuner OFF.
w Push and hold [METER] (MF2) for 1 sec. to display
multi-function meter.
e Push [RTTY/PSK] once or twice to select RTTY
mode.
r Push [TRANSMIT].
t Rotate [RF POWER] clockwise past the 12 o'clock
position for more than 30 W output power.
y Read the SWR on the SWR meter gage.
u Push [EXIT/SET] to close multi-function meter.
The built-in antenna tuner matches the transmitter to
the antenna when the SWR is lower than 3 : 1.

Screen type and font selections

2 types of screen images and 3 types of frequency
readout indication fonts are available in the IC-7600.
q Push [EXIT/SET] several times to close multi-func-
tion screen, if necessary.
w Push [SET] (F-6) to select set mode menu screen.
e Push [DISP] (F-3) to enter display set mode.
r Push [Y] (F-1) or [Z] (F-2) to select "Display
Type" item when selecting the screen image, se-
lect "Display Font" when selecting the frequency
readout indication font.
t Rotate the main dial to select the desired screen
image or font.
• Screen image is selectable from A (Black back) and B
(Blue back).
• Basic, Italic and Round are available for the frequency
readout font.
y Push [EXIT/SET] twice to exit from display set
mode.
[METER]
TRANSMIT TUNER
[RF POWER]
RTTY/PSK
Better than 1.5:1
F-1 F-2 F-3
DISP
• Screen image example—
Display Type: B, Display Font: Italic
11
