Connecting AC Power to a QFX5200

Copyright © 2017, Juniper Networks, Inc.
Secure the provided protective earthing terminal bracket through the QFX5200
1.
mounting bracket to the chassis with the nut provided. The posts on the protective
earthing terminal bracket should point to the left. See

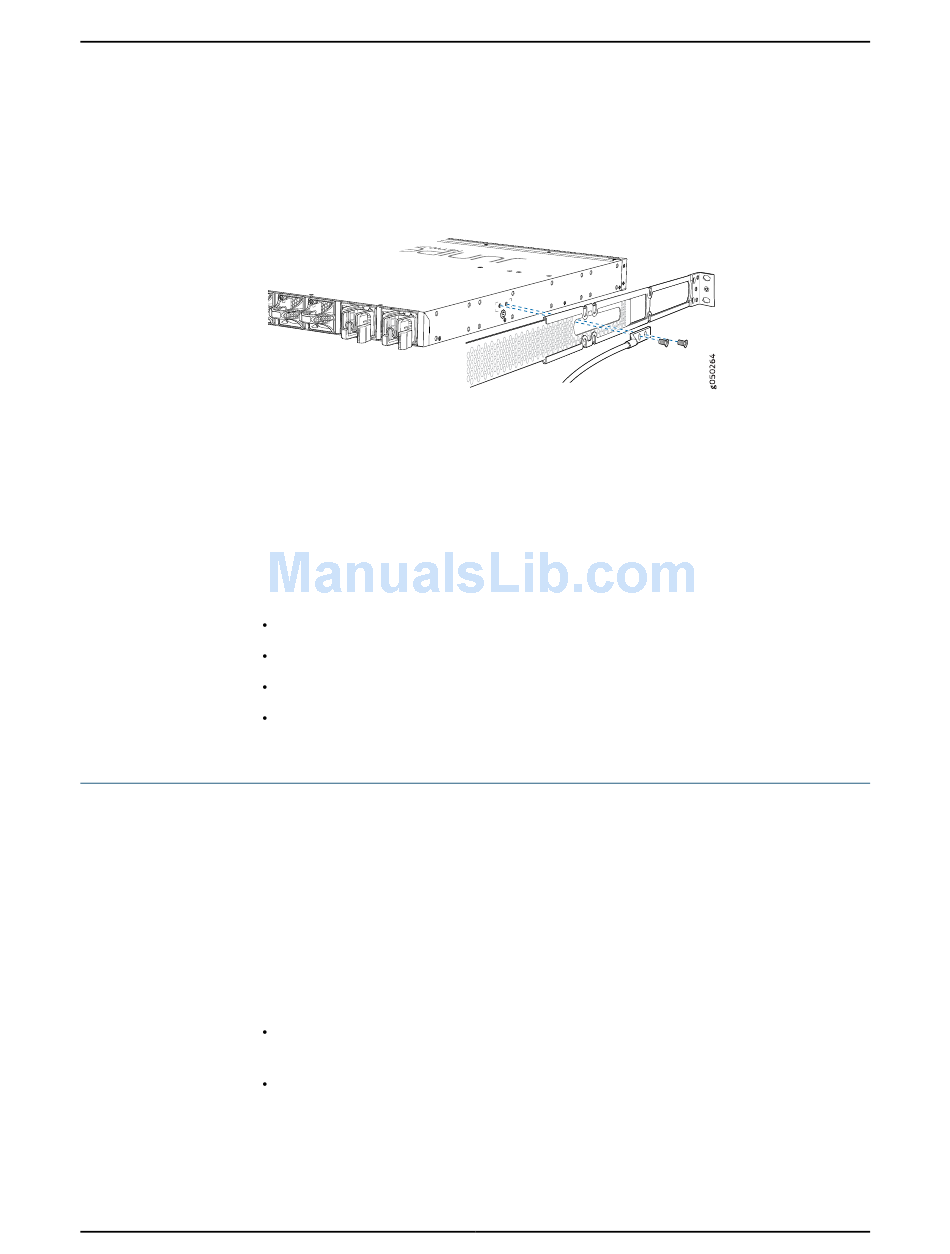

Figure 21: Connecting a Grounding Cable to a QFX5200-32C

Connect one end of the grounding cable to a proper earth ground, such as the rack in
2.
which the switch is mounted.
Place the grounding lug attached to the grounding cable over the protective earthing
3.
terminal on the protective earthing terminal bracket.
Secure the grounding lug to the protective earthing terminal with two nuts.
4.
Dress the grounding cable and ensure that it does not touch or block access to other
5.
device components and that it does not drape where people could trip over it.
General Safety Guidelines and Warnings on page 127
Grounded Equipment Warning on page 142
Connecting AC Power to a QFX5200 on page 65
Connecting DC Power to a QFX5200 on page 68
The QFX5200 is shipped from the factory with two power supplies. Each power supply
is a hot-removable and hot-insertable field-replaceable unit (FRU) when the second
power supply is installed and running. You can install replacement power supplies in the
two slots next to the fan modules without powering off the switch or disrupting the
switching function.
Ensure that you have a power cord appropriate for your geographical location available
to connect AC power to the switch.
Before you begin connecting AC power to the switch:
Ensure that you have taken the necessary precautions to prevent electrostatic discharge
(ESD) damage (see "Prevention of Electrostatic Discharge Damage" on page
Ensure that you have connected the switch chassis to earth ground.
Chapter 10: Connecting the Switch to Power
Figure 21 on page 65.
156).
65
