To remove an SFP, SFP+, XFP, or a QSFP+ transceiver:
4.
By using your fingers, pull open the ejector lever on the transceiver to unlock the
a.
transceiver.
CAUTION:
the ejector lever completely until you hear it click. This prevents damage
to the transceiver.
Grasp the transceiver ejector lever and gently slide the transceiver approximately
b.
0.5 in. (1.3 cm) straight out of the port.
CAUTION:
transceiver, do not touch the connector pins at the end of the
transceiver.
To remove a CFP transceiver:
Loosen the screws on the transceiver by using your fingers.
a.
Grasp the screws on the transceiver and gently slide the transceiver approximately
b.
0.5 in. (1.3 cm) straight out of the port.
CAUTION:
transceiver, do not touch the connector pins at the end of the
transceiver.

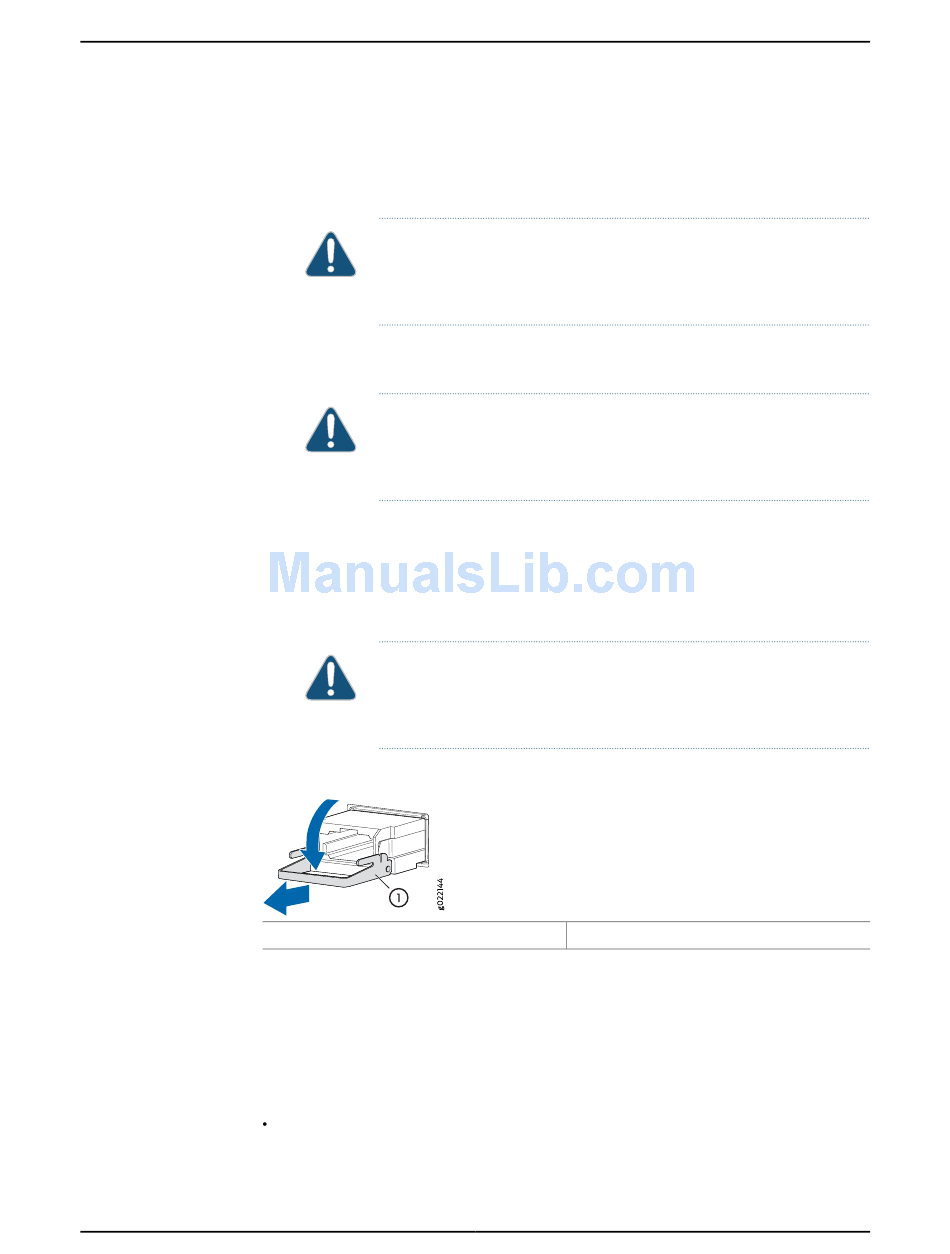

Figure 34: Removing an SFP, SFP+, XFP, or a QSFP+ Transceiver

1— Ejector lever
By using your fingers, grasp the body of the transceiver and pull it straight out of the
5.
port.
Place the transceiver in the antistatic bag or on the antistatic mat placed on a flat,
6.
stable surface.
Place the dust cover over the empty port.
7.
Installing a Transceiver on page 92
