Copyright © 2017, Juniper Networks, Inc.

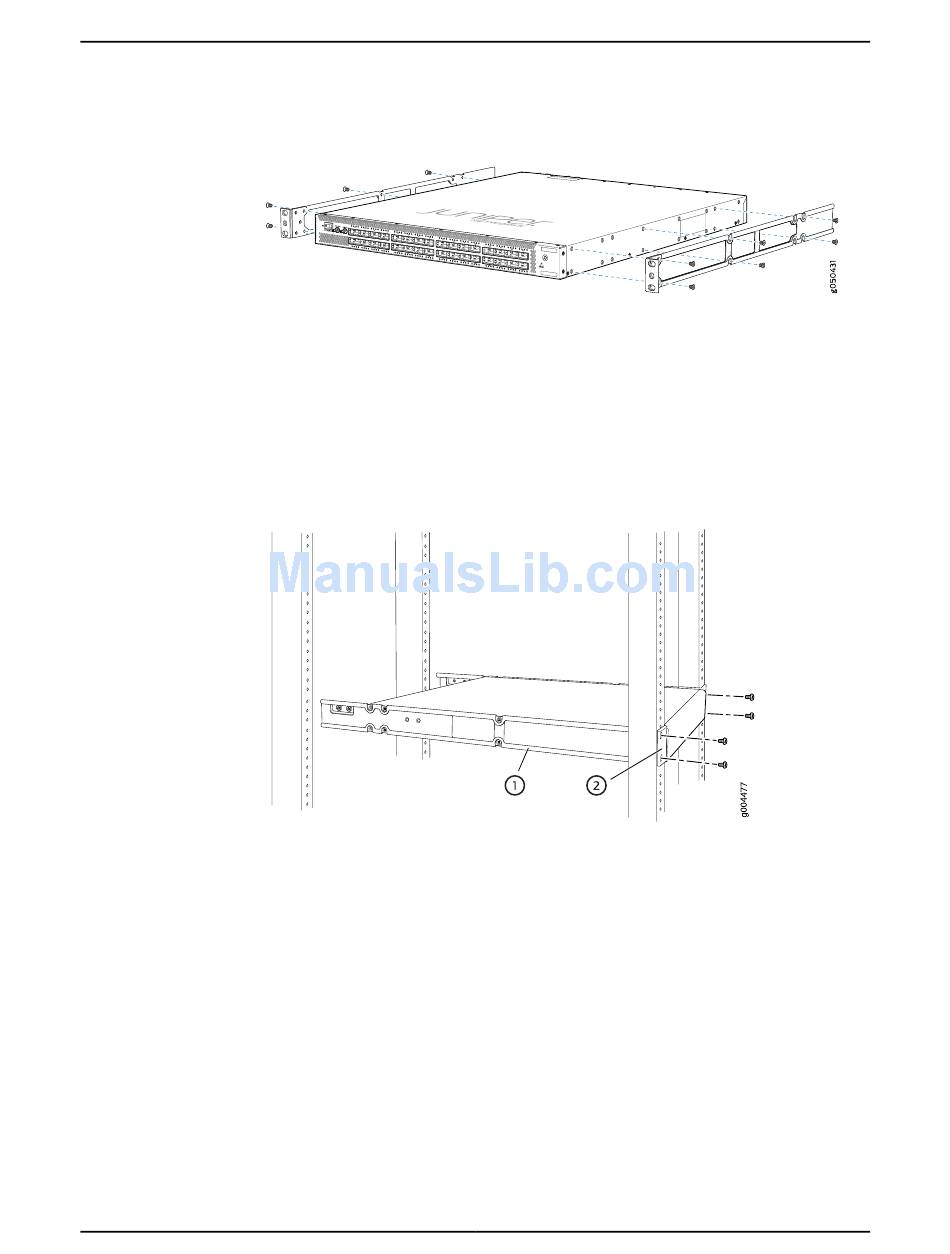

Figure 18: Attaching Mounting Rails to the QFX5200-32C

Attach the mounting rail to the switch using the mounting screws. Tighten the screws.
4.
Repeats steps 3 and 4 on the opposite side of the switch.
5.
Have one person grasp both sides of the switch, lift it, and position it in the rack so
6.
that the front bracket is aligned with the rack holes.
Have a second person secure the front of the switch to the rack using four mounting
7.
screws (and cage nuts and washers if your rack requires them.) Tighten the screws..
See Figure 19 on page 61

Figure 19: Attach QFX5200-32C Switch to Rack

Continue to support the switch while sliding the rear mounting-blades into the channel
8.
of the side mounting-rails and securing the blades to the rack. Use the four mounting
screws (and cage nuts and washers if your rack requires them) to attach each blade
to the rack. Tighten the screws. See
Chapter 9: Unpacking and Mounting the Switch
.
Figure 20 on page 62.
61
