Understanding the Software Configurations

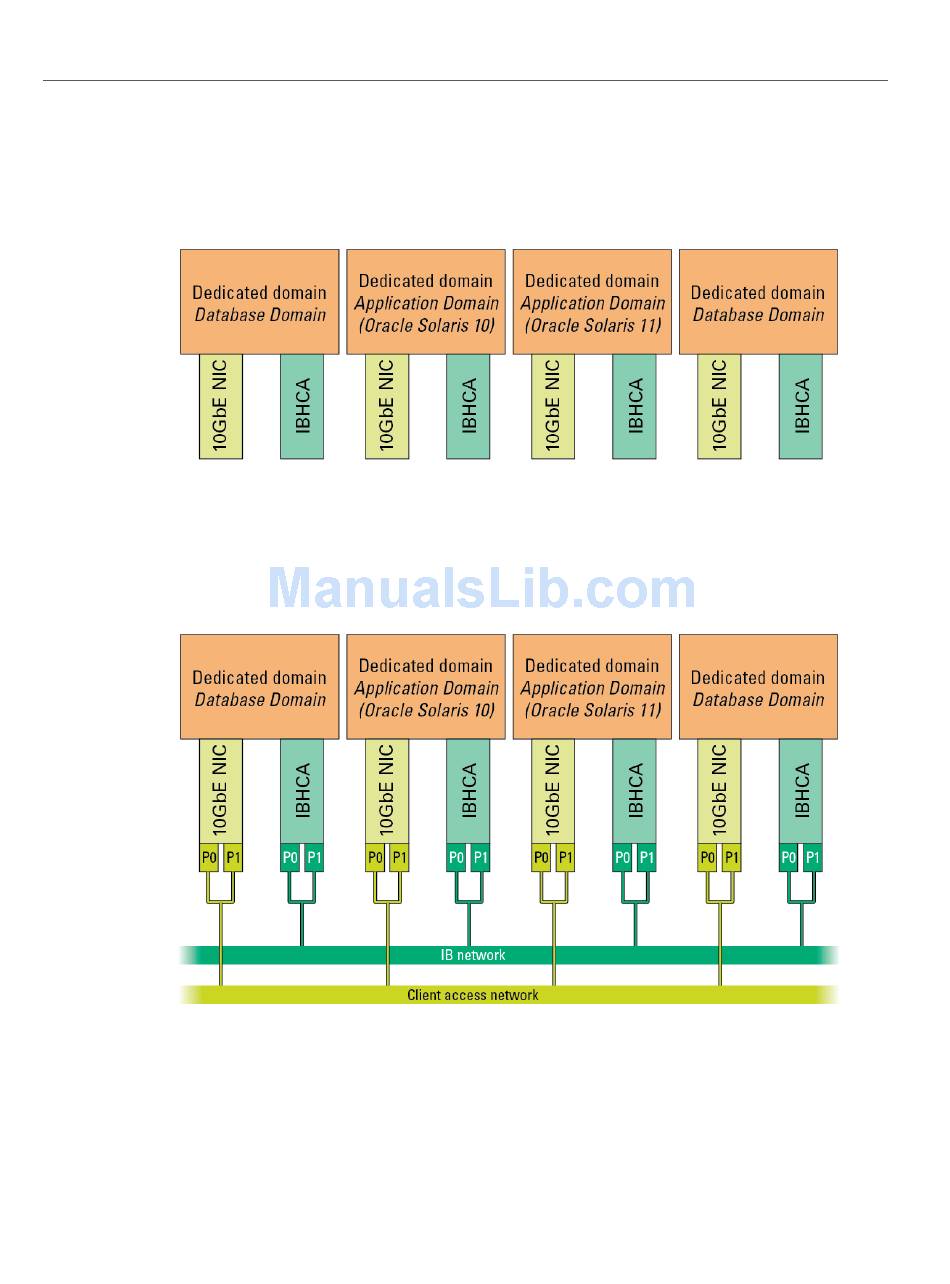

Channel cards, if those are installed in the card slots). The following graphic shows this concept
on a SuperCluster with four domains.
With dedicated domains, connections to the 10GbE client access network go through the
physical ports on each 10GbE NIC, and connections to the IB network go through the physical
ports on each IB HCA, as shown in the following graphic.
With dedicated domains, the domain configuration for a SuperCluster (the number of
domains and the SuperCluster-specific types assigned to each) are set at the time of the initial
installation, and can only be changed by an Oracle representative.
