Understanding the Hardware Components and Connections
See
"Card Locations (SPARC T5-8 Servers)" on page 29
for more information on the
location of the InfiniBand HCAs.
The two ports in each InfiniBand HCA (ports 1 and 2) connect to a different leaf switch to
provide redundancy between the SPARC T5-8 servers and the leaf switches. The following
figures show how redundancy is achieved with the InfiniBand connections between the SPARC
T5-8 servers and the leaf switches in the Full Rack and Half Rack configurations.

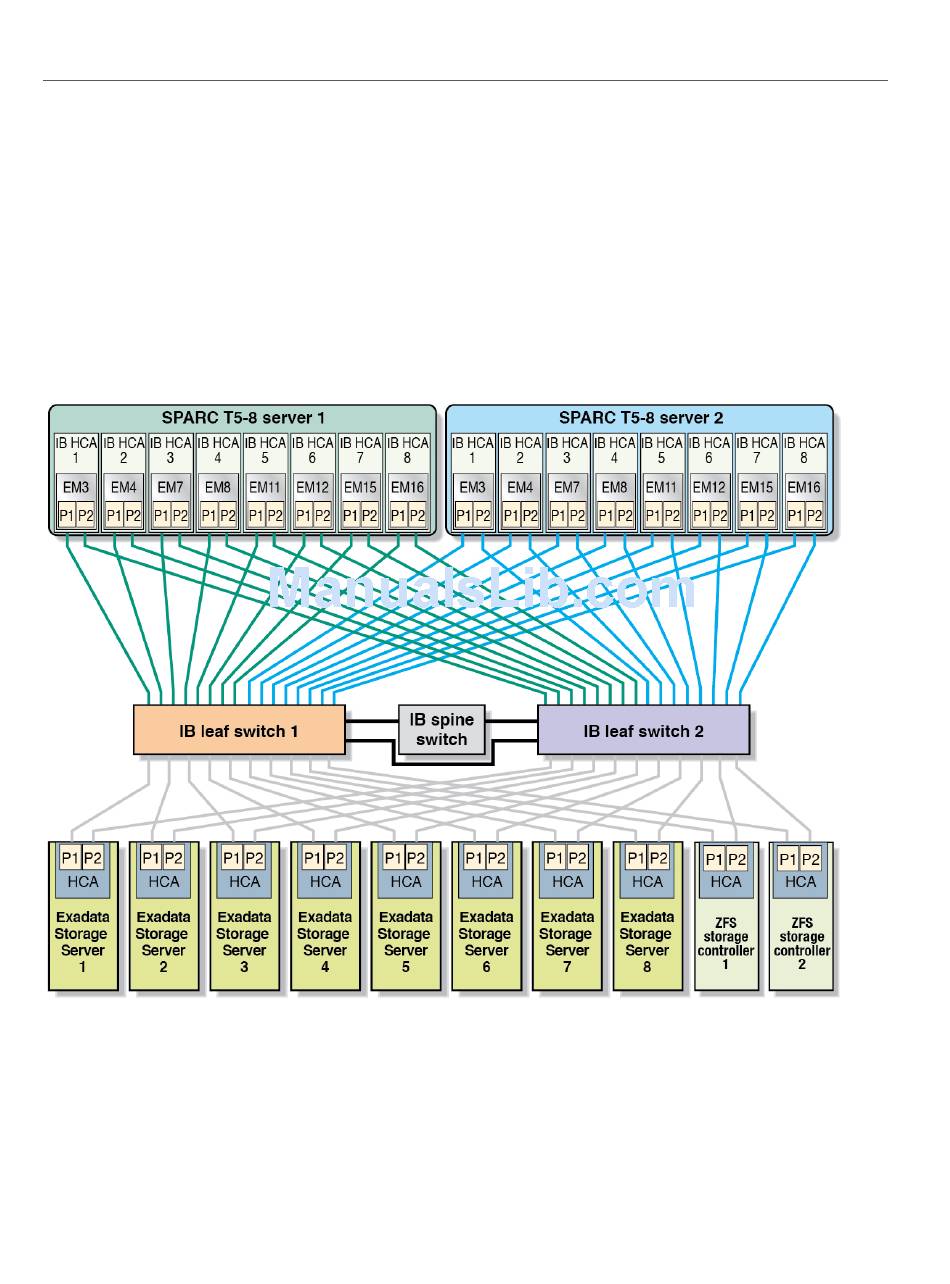

FIGURE 8
InfiniBand Connections for SPARC T5-8 Servers, Full Rack
Understanding the System
33
