Understanding Expansion Rack Internal Cabling

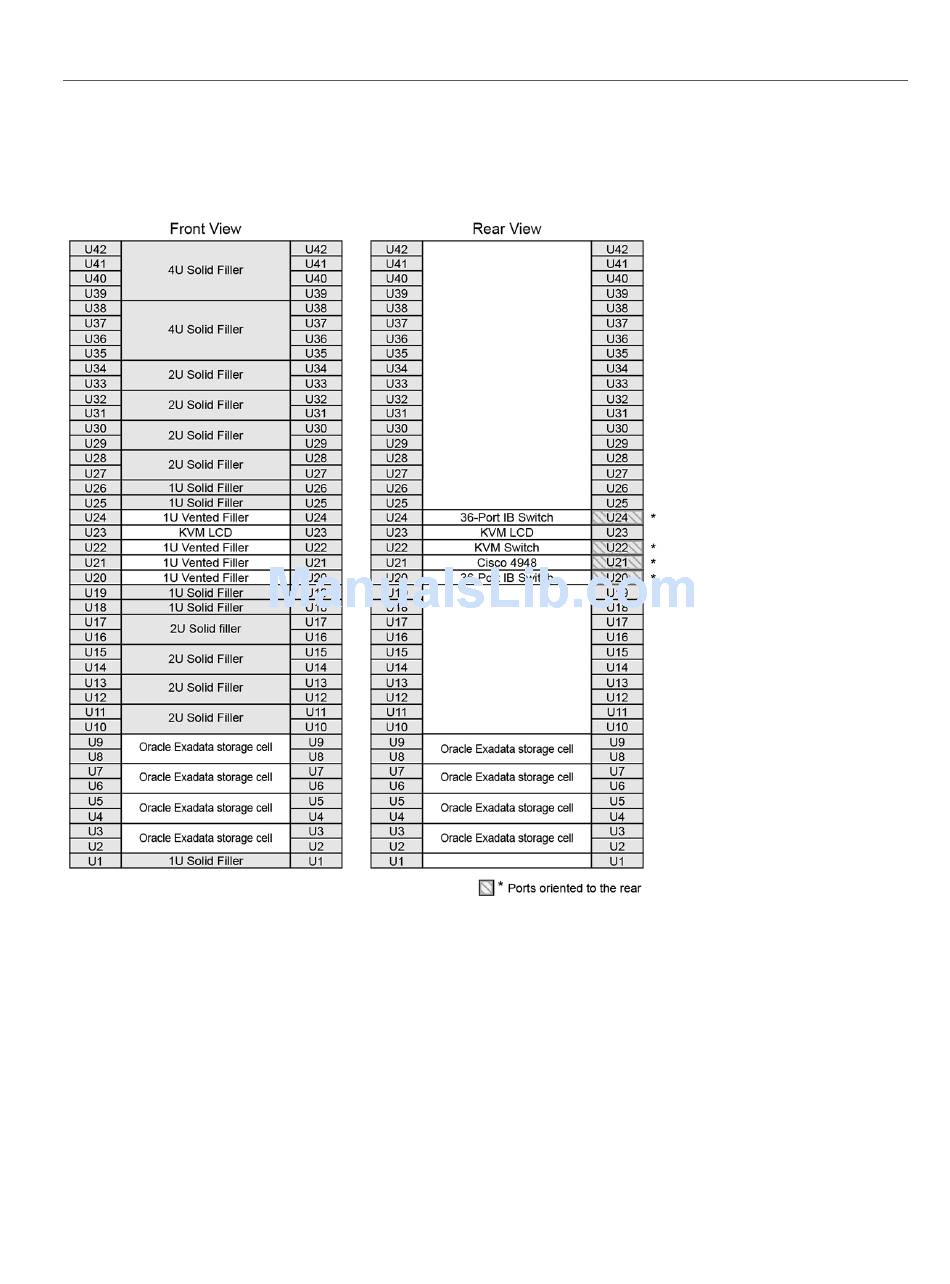

Expansion Rack Layout (Quarter Rack)
FIGURE 35
Oracle ILOM Cabling
This topic contains tables that list the Oracle ILOM network cabling. The Oracle ILOM port on
the servers is labeled NET MGT, and connects to the Gigabit Ethernet port located in rack unit
21 on the expansion racks.
304
Oracle SuperCluster T5-8 Owner's Guide • May 2016
