Understanding the Hardware Components and Connections
InfiniBand Connections for SPARC T5-8 Servers, Half Rack

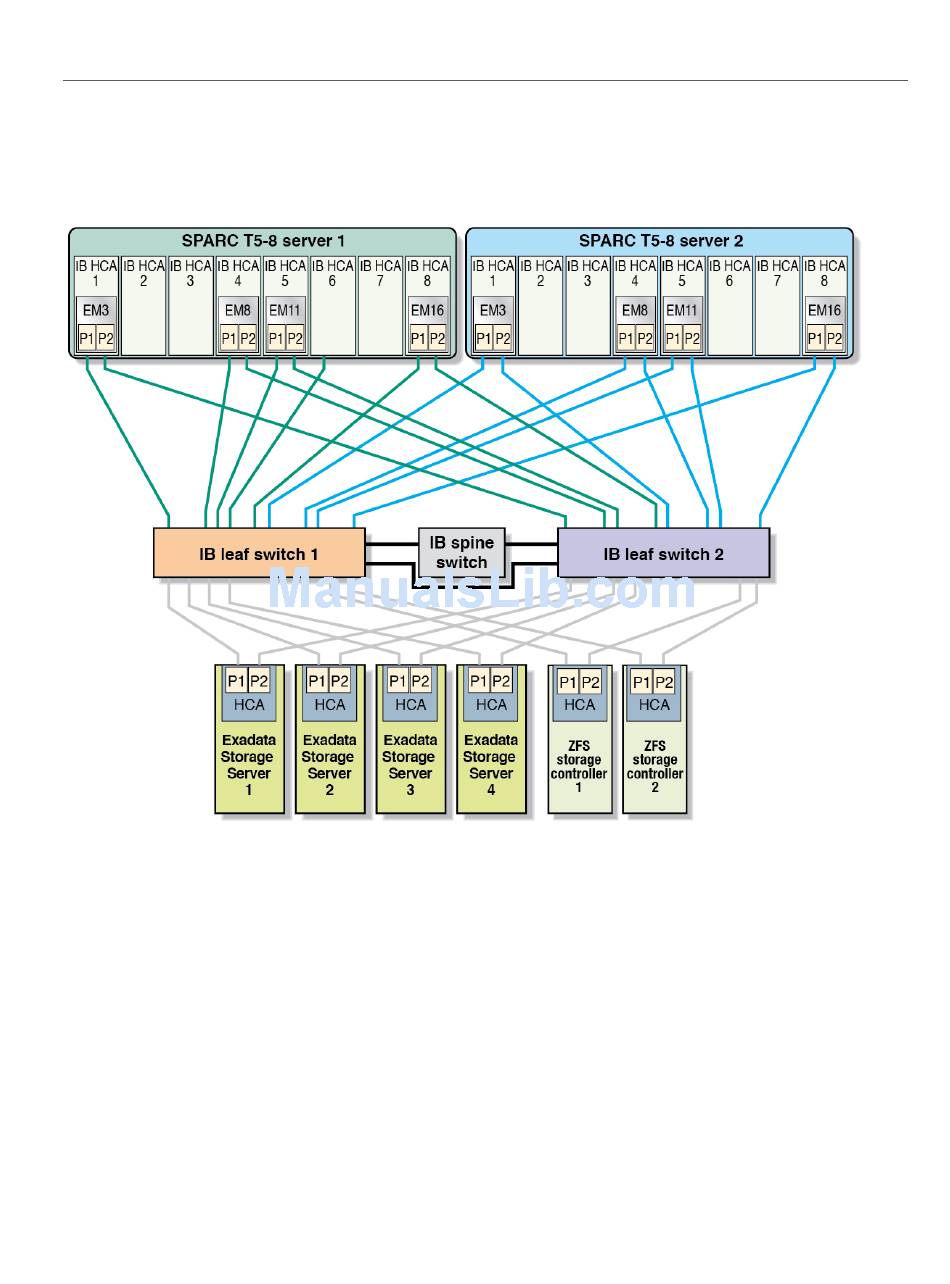

FIGURE 9
Note that only the physical connections for the InfiniBand private network are described in
this section. Once the logical domains are created for each SPARC T5-8 server, the InfiniBand
private network will be configured differently depending on the type of domain created on
the SPARC T5-8 servers. The number of IP addresses needed for the InfiniBand network will
also vary, depending on the type of domains created on each SPARC T5-8 server. For more
information, see
34 Oracle SuperCluster T5-8 Owner's Guide • May 2016
"Understanding the Software Configurations" on page 46.
