Understanding the Hardware Components and Connections

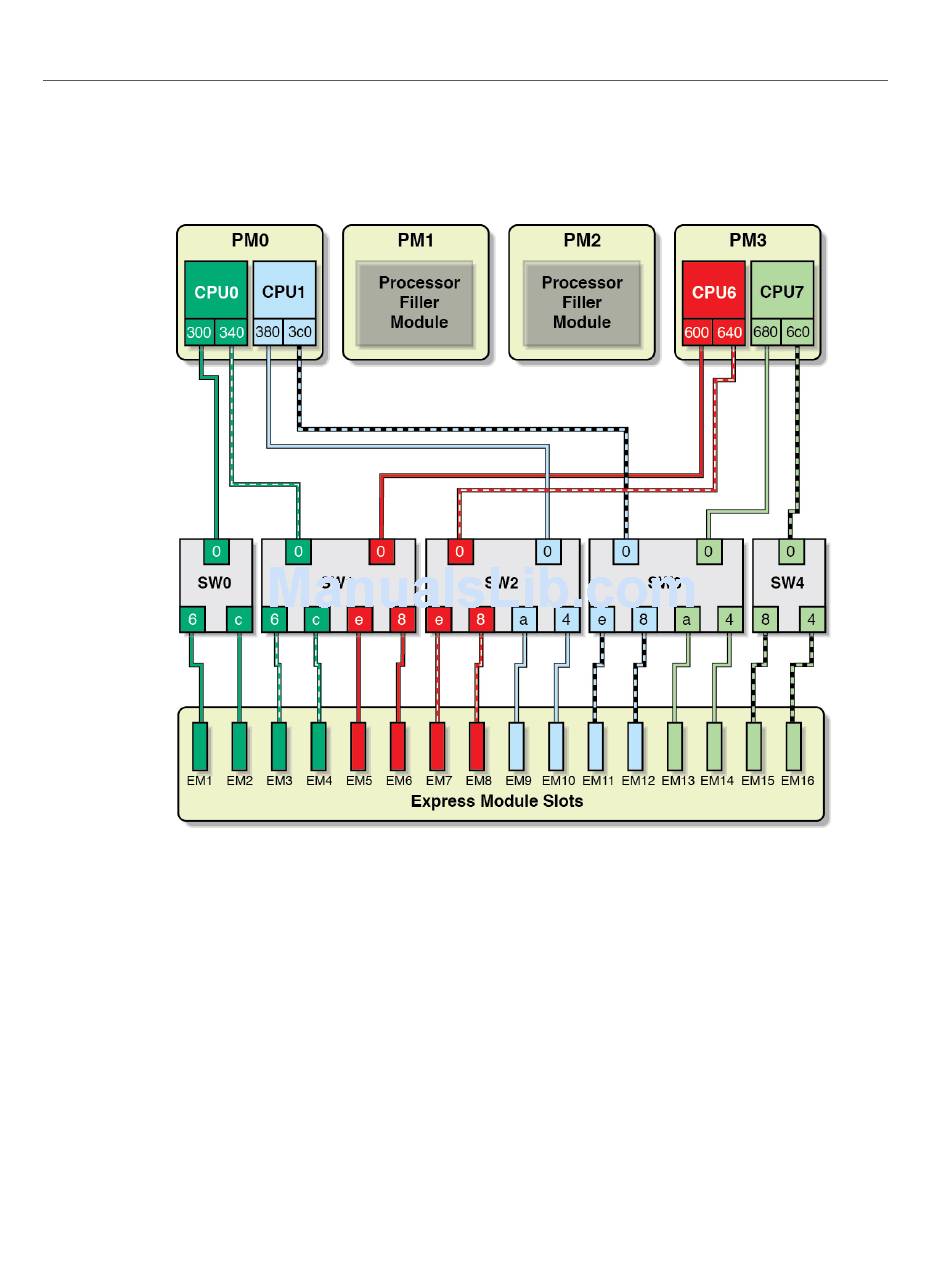

Topology for the Half Rack Version of Oracle SuperCluster T5-8
FIGURE 4
Card Locations (SPARC T5-8 Servers)
The following figures show the cards that will be used for the physical connections for the
SPARC T5-8 server in the Full Rack and Half Rack versions of Oracle SuperCluster T5-8.
Understanding the System
29
