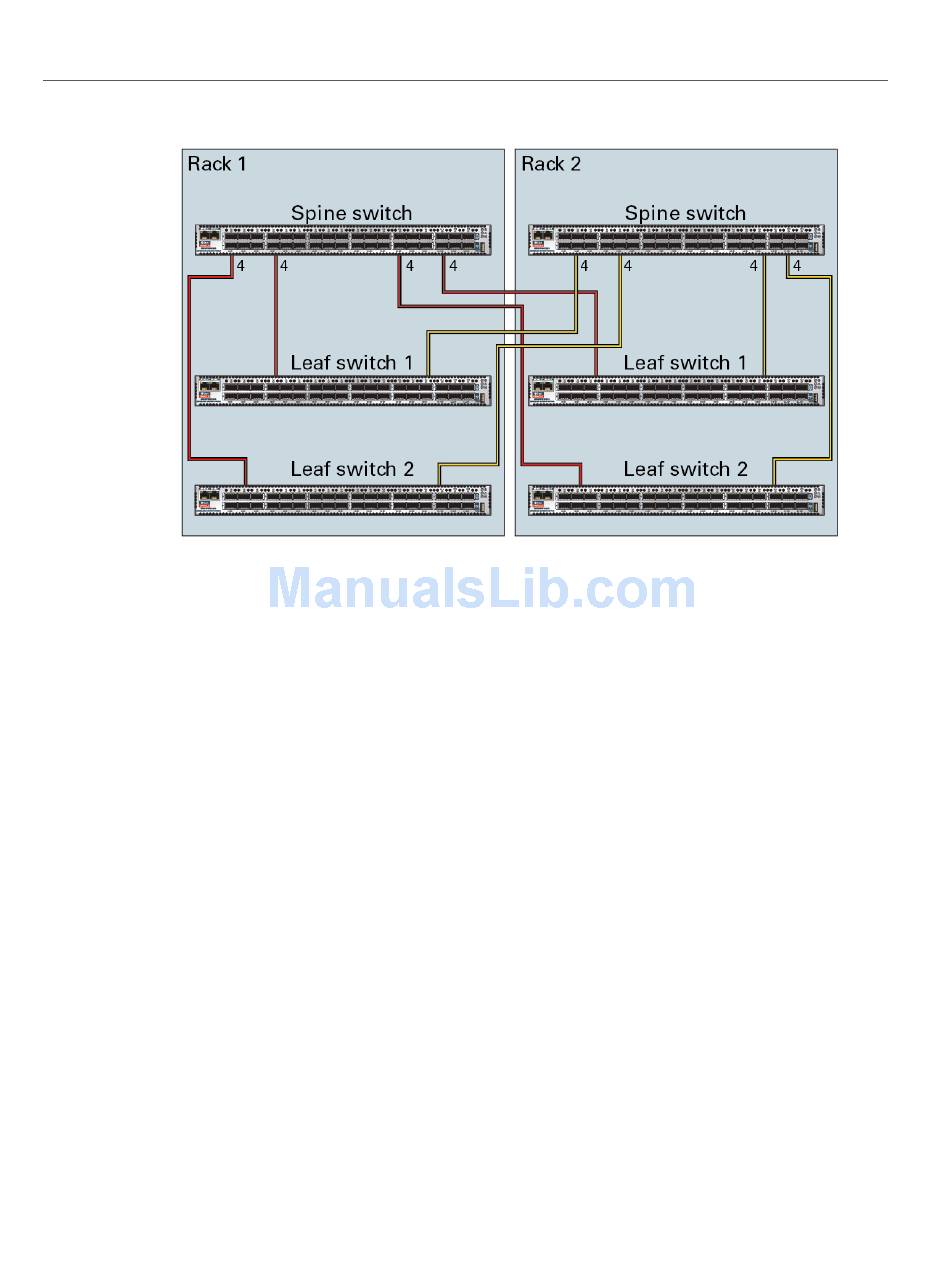

As shown in the preceding graphic, each leaf switch in rack 1 connects to the following
switches:
Four connections to its internal spine switch
■
Four connections to the spine switch in rack 2
■
The spine switch in rack 1 connects to the following switches:
Eight connections to both internal leaf switches
■
Eight connections to both leaf switches in rack 2
■
The following terms are used when referring to the two racks:
Rack 1 (R1) refers to Oracle SuperCluster T5-8
■
Rack 2 (R2) refers to the Oracle Exadata Storage Expansion Rack
■
In addition, because the InfiniBand switches are physically located in different rack units in the
two racks, the following terms are used when referring to the InfiniBand switches:
InfiniBand 1 (IB1) refers to the spine switch, located in U1 in both racks
■
InfiniBand 2 (IB2) refers to the first leaf switch, located in:
■
U26 in Oracle SuperCluster T5-8
■
U20 in the Oracle Exadata Storage Expansion Rack
■
InfiniBand 3 (IB3) refers to the second leaf switch, located in:
■
