Understanding the Hardware Components and Connections

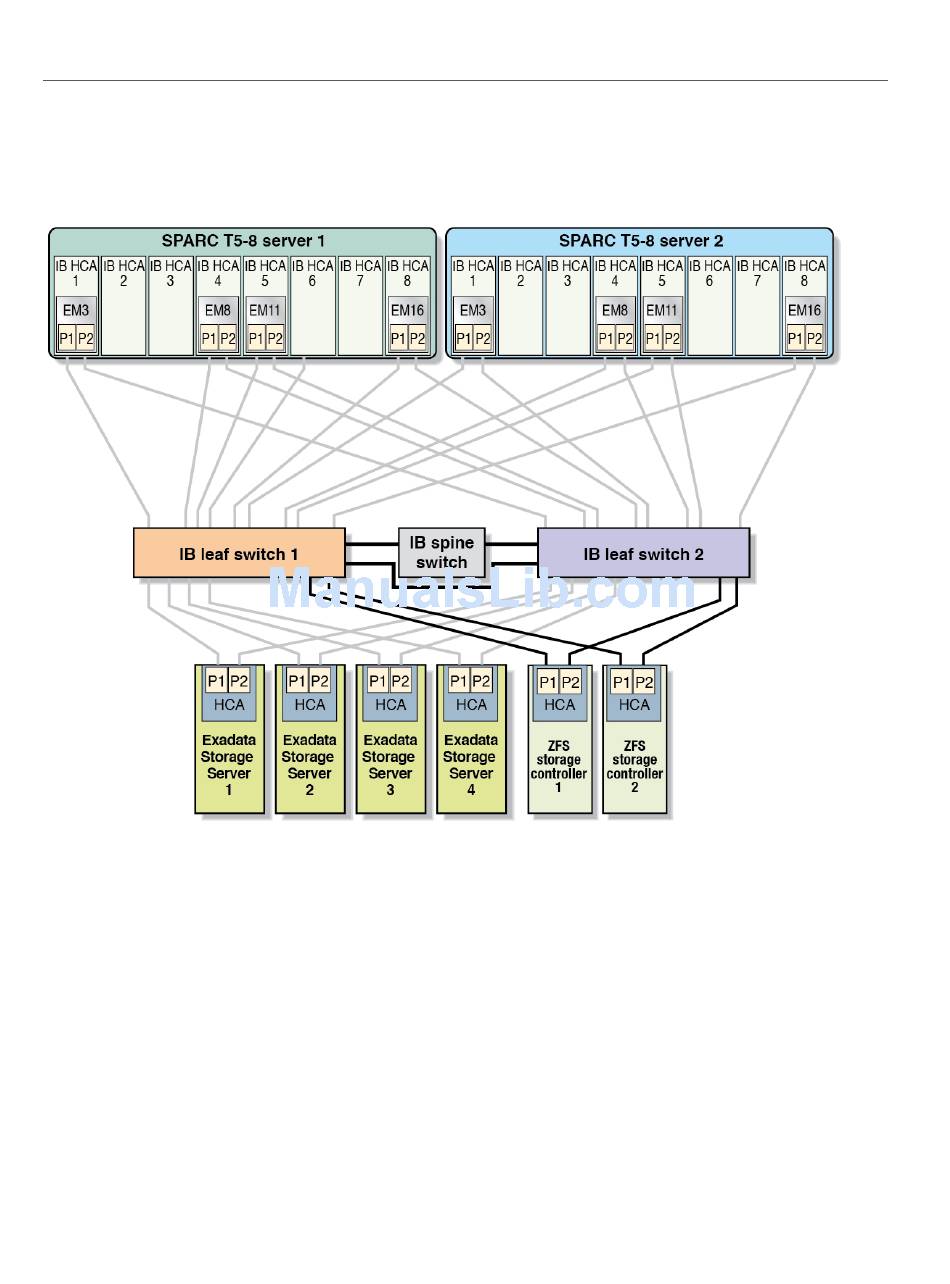

InfiniBand Connections for ZFS Storage Controllers, Half Rack
FIGURE 13
Oracle ILOM Management Network Physical Connections (ZFS Storage
Appliance)
The ZFS storage appliance connects to the Oracle ILOM management network through
the two ZFS storage controllers. Each storage controller connects to the Oracle ILOM
management network through the NET0 port at the rear of each storage controller using
sideband management. One IP address is required for Oracle ILOM management for each
storage controller.
