User Interface

4 User Interface

4.1 Local Control Panel

The LCP is the combined display and keypad. The LCP can
be attached to the display connector outside the unit
(without opening the enclosure) via the LCP cable/plug.
4 4
The LCP is the user interface to the frequency converter.
The LCP has several user functions.
•
Start, stop, and control speed when in local
control
•
Display operational data, status, warnings, and
cautions
•
Programming frequency converter functions
•
Manually reset the frequency converter after a
fault when auto-reset is inactive
An optional numeric LCP is also available. The numeric LCP
operates in a manner similar to the LCP. See the VLT
Decentral Drive FCD 302 Programming Guide for details on
use of the numeric LCP.
32
®
VLT Decentral Drive FCD 302

4.1.1 LCP Layout

The LCP is divided into 4 functional groups (see
Illustration 4.1).
®
a
b
c
d

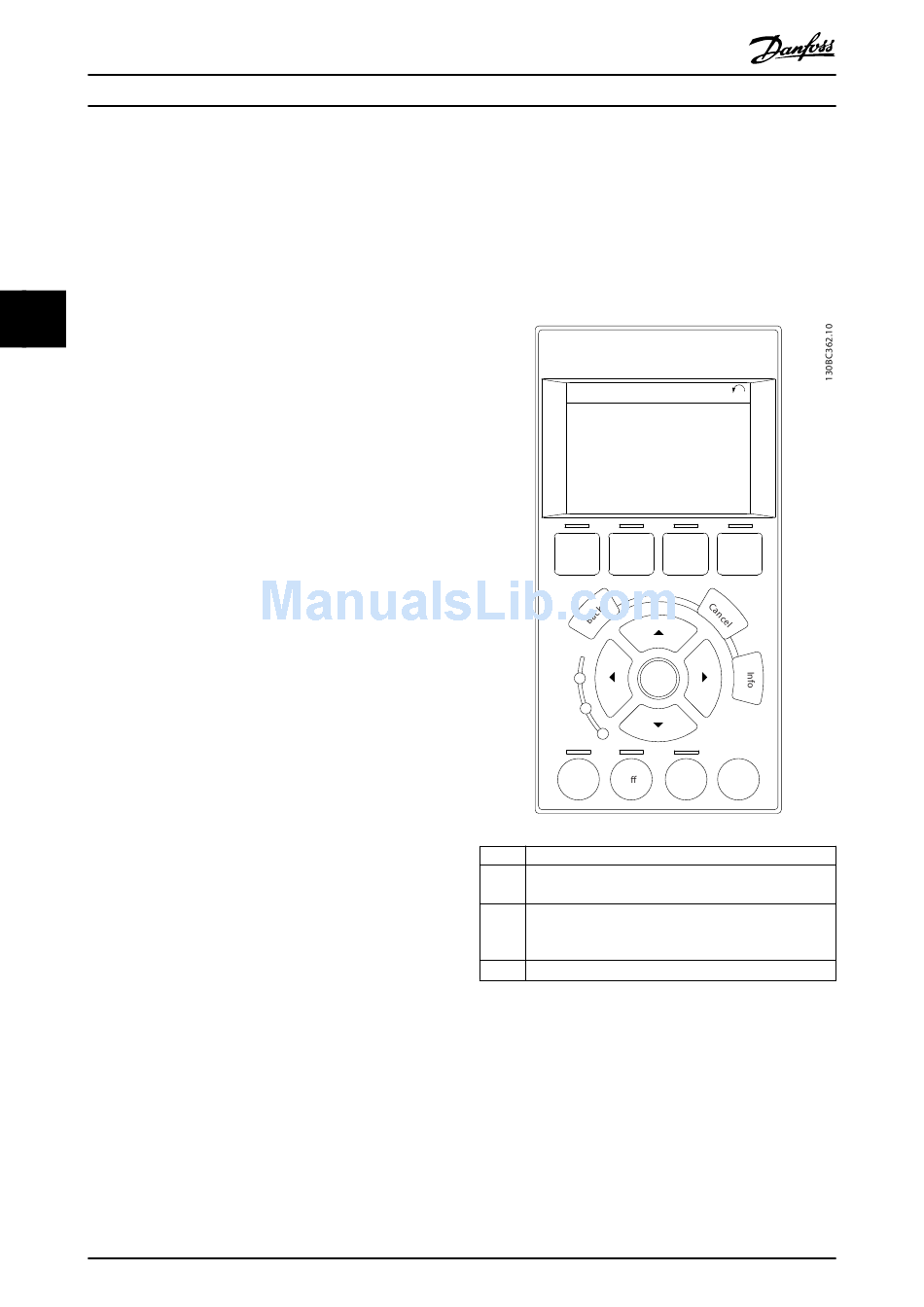

Illustration 4.1 LCP

4.1.2 Setting LCP Display Values

The display area is activated when the frequency converter
receives power from mains voltage, or an external 24 V
supply.
The information displayed on the LCP can be customized
for user application.
Danfoss A/S © 05/2016 All rights reserved.
Status
1234rpm
1.0 A
43,5Hz
a
Run OK
Quick
Main
b
Status
Menu Menu
c On OK
Warn.
Alarm
Auto
Hand
d
O
on
on
Display area.
Display menu keys for changing the display to show
status options, programming, or error message history.
Navigation keys for programming functions, moving the
display cursor, and speed control in local operation. The
status indicator lights are also in this group.
Operational mode keys and reset.
1(1)
43,5Hz
Alarm
Log
Reset
