User Interface

4 User Interface

4.1 Local Control Panel

The local control panel (LCP) is the combined display and
keypad on the front of the unit. The LCP is the user
interface to the adjustable frequency drive.
The LCP has several user functions.
•
Start, stop, and control speed when in local
control
•
Display operational data, status, warnings and
cautions
•
Programming adjustable frequency drive
functions
•
Manually reset the adjustable frequency drive
after a fault when auto-reset is inactive
An optional numeric LCP (NLCP) is also available. The NLCP
operates in a manner similar to the LCP. See the
Programming Guide for details on use of the NLCP.
®
VLT HVAC Drive D-Frame
Instruction Manual

4.1.1 LCP Layout

The LCP is divided into four functional groups (see
Figure 4.1).

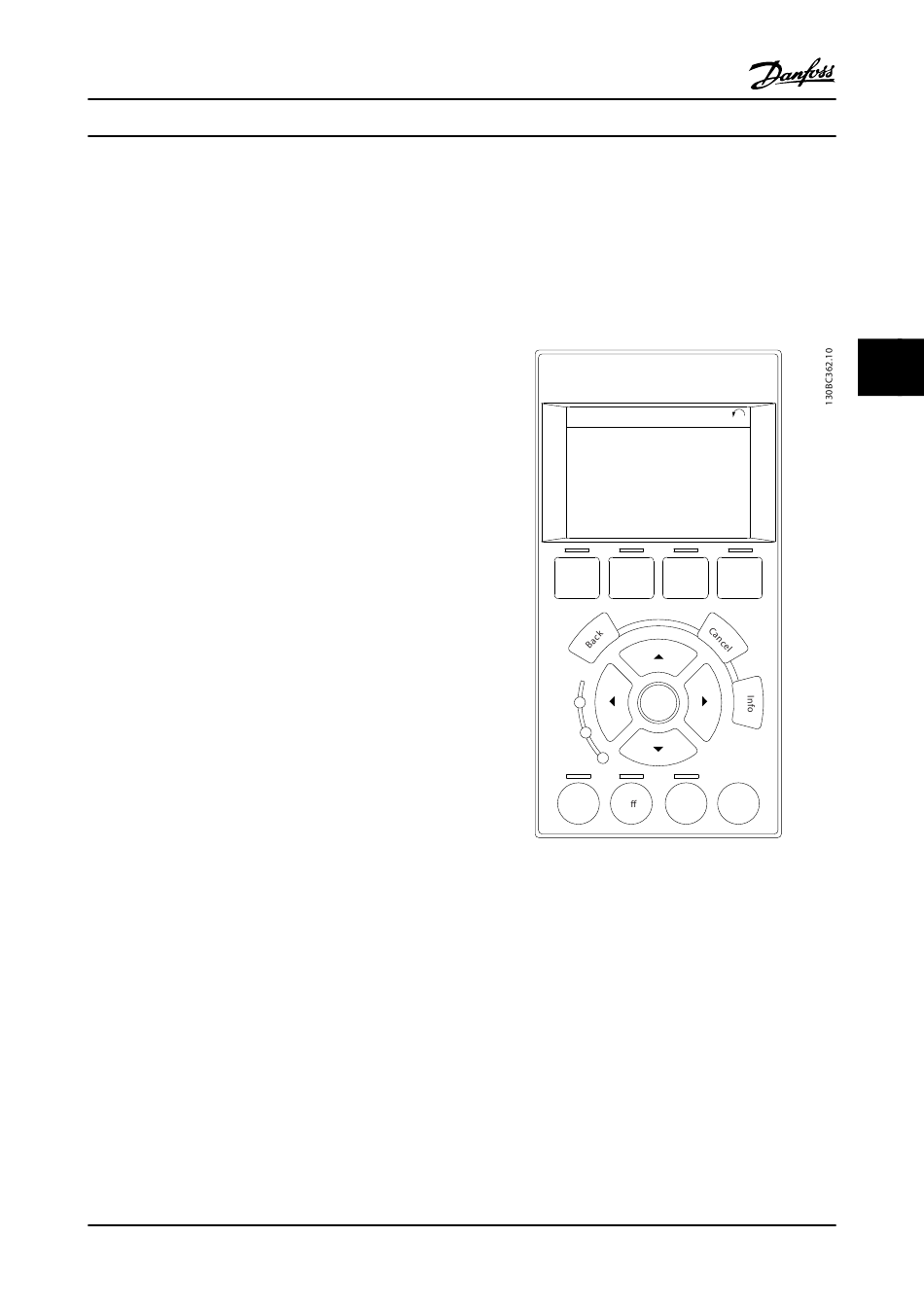

Figure 4.1 LCP
®
MG16D222 - VLT is a registered Danfoss trademark
Status
1234rpm
1.0 A
43,5Hz
a
Run OK
Quick
Main
b
Status
Menu
Menu
c On OK
Warn.
Alarm
Hand
d O
on
a. Display area.
b. Display menu keys for changing the display to
show status options, programming, or error
message history.
c. Navigation keys for programming functions,
moving the display cursor, and speed control in
local operation. Also included are the status
indicator lights.
d. Operational mode keys and reset.
1(1)
43,5Hz
Alarm
Log
Auto
Reset
on
